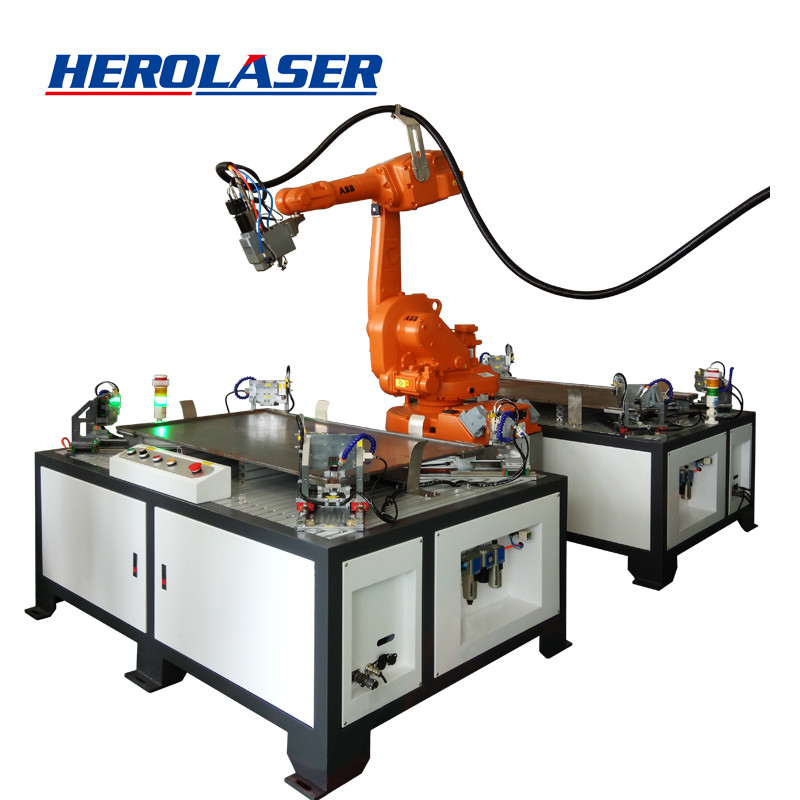

6 Axis Robotic Fiber Laser Welding Machine With CCD Positioning
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Robot | ABB1600 Repeated Position Accuracy 0.05mm | Output Power | 500W/1000W/1500W/2000W/3000W |
|---|---|---|---|
| Wavelength | 1070nm | Laser Source | Fiber Laser |
| Cooling | Water Cooling | Wobble Welding Head | Herolaser |
| Work Mode | Continuous/modulation | Power Consumption | 5kw~12kw |
| High Light | CCD Positioning Fiber Laser Welding Machine,6 Axis Robotic Laser Welding Machine,CCD Positioning Fiber Laser Welder |
||
Product Description
6 Axis Automatic Industrial Welding Robot Arm Robotic Fiber Laser Welding Machine
Product introduction:
The robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating and positioning system, motion system, rotation system, swing laser welding joint, cooling system and so on. Laser generator adopts imported fiber laser, laser pulse waveform can be edited arbitrarily, high stability of energy output.
Laser welding joints adopt Herolaser laser welding joints independently developed, with high welding stability and flexibility, can be 360 degrees of rotation and swing welding.
The cooling system of fiber laser welding machine consists of temperature measuring device, water circulation, radiator and deionized resin. The temperature measuring device detects the water temperature in the water tank in real time to judge whether the water temperature is too high. If the temperature exceeds the upper limit, the system will automatically shut down the laser to avoid damaging the laser. After the machine is opened, the water cycle and the radiator form heat exchange with the outside world, and quickly take away the heat generated when the laser works, to ensure the normal operation of the laser. The integrated design of cooling system and whole machine makes the system more concise and occupies a small area.
Wobble double wedge swing welding joint technical characteristics:
Herolaser’s patented technology is the first in China. In laser welding head WOBBLE configuration module, its unique way of wedge vibration makes weld widened, wide range of laser welding application, for more master pieces, weld wider artifacts can realize high precision laser welding, and welding quality effect is better than common welding head, weld surface is relatively smooth, beautiful, good welding quality.
- The allowable range of weld width is expanded
- Extremely high process repeatability/process stability
- Better weld formability
- High quality spot welding
- Lower requirements for laser power
- Excellent welding ability of aluminum alloy
Product parameters:
| Model No. | 500W/1000W/1500W/2000W/3000W |
| Wavelength | 1070nm |
| Work mode | Continuous/modulation |
| Control cabinet | Hherolaser laser control system |
| Positioning | CCD and red light position |
| Cooling | Water cooling |
| Power consumption | 5kw~12kw |
| Cooling system | Water cooling |
| Power supply | 220V±10%, 50Hz/60Hz AC |
Main Configuration:
| Item | Spec. | Qty |
| Robot |
ABB1600 repeated position accuracy 0.05mm |
1 set |
| Fiber laser source | Max | 1 set |
| Wobble welding head | Herolaser | 1 set |
| Control cabinet | Herolaser | 1 set |
| Software | Herolaser | 1 set |
| CCD observation system | Welding purpose | 1 set |
| PLC | FX-3U-48MT (MITSUBISHI) | 1 set |
Applicable Industry:
It is used for precision welding of hardware, such as hardware appliances , kitchen and bathroom industry (welding of faucet and round pipe, welding of kitchen sheet metal parts, washing machine inner cylinder, etc),and precision hardware welding of electronic industry (mobile phone, flat plate, automobile,etc).

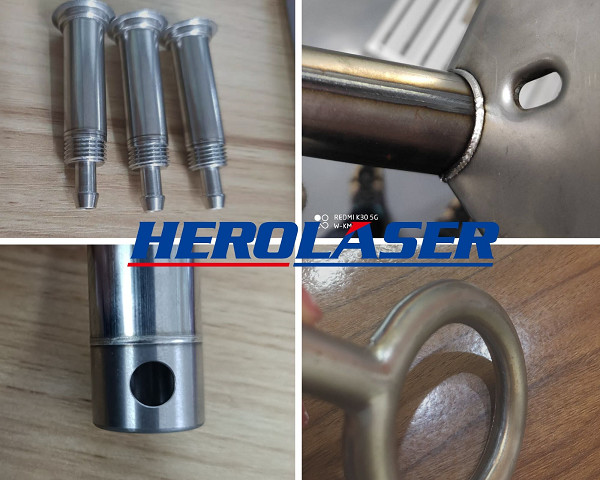

Samples for reference:
F&Q:
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
