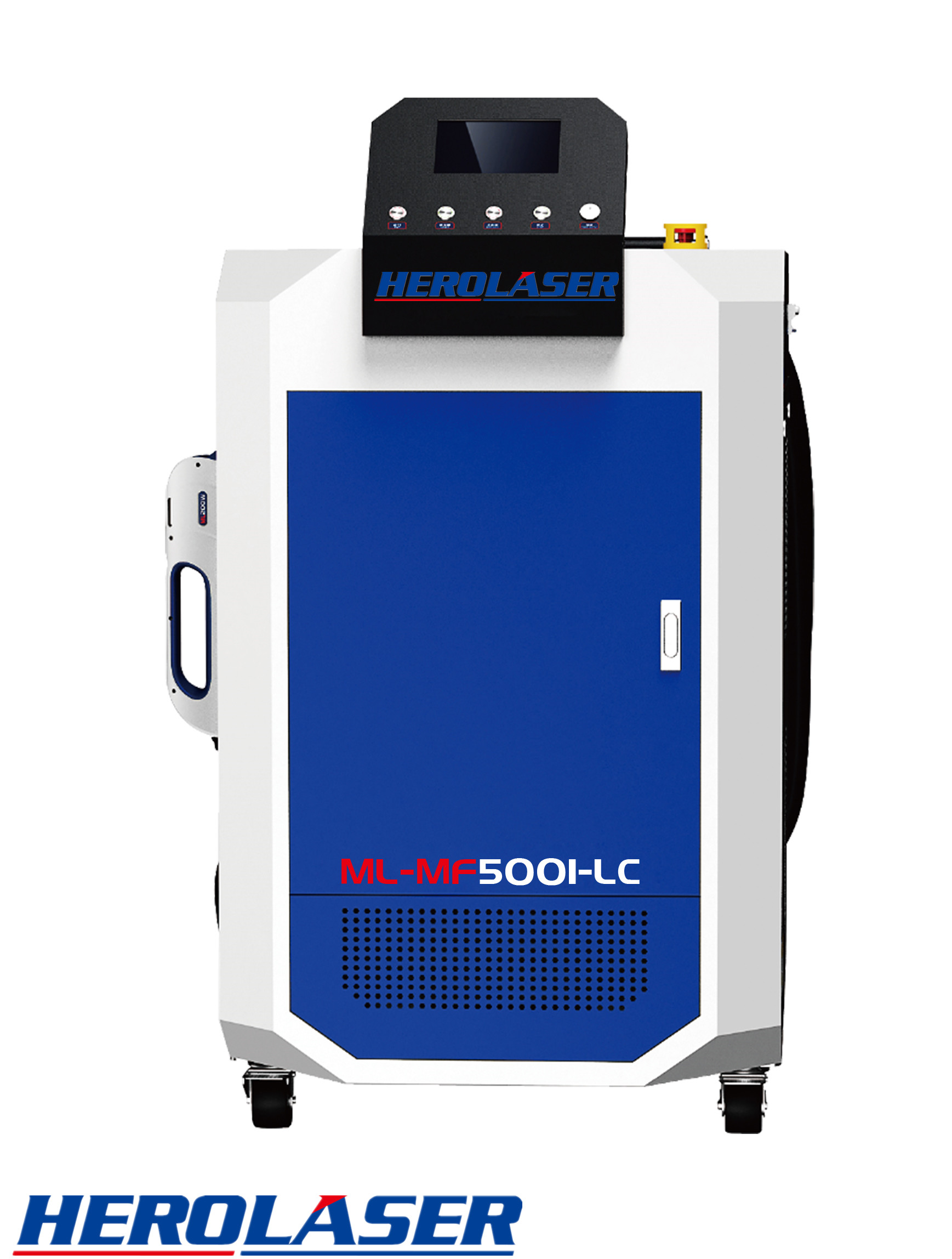

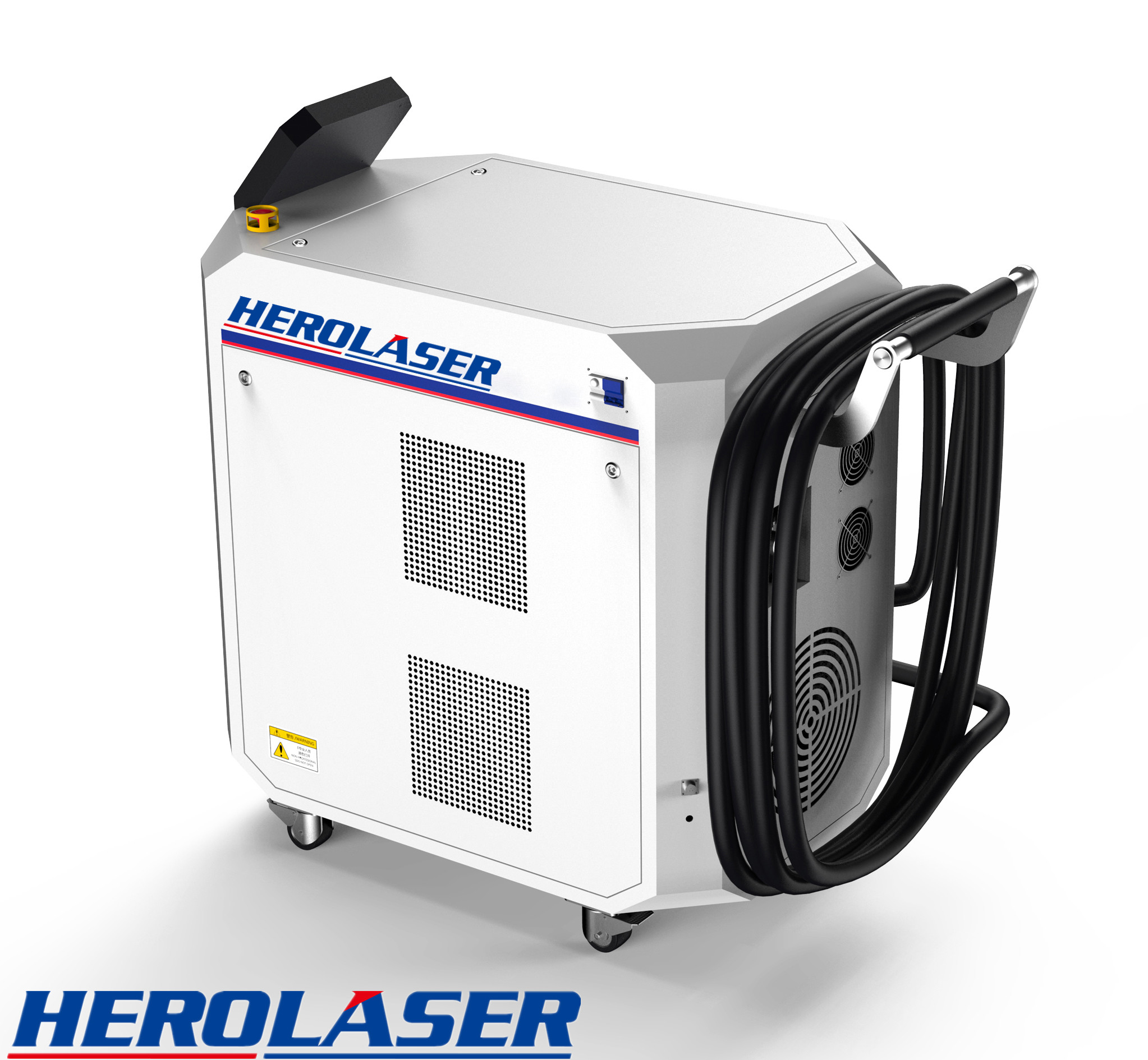

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain

  • Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain
  • Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain
  • Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain
  • Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain
Place of Origin CHINA
Brand Name Purple Horn
Certification CE/ISO9001/FDA
Model Number ML-MF-500l-LC
Minimum Order Quantity 1 Set
Price $
Packaging Details Plywood Box
Delivery Time 7-10 Work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability 100 Sets Per Month
Product Details
Model ML-MF-500l-LC Laser Power 500W
Laser Source Type IPG Fiber Laser Source Laser Wavelength 1064 Nm
Cooling Method Water Cooling Cooling Water Deionized Water
Water Temperature 18-22 ℃ Maximum Power 5100 W
Scan Width 10-80mm Auxiliary Gas Compressed Air/Nitrogen
Air Pressure 0.5-0.8 MPa Working Condition 5-40 ℃
Highlight

Purple Horn Equipment Laser Rust Removal Machine

,

IPG 10mm Laser Rust Removal Machine

,

IPG 10mm rust remover laser
Leave a Message
Product Description

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W





Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 0

Technical Parameter

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 1



Description of high efficiency laser cleaning machine

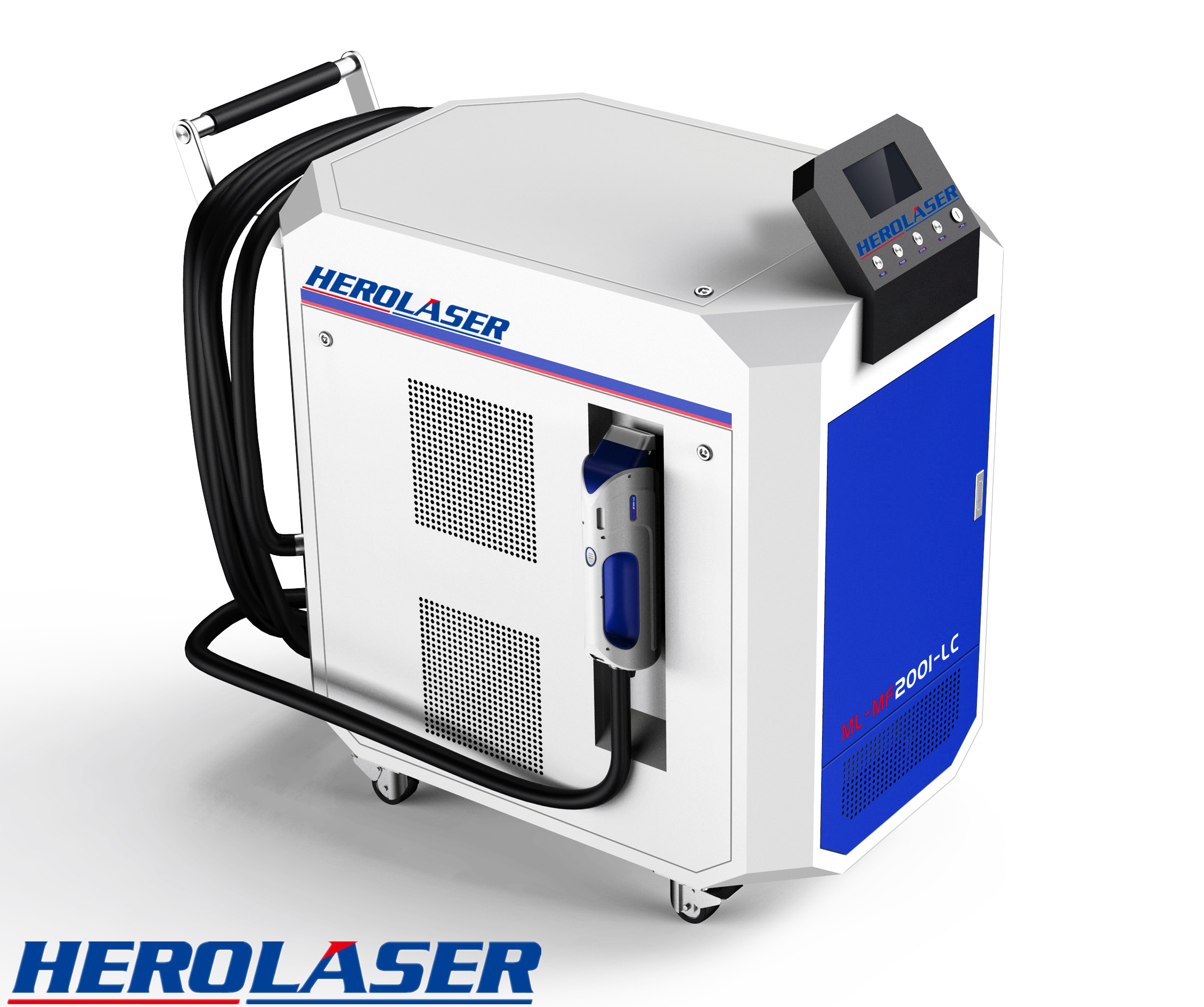

Model ML-MF-200l-LC ML-MF-500l-LC
Laser power 200W 500W

Laser source type

 IPG fiber laser source
Laser wavelength 1064 nm
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22 ℃

Cabinet size

 1420 mm*850mm*1370mm (L*W*H)
Total weight(with water tank) 225 kg 275 kg
Maximum power 2200 W 5100 W
Focal depth 10 mm 15 mm
Scan width 10-60 mm
Auxiliary gas Compressed air/Nitrogen
Air pressure 0.5-0.8 MPa
Optional accessory Handheld / Manipulator
Working condition 5-40 ℃
Application

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 2



Application
Rust Removal Oxide Removal Molding Cleaning Surface Preparation
Coatings Removal Weld Pre-treatment Gluing Pre-treatment Removal of Oil and Grease
Paint Removal Surface Cleaning Stain Removal Surface Roughening
Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning



Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 3



Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 4

Features

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 5

  • Revolutionary eco-friendly cleaning technology
  • Non-contact cleaning, no damage to work piece
  • Precision positioning, selective cleaning
  • Safe & environment-friendly. Without using chemical detergent or other consumables
  • Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
  • High efficiency, time-saving
  • Stable laser cleaning system, practically maintenance free
Company Information

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 6

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 7Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 8Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 9

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 10Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 11

Certifications

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 12

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 13

Packaging & Shipping

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 14

Purple Horn Equipment 10mm Laser Rust Removal Machine For Stain 15
