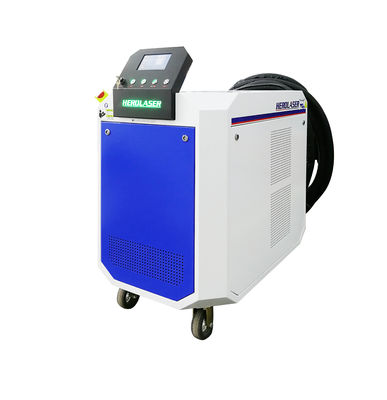

500W IPG Fiber Portable Laser Cleaning Machine For Coating Removal

  • 500W IPG Fiber Portable Laser Cleaning Machine For Coating Removal
  • 500W IPG Fiber Portable Laser Cleaning Machine For Coating Removal
Place of Origin CHINA
Brand Name Purple Horn
Certification CE/ISO9001/FDA
Model Number ML-MF-500-LC
Minimum Order Quantity 1 Set
Price $
Packaging Details Plywood Box
Delivery Time 7-10 Work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability 100 Sets Per Month
Product Details
Model ML-MF-500l-LC Laser Power 500W
Laser Source Type IPG Fiber Laser Source Laser Wavelength 1064 Nm
Cooling Method Water Cooling Cooling Water Deionized Water
Water Temperature 18-22 ℃ Maximum Power 2000W
Scan Width 10-60mm Auxiliary Gas Compressed Air/Nitrogen
Air Pressure 0.5-0.8 MPa Working Condition 5-40 ℃
Highlight

500W Portable Laser Cleaning Machine

,

IPG Fiber Portable Laser Cleaning Machine

,

500W portable laser rust removal machine
Leave a Message
Product Description

500W Laser rust removal machine high effciency for coating removal





500W IPG Fiber Portable Laser Cleaning Machine For Coating Removal 0

500W Laser rust removal machine high effciency for coating removal

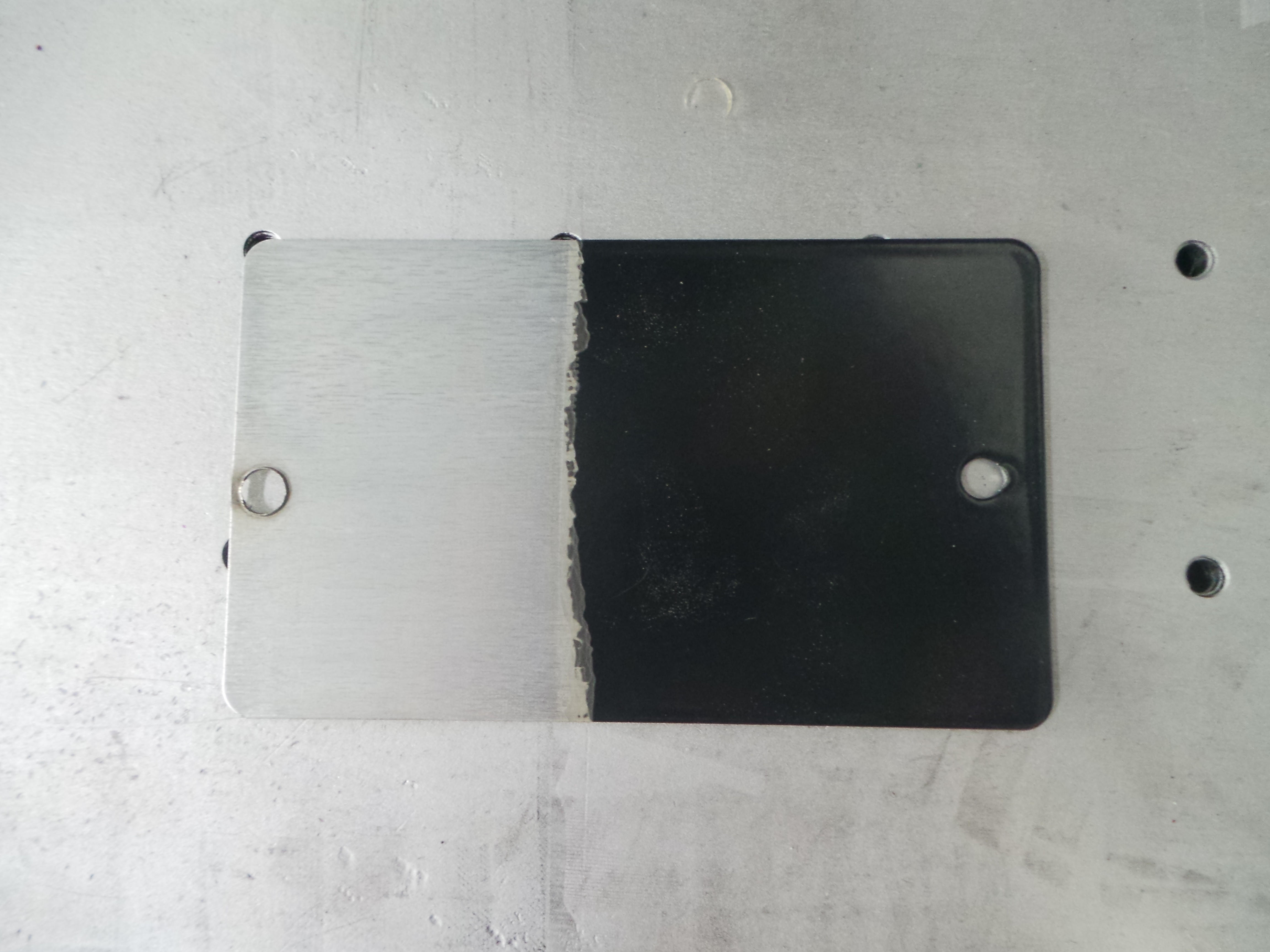

Laser cleaning machine can remove resin,oil,stain,contaminant,rust,coating,plating,paint etc,.

Laser cleaning is a new technology based on the interaction effect between laser and matter.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents,no pollution,it is a "green"cleaning technology.



500W IPG Fiber Portable Laser Cleaning Machine For Coating Removal 1



Technical Parameter

500W IPG Fiber Portable Laser Cleaning Machine For Coating Removal 2



Description of high efficiency laser cleaning machine
Model ML-MF-500l-LC
Laser power 500W

Laser source type

 IPG fiber laser source
Laser wavelength 1064 nm
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22 ℃

Cabinet size

 1420mm*850mm*1370mm (L*W*H)
Total weight(with water tank)  275kg
Maximum power 5100 W
Focal depth  15mm
Scan width 10-60 mm
Auxiliary gas Compressed air/Nitrogen
Air pressure 0.5-0.8 MPa
Optional accessory Handheld / Manipulator
Working condition 5-40 ℃
Application

500W IPG Fiber Portable Laser Cleaning Machine For Coating Removal 3



Application
Rust Removal Oxide Removal Molding Cleaning Surface Preparation
Paint Removal Surface Cleaning Stain Removal Surface Roughening
Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning



Features

500W IPG Fiber Portable Laser Cleaning Machine For Coating Removal 4



  • Non-contact cleaning, no damage to work piece
  • Precision positioning, selective cleaning
  • Safe & environment-friendly. Without using chemical detergent or other consumables
  • Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
  • High efficiency, time-saving
  • Stable laser cleaning system, practically maintenance free
