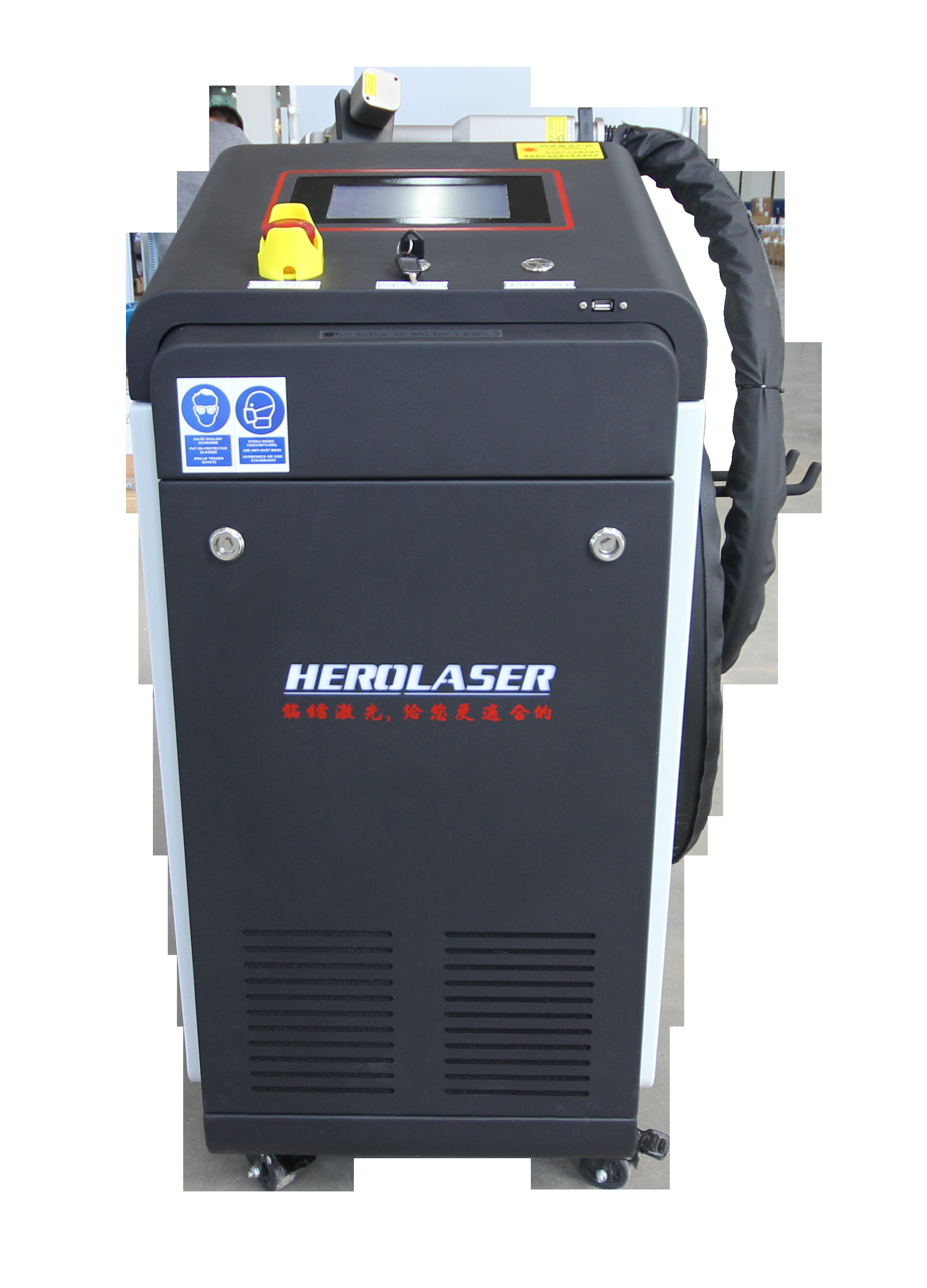

ISO9001 100W Laser Metal Cleaning Machine , Metal Rust Removal Laser
Product Details
| Model | ML-MF-100l-LC | Laser Power | 100W |
|---|---|---|---|
| Laser Source Type | IPG Fiber Laser Source | Laser Wavelength | 1064 Nm |
| Water Temperature | 18-22 ℃ | Maximum Power | 800 W |
| Scan Width | 10-60mm | Auxiliary Gas | Compressed Air/Nitrogen |
| Air Pressure | 0.5-0.8 MPa | Working Condition | 5-40 ℃ |
| Highlight | ISO9001 laser metal cleaning machine,100w laser metal cleaning machine,100w metal rust removal laser |
||
Product Description
100w Fiber Laser Cleaning Machine for Welding Spot Removal Welding Scar Removal
Laser cleaning is a new "green"technology based on the interaction effect between laser and matter.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents,no pollution,no noise,harmless to the human body and the environment,it is a cleaning technology.
Technical Parameter
| Description of high efficiency laser cleaning machine | |
|
Laser source type |
IPG fiber laser source |
| Laser wavelength | 1064 nm |
| Cooling method | Water cooling |
| Cooling water | Deionized water |
| Water temperature | 18-22 ℃ |
|
Cabinet size |
1089mm*450mm*550mm (L*W*H) |
| Total weight(with water tank) | 80kg |
| Maximum power | 800 W |
| Focal depth | 3mm |
| Scan width | 10-60 mm |
| Auxiliary gas | Compressed air/Nitrogen |
| Air pressure | 0.5-0.8 MPa |

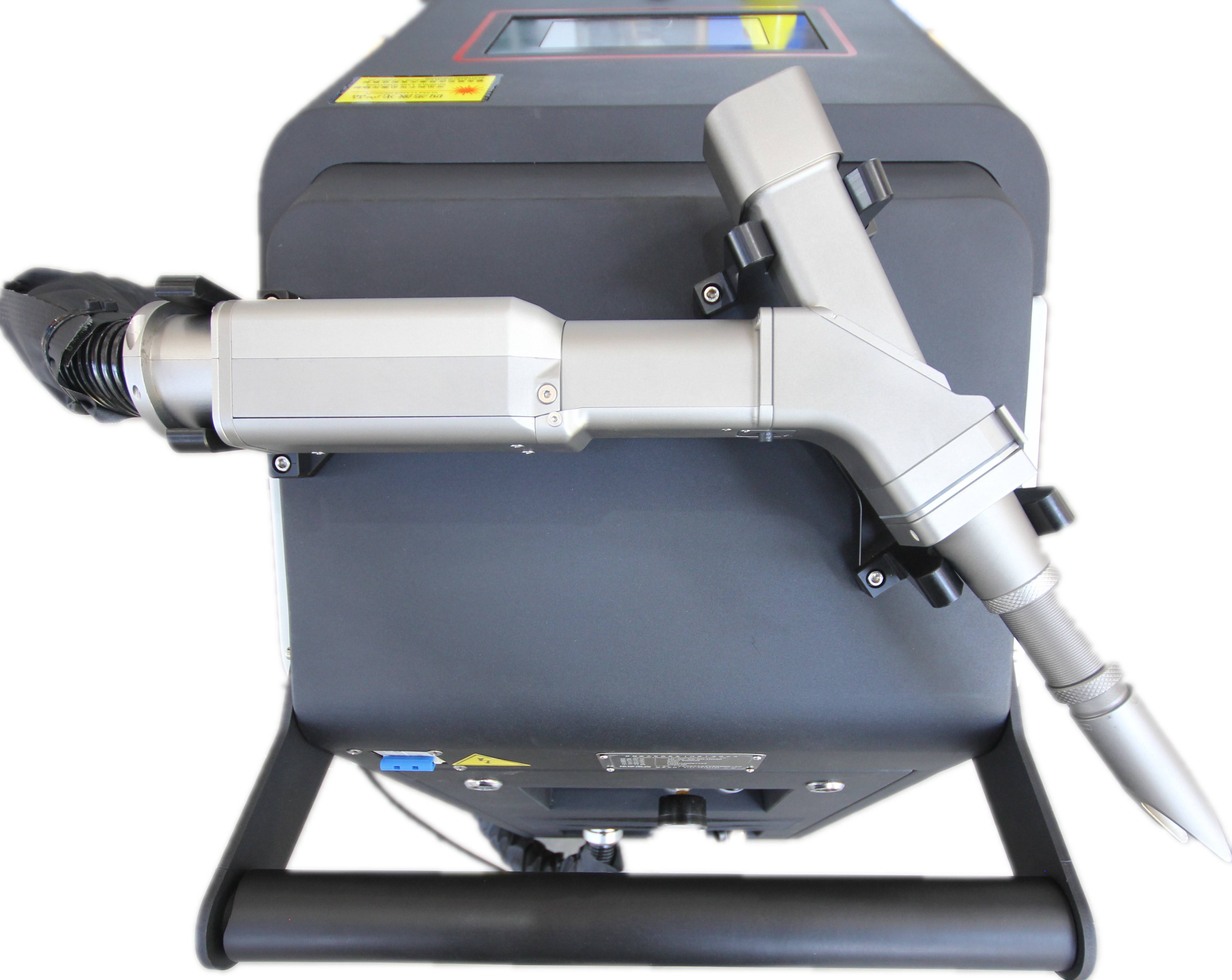

| Optional accessory | Handheld / Manipulator |
Application
| Application | |||
| Rust Removal | Oxide Removal | Molding Cleaning | Surface Preparation |
| Coatings Removal | Weld Pre-treatment | Gluing Pre-treatment | Removal of Oil and Grease |
| Paint Removal | Surface Cleaning | Stain Removal | Surface Roughening |
Features
- Non-contact cleaning, no damage to work piece
- Precision positioning, selective cleaning
- Safe & environment-friendly. Without using chemical detergent or other consumables
- Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
- High efficiency, time-saving
- Stable laser cleaning system, practically maintenance free
