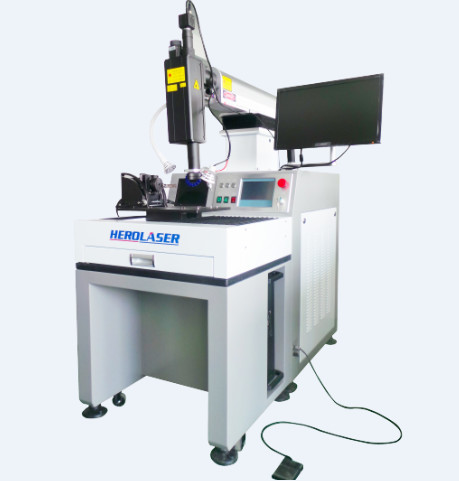

Herolaser 1064nm Automatic Laser Welding Machine For High Grade Material
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Herolaser | Warranty | 1Year , 2 Year |
|---|---|---|---|
| Laser Source Brand | IPG/MAX/RECI | Transportation | Ocean Freight , Air Transportation , Railway Transportation |
| Deliver Method | FOB , CFR | Application | Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing |
| After-Sales Service | Professional Technical Taem 24 Hours Online | Keywords | Damage Free Marking |
| High Light | 1064nm Automatic Laser Welding Machine,Herolaser Automatic Laser Welding Machine,1064nm cnc laser welding machine |
||
Product Description
300 Watt Automatic Laser Welding Machine, Suitable For Hardware Processing, High-Grade Material Fine Welding Processing The four-dimensional laser welding machine adopts the new four-dimensional technology, which has the characteristics of fast welding speed, high precision and good beam mode. It is especially suitable for laser precision welding of various specifications. The four-dimensional automatic laser welding machine can realize automatic positioning, and its production efficiency is hundreds of times higher than that of ordinary welding machine. The machine adopts automatic platform, rotary table and automatic lifting laser beam. The welding software based on Windows platform can be modified freely. It is easy to operate and maintain
- The X, y, Z and D axes of the welded sample are step driven to meet the needs of large stroke
- It has the advantages of high repetition precision, fast welding speed and high efficiency
- It can weld point, straight line, circle, ellipse and square plane arbitrary track
- High power laser power supply, meet 24 hours mass production
- With auto focus and rotation function, it can weld products of any shape in 3D space
- Specially designed for laser welding four axis linkage control system, stable performance, easy to us
| SN | Item | Parameter |
| 1 | Model | ML-W300 |
| 2 | Laser Working Substance | ND: YAG |
| 3 | Rated Output | 300W |
| 4 | Maximum Output | 400W |
| 5 | The Laser Wave Length | 1064NM |
| 6 | Photoelectric Range | 0.2MM—3.0MM(Adjust) |
| 7 | The Pulse Width | 0.1MS-20MS |
| 8 | The Depth Of The Weld | ≤3MM |
| 9 | Pulse Frequency | ≤100HZ |
| 10 | The Machine Power | 9KM |
| 11 | Control System | PC |
| 12 | Aimed At Positioning | Microscope ,CCD , Red Light |
| 13 | Table Travel | 200*200MM—1200*1200MM(Optional) |
| 14 | Demand For Electricity | 380V/Three-phase power/50HZ/100A |
| 15 | Host System Size | 1600*1200*1300MM |
| 16 | Cooling System Dimensions | 1200*300*900MM |
| acuum Cup | stainless Steel Bowl | Sensor | Tungsten Filament |
| High Power Diode Triode | Aluminum Alloy | Laptop Case | Cell Phone Battery |
| Door Handle | Mould | Electrical Accessories | Filter |
| Nozzle | Stainless Steel Products | Golf Ball Head | Zinc-Alloy Handicraft |
FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
