Fiber Optic Double End Galvanometer Automatic Laser Welding Machine Wheeled
Product Details
| Pulse Width | 0.1-20ms | Condition | New |
|---|---|---|---|
| Wavelength | 1064nm | Warranty | 1 Year,2 Years |
| Pulse Frequency | 0~100Hz | Cooling System | Water Cooling |
| Product Name | Mold Laser Welding Machine,Jewelry Spot Welding Machine,yag Laser Welder / Letter Laser Welding Machine Used For Advertising | Laser Type | YAG |
| Highlight | Fiber Optic Automatic Laser Welding Machine,Galvanometer Automatic Laser Welding Machine,Galvanometer jewelry spot welding machine |
||
Product Description
Double-end Galvanometer Fiber Optic Transmission Automatic Laser Welding Machine
Product introduction:

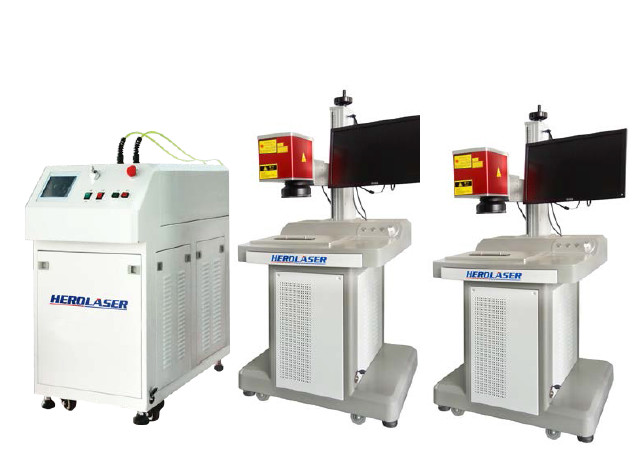

High-speed fiber splitter welding machine 200-2000 watt fiber laser, electro-optic conversion efficiency is high, the life of the laser is long, the life of up to 100,000 hours. 25%-30% of the energy provided by the power source is converted into laser energy, which is the highest laser energy conversion at present. The welding working platform adopts fully sealed laser radiation protection design, intelligent operation: light, machine, water, electricity and gas integrated anti-static type, equipped with observation window and door, easy to maintain and install; Door switch protection device and alarm light display, reserved T jig chute, additional simple ventilation device. The combination of this machine is 1 host + 2 galvanometer workstations.
Model features:
1. It can realize the splitting of time and energy, can process multiple beams at the same time, and realize more precise welding.
2. The cooling medium is purified to prolong the life of the device and make routine maintenance more convenient.
3. The processing is pollution-free, the heat-affected zone is small, and the deformation is small.
4. The welding gap is small, the depth is large, the taper is small, the precision is high, the appearance is smooth flat and beautiful.
5. After welding, the product is not deformed or yellowed, the weld seam is flat, and the size of the weld joint is uniform.
6. Controlled by PC, assisted by special software, easy to operate and easy to learn, and can weld any graphics and characters.
7. No consumables, small size, flexible processing, and low operating cost.
8. Optical fiber output, can be freely matched with manipulators and assembly lines
9. The CCD LCD monitor and observation system can clearly observe the product positioning and welding effect according to the red light instructions.
Technical Details:
| Model No. | ML-WG-FQ-ZJ-W300 |
| Wavelength | 1064nm |
| Laser source | Nd: YAG |
| Pulse width | 0.1—20ms |
| Pulse frequency | ≤100Hz |
| Optical fiber core diameter | 0.3mm,0.4mm,0.6mm (optional) |
| Min light spot diameter | 0.4mm |
| Spectroscopy methods | Time spectroscopy |
| Rated laser power | 300W |
| Max power consumption | 12kw |
| Cooling system | Water cooling |
| Power supply | 380V |
| Dimension | 1450mm*660mm*1080mm |
| Weight | 300kg |
Main Configuration:
| Item | Spec. | Qty |
| Laser cable | 400um*5m | 2 sets |

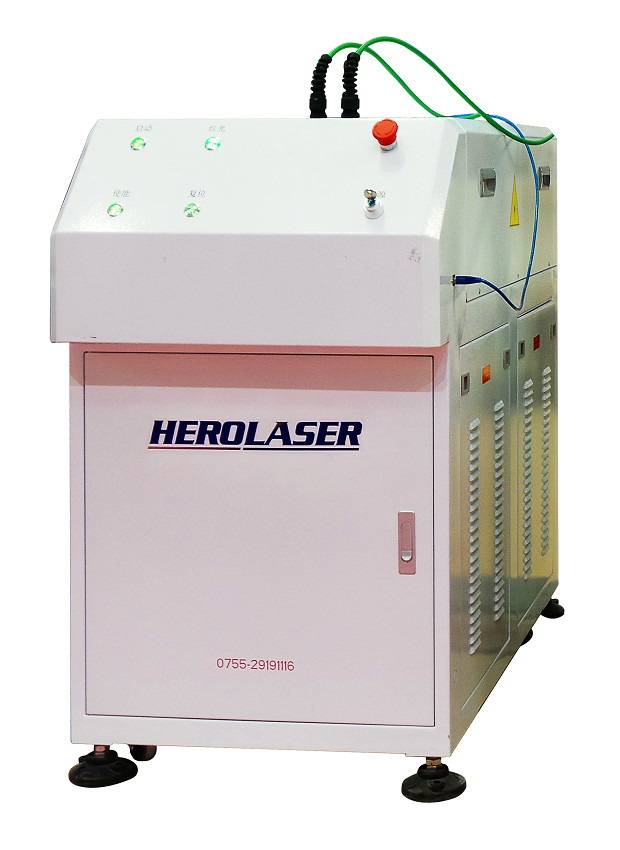

| Welding control cabinet | Purple Horn | 1 set |
| Control computer | Industrial control computer | 2 sets |
| galvanometer workstations | Automatically | 2 sets |
| Software | Purple Horn | 2 sets |
| Water chiller | Constant Temperature/Circulation | 1 set |
| F-theta lens | F=170mm | 2 sets |
Application scope:
Widely used in battery industry, IT industry, electronic devices, optical communication industry, sensor industry, hardware accessories welding, auto parts welding, jewelry welding industry, glasses industry, porcelain teeth, solar energy industry, electric heating industry.
Samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
