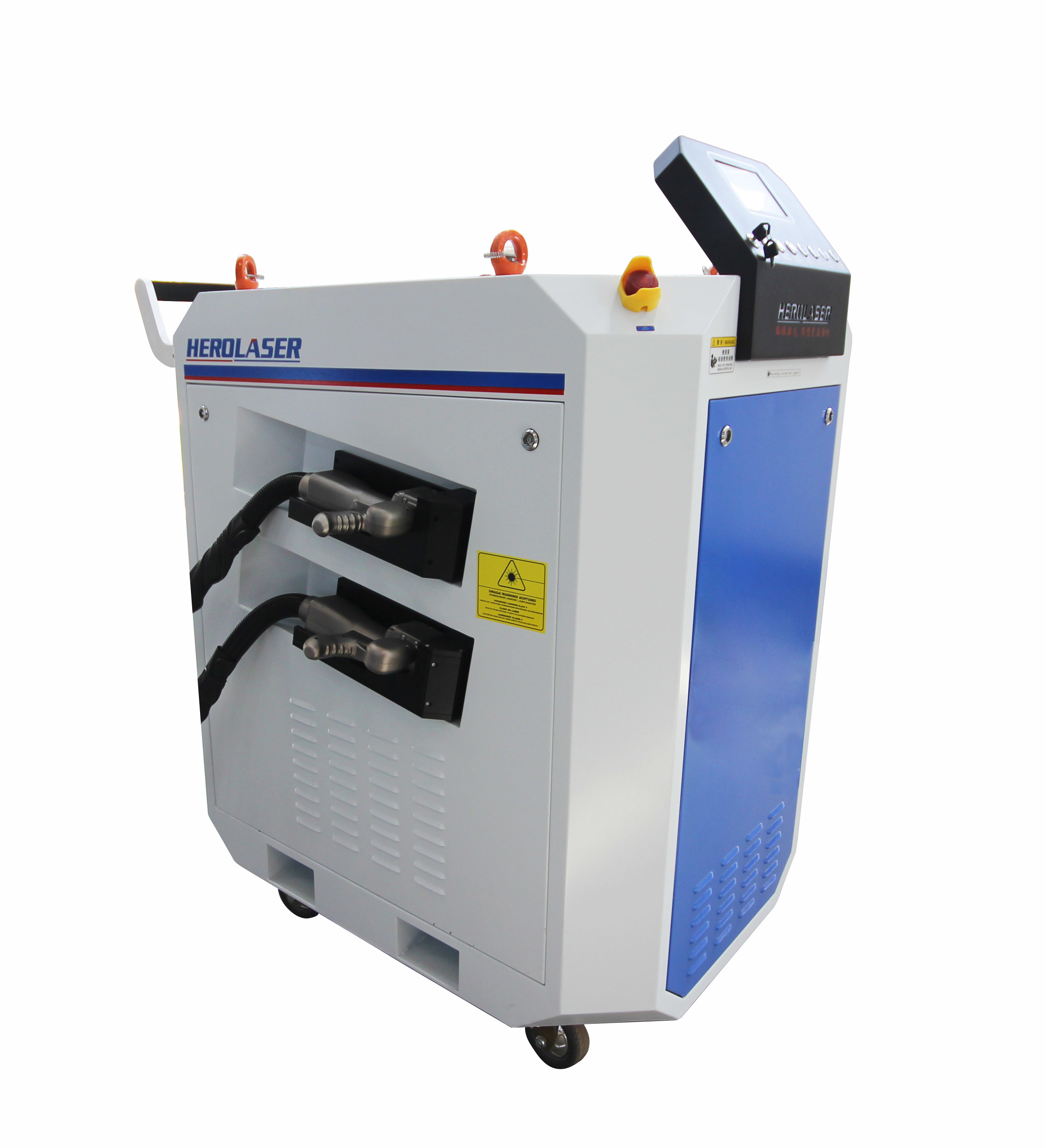

500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry

  • 500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry
  • 500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry
Place of Origin CHINA
Brand Name Purple Horn
Certification CE/ISO9001/FDA
Model Number ML-MF-500l-LC
Minimum Order Quantity 1 Set
Price $
Packaging Details Plywood Box
Delivery Time 7-10 Work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability 100 Sets Per Month
Product Details
Model ML-MF-500l-LC Laser Power 500W
Laser Source Type IPG Fiber Laser Source Laser Wavelength 1064 Nm
Cooling Method Water Cooling Cooling Water Deionized Water
Scan Width 10-60mm Auxiliary Gas Compressed Air/Nitrogen
Air Pressure 0.5-0.8 MPa Working Condition 5-40 ℃
Highlight

500W Handheld Laser Cleaning Machine

,

IPG Fiber Handheld Laser Cleaning Machine

,

IPG Fiber laser paint stripping machine
Leave a Message
Product Description

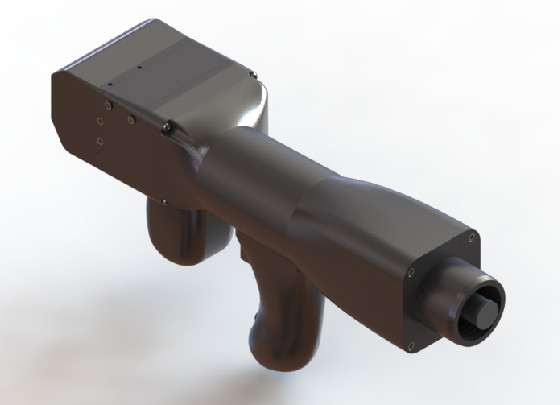

Handheld Fiber Laser Cleaning Machine for Metallurgical Industry Cleaning.





Laser cleaning is a new technology based on the interaction effect between laser and matter.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents,no pollution, can remove resin,oil,stain,contaminant,rust,coating,plating,paint etc,.

500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry 0



Technical Parameter

500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry 1



Description of high efficiency laser cleaning machine
Laser power 500W

Laser source type

 IPG laser source
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22 ℃

Cabinet size

 1420mm*850mm*1370mm (L*W*H)
Maximum power 5100W
Focal depth  15mm
Scan width 10-60 mm
Auxiliary gas Compressed air/Nitrogen
Optional accessory Handheld / Manipulator



Features

500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry 2

  • Revolutionary eco-friendly cleaning technology
  • Non-contact cleaning, no damage to work piece
  • Safe & environment-friendly. Without using chemical detergent or other consumables
  • Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
  • Stable laser cleaning system, practically maintenance free
Application

500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry 3



Application
Rust Removal Oxide Removal Molding Cleaning Surface Preparation
Paint Removal Surface Cleaning Stain Removal Surface Roughening
Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning



500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry 4



500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry 5

Certifications

500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry 6

500W IPG Fiber Handheld Laser Cleaning Machine For Metallurgical Industry 7
