Automatic Uploading Cypcut Control 6M Laser Pipe Cutting Machine

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number 6020D
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T, D/A, D/P, Western Union
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML-P6020D Application Metal Pipe Cutting Machine
Cutting Speed Depends On Material Cutting Thickness Depends On Material
Laser Power 1500W-20000W Material Steel, Iron, Alloy, Aluminum, Stainless
Cooling Mode Water Cooling,protection System Graphic Format Supported PLT,AI,DXF
Control Software Cypcut Cnc Or Not Yes
Warranty 2 Years After-sales Service Provided Engineers Available To Service Machinery Overseas
Cutting Area 6000mm Function Cutting Metal Plates And Pipes
Control System Cypcut Control System
High Light

Cypcut Control Laser Pipe Cutting Machine

,

6M Laser Pipe Cutting Machine

,

Cypcut Control Laser Pipe Cutter

Leave a Message
Product Description

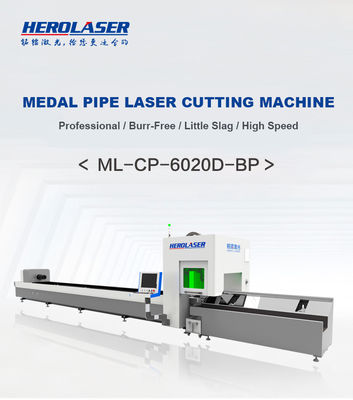

Automatic Uploading 6M CNC Laser Pipe Cutting Machine , Laser Tube Cutting Machine





Product Instruction:

ML-P6020D laser pipe cutting machine is a standard optical fiber laser pipe cutting machine developed by Herolaser. It adopts long-term stable and reliable advanced medium and high-power optical fiber laser, selects high-precision gear rack, imported high-precision linear guide rail and other high-efficiency transmission components, and is a precision CNC automatic laser pipe cutting machine assembled through WEIHONG professional pipe cutting control system. It is a high-tech product integrating the latest laser cutting, precision machinery, numerical control technology and other disciplines. It is mainly used for cutting metal pipes such as carbon steel pipe and stainless steel pipe (square pipe, round pipe and rectangular pipe). It is a useful cutting tool in the metal pipe processing industry. The bed adopts horizontal gantry structure and combined transmission mode of gear rack and screw. Transmission components such as reducer, guide rail and gear rack are well-known brands. It has the characteristics of stable structure, good rigidity, light weight and high dynamic response. It is a professional laser pipe cutting machine with high efficiency, precision and stability.



Features:
- The shortest tail material is 110mm.
- Very low operation and maintenance costs.
- The laser cutting head will not contact the material surface and will not scratch the workpiece.
- The front chuck maintains the full stroke without changing the claw.
- High speed idle stroke, high acceleration, fast cutting response, not easy to burn corners.
- The rear chuck vacuums at the rear and the front chuck vacuums at the side. The tube wall is cleaner and there is less cutting dust and smoke.
- The height of the feeding fixed support wheel can be adjusted manually, and the blanking is a combination of follow-up support and slope sliding.
- High-speed and high-quality laser cutting can be performed on various profiles such as round pipe, square pipe, rectangular pipe, waist round pipe, angle steel and C-section steel.
- The pipe cutting section is smooth without burr, slag, blackening and yellowing, which can easily realize the cutting of various complex graphics.



Advantages:
- Pneumatic Chuck - labor saving and production increasing:
Pneumatic clamping, large and stable clamping force to ensure high-precision cutting,
Special support frame can avoid pipe sagging and deformation, improve cutting accuracy and prolong the service life of chuck.
- Intelligent Large Screen Operating System:
Intelligent operation pipe cutting system, simple interface operation, efficiency greatly improved, unique graphic database without manual programming.
- Automatic Sensing Laser Cutting Head
High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the material surface to ensure the perfection of the workpiece.
- Horizontal Gantry Structure
Gear rack and screw combined transmission mode can obtain high stability, good rigidity, light weight and high dynamic response.



Parameters:

No. Item Parameter
1 Model ML-CP-6020D-BP
2 Laser power 3KW
3 Chuck clamping range Φ20mm~Φ220mm, □20~□150
4 Maximum single pipe weight 170KG
5 Feeding length ≤6300mm(automatic feeding)
6 Blanking length ≤2500mm(length customizable)
7 Cutting thickness (related to laser power) Carbon steel≤18mm ;Stainless steel≤8mm;Aluminum≤6mm;Brass≤5mm;
8 Positioning accuracy ≤±0.03mm
9 Repeat accuracy ≤±0.02mm
10 X-axis maximum speed ≤100m/min
Y-axis maximum speed ≤100m/min
Z-axis maximum speed ≤65m/min
B-axis maximum speed ≤100RPM
11 Idle running acceleration 1.0G
12 Power demand AC220V±5%/50Hz
13 Power consumption 6KW-25KW
14 Dimension 11000*5200*2400(mm)
15 Weight About 7800KG
14 Graphic file format dxf
