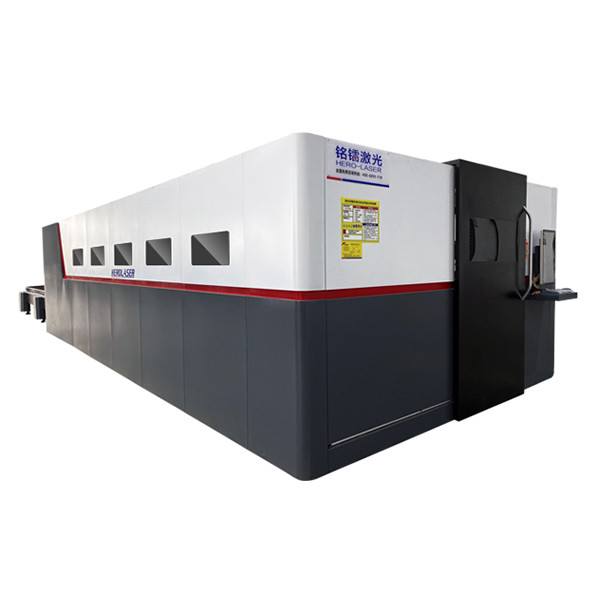

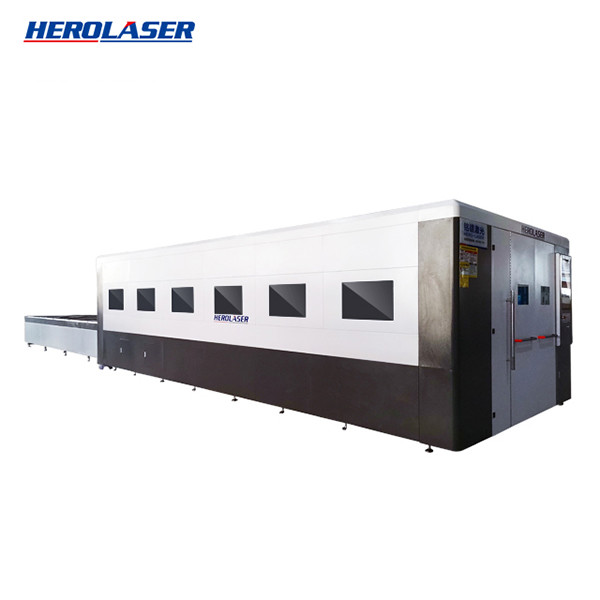

Herolaser Intelligent 12000W Fiber Laser Cutting Machine

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number ML-CF-6025FB
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Wavelength 1070nm Laser Output Power 12000W
Effective Cutting Rang 6000mm*2500mm Cutting Thickness (related To Laser Power) Carbon Steel≤35mm ;stainless Steel≤25mm;Aluminum Alloy≤18mm;brass≤12mm
Positioning Accuracy ±0.04mm/m Repeatable Positioning Accuracy ±0.02mm/m
Max. Running Speed 100m/min Max. Accelerated Speed 1.2G
Machine Size 15000*3700*2200mm (length*width*high)
High Light

Intelligent 12000W Fiber Laser Cutting Machine

,

Herolaser 12000W Fiber Laser Cutting Machine

,

Herolaser Intelligent Fiber Laser Cutter

Leave a Message
Product Description

Herolaser 12000W Intelligent High Power 12000W Fiber Laser Cutting Machine



Parameter
No
Name
Parameter
1
Device model
ML-CF-6025FB
2
Laser wavelength
1070nm
3
Laser output power
12000W
4
Effective cutting rang
6000mm*2500mm
5
Cutting thickness (related to laser power)
Carbon steel≤35mm ;stainless steel≤25mm;Aluminum Alloy≤18mm;brass≤12mm
6
Positioning accuracy
±0.04mm/m
7
Repeatable positioning accuracy
±0.02mm/m
8
Max. running speed
100m/min
9
Max. accelerated speed
1.2G
10
Machine tool bearing
4 tons
11
Demand for electricity
AC380V±5%/50Hz
12
Whole machine power consumption
160KW
13
Machine size
15000*3700*2200mm (length*width*high)
14
Weight
About 17 tons
15
Support for graphic formats
plt/dxf,etc
Products Description

Introduction


ML-CF-6025FB series laser cutter is a fiber laser cutting machine with advanced structure design and excellent machine tool performance, which applies the world-class CNC and fiber laser. It adopts gantry-type double-drive structure ,integral welded base and rack so that vibration aging treatment is carried out to eliminate the stress during welding and processing after rough machining ;and pinion transmission structure with fast speed, high precision, one-time cutting and forming without subsequent processing.
Greatly improve the processing efficiency, the layout is visible, the cutting is tight to save material. Advanced technology can increase the progress of your company's new product development and recover your equipment investment cost soon.
It is widely used in sheet metal processing, advertising sign production, mechanical parts, kitchen utensils, metal crafts, saw blades, hardware and other industries; also be used for cutting carbon steel, stainless steel, aluminum alloy, carbon steel,copper and other metals.
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 0
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 1
Characteristics
Structure Introduction

Machine body/bed The machine body is tailor-welded by rectangular tubes and steel plates, after annealing to remove the stress, it is roughed by a large gantry milling machine, subjected to aging treatment, and then refined, so that the overall mechanical structure of the equipment remains under ultra-high speed and acceleration conditions with small deformation and low vibration. It obtains extremely high machine tool accuracy, extend the cycle of customer equipment upgrades, and reduce customer use costs.
The bed guide rail and rack and pinion have complete lubrication, which can maintain the precision and service life of the machine tool for a long time.
Beam structure The use of aviation-grade aluminum alloy, the trigon metal stability structure, strong anti-torsion, anti-overturning performance, and the best mechanical properties; the honeycomb internal design is resistant to deformation, can effectively disperse internal and external stress, and has high structural stability; Ultra-high pressure plastic production, compact structure, greatly improved strength.
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 2
Features and advantages
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 3


Intelligent processing

It can automatically use standard measuring instruments, edge finding, processing and platform exchange functions after enter the
plates thickness and material in the system, eliminating the repetitive operation of batch platess cutting, reducing labor
intensity and improving processing efficiency.
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 4

Zero second perforation
1. Stepless perforation greatly reduces the perforation time by about 75% and improves the processing efficiency;
2. Continuous perforation, high stability, the waste hole rate is reduced from about 5% to 0.2%, improves the integrity of the workpiece;
3. High accuracy rate, less slag accumulation, stable follow-up, stable start cutting point, ensuring the best cutting section;
4. Reduce perforation time, save gas, reduce power consumption, reduce the risk of damage to lasers and cutting heads, and
improve material utilization;


Herolaser Intelligent 12000W Fiber Laser Cutting Machine 5

Perfect sharp corner cutting technology
the smallest aperture ≤ 0.2 times the plates thickness of sharp corner cutting products
The perfect sharp corner cutting process is a new process developed for high-quality cutting of carbon steel thick platess.
Compared with the previous standard cutting process, the new process has a faster cutting speed and a smaller section slope (35mm
carbon steel 15 wires/unilateral).
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 6

Double Exchange platform

High and low switching table, complete a switching time ≦20 seconds, greatly improve the processing efficiency, save labor costs.


Automatic location and edge search function
The system has automatic positioning and edge finding function, which makes the feeding more random, faster and faster




Cutting samples

Herolaser Intelligent 12000W Fiber Laser Cutting Machine 7
Applicable Industry
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 8



kitchenware

Herolaser Intelligent 12000W Fiber Laser Cutting Machine 9



metal crafts

Herolaser Intelligent 12000W Fiber Laser Cutting Machine 10



mechanical parts

Herolaser Intelligent 12000W Fiber Laser Cutting Machine 11



hardware

Herolaser Intelligent 12000W Fiber Laser Cutting Machine 12



advertising signs

Herolaser Intelligent 12000W Fiber Laser Cutting Machine 13



metal processing

Company Information
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 14

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Certification
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 15
Packaging & Shipment
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 16
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 17
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 18
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 19
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 20
Herolaser Intelligent 12000W Fiber Laser Cutting Machine 21
Our Services

---Pre-Sales Service


① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

10. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
