Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm

  • Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm
  • Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm
  • Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm
  • Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm
  • Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm
  • Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm
Place of Origin China
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-CF-30152000
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 1000w Laser Wave Length 1070nm
Max Cutting Range 6000mm*2000mm Positioning Accuracy ≤ ±0.03mm
Laser Input Power 1.2kw Dimension Size 8100mm*2650*2200mm
High Light

Mutual Moving Laser Cutting Machine

,

Sheet Panel CNC Laser Cutting Machine

,

Sheet Metal Fiber Laser Cutting Machine 1070nm
Leave a Message
Product Description

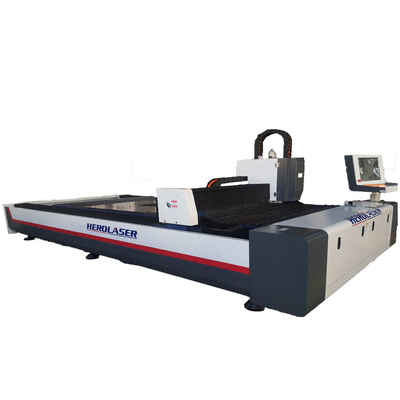

Herolaser CNC Fiber Laser Cutter Cutting Machine for Metal Sheet



ML-CF-3015FB The sheet metal laser cutting machine adopts two-head mutual-moving laser cutting, and the processing area is large.



The negative pressure crawler working platform is equipped with left and right feeding and rewinding devices, which enables



unwinding, cutting and rewinding in one go, which greatly reduces the time between procedures , Improve work efficiency and



processing output. As a new type of cutting machine, its work efficiency is often 2-10 times that of traditional cutting machines.






Bigger Adjustment Range

The smoke produced by cutting can be filtrated inside, it’s non-polluting and environmentally, friendly.



Long Service Life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head



to improve the life of the cutting head.



Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm 1



Sheet Panel Industry Processing Laser Cutting Machine Herolaser 1070nm 2



Stable Cutting Performance


Fiber laser source can produce excellent beam quality,finer cutting lines,higher working efficiency and better machining quality.Fully closed



constant temperature working environment makes laser source more effective to ensure the stable operation.



form 2.jpg



Machine Parameters:

S/N Name Model Remarks
1 High power fiber laser cutting machine ML-CB-6020T Herolaser
2 Numerical control system CypCut Shanghai Bochu
3 Servo drive Fuji Japan
4 Reducer Modoli France
5 X, Y-axis rack YYC Taiwan China
6 Z-axis lead screw HIWIN Taiwan China
7 Linear guide rail HIWIN Taiwan China
8 Laser MAX/RECI/IPG China/German
9 Cutting head Osprey China
10 Cooling-water machine Teyu China
11 Pneumatic components SMC (or equivalent) Japan
12 Electrical components Schneider (or equivalent) France




Cutting Process Parameters

There are differences due to different types of cutting head and laser. Taking 1500W as an example, the following parameters are for reference only:



S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2



S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2



S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2








After-Sales Services



1. 2 year guarantee for laser source(people damaged are charged)


2. Full technical support / by e-mail, call and video


3. Spare parts supply.


4. Free online training installation and operation


5. 12 hours quick feedback & after-sales services


6. ODM/OEM service



FAQ



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
