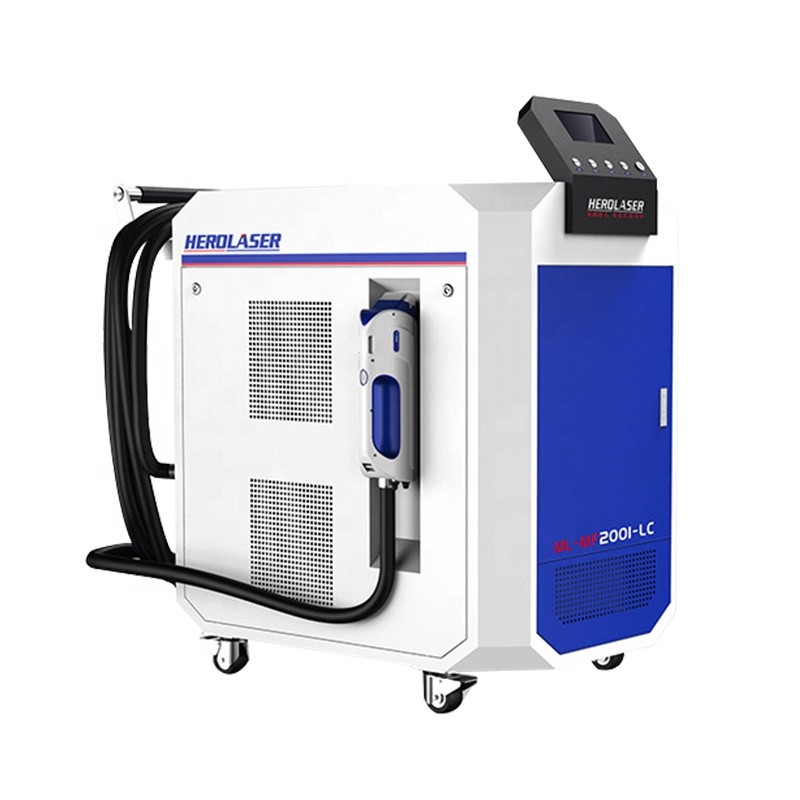

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-PW-100
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 180 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cabinet Dimensions(mm) 390*180*280 Laser Fiber Laser
Laser Type PW Laser Wavelength 1064-1074(nm)
Cooling Way Water Supply Voltage 220V
Working Temperature 5~40℃ Fiber Length 3M(Optional)
Laser Head Weight 1.0kg Total 15kg
High Light

FDA Laser Rust Removal Machine

,

IPG Fiber Laser Rust Removal Machine

,

1064nm Pulse Laser Cleaning Machine

Leave a Message
Product Description

Introduction

LASER CLEANING MACHINE

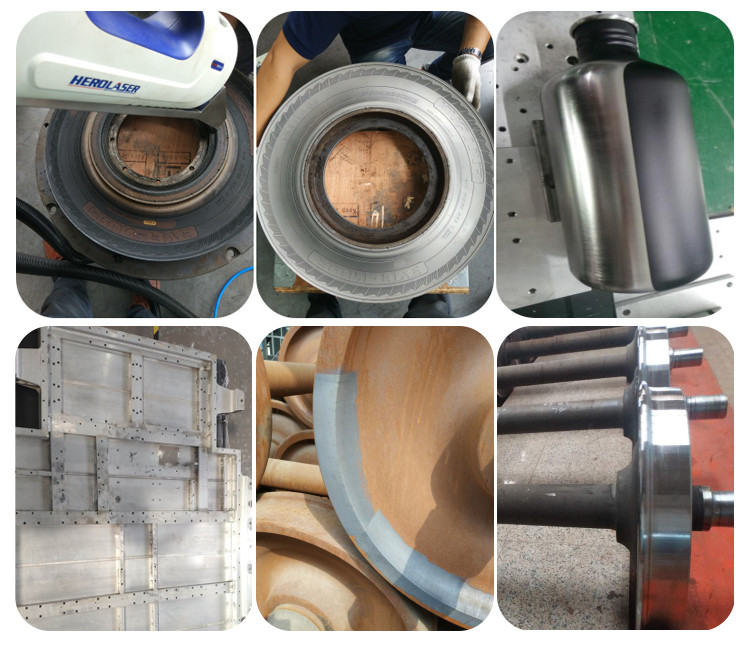

- What  can be cleaned
A. Metal surface cleaning

B. Removal paint of metal surface

C. stains cleaning on the surface

D. Surface coating cleaning

E. Pretreatment of welding surface cleaning

F. You also can tell us your needs, we will recommend the suitable machine to you. Ship Industry, auto Parts, rubber Mold, high-end Machine, tire molde track, environmental Protection Industry and others.

Detail Photos
Model ML-MF-200l-LC ML-MF-500l-LC
Laser power 200W 500W
Laser source type IPG fiber laser source
Laser wavelength 1064 nm
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22 ℃
Cabinet size 1420 mm*850mm*1370mm (L*W*H)
Total weight (with water tank) 225 kg 275 kg
Maximum power 2200 W 5100 W
Focal depth 10 mm 15 mm
Scan width 10-80mm
Auxiliary gas Compressed air/Nitrogen
Air pressure 0.5-0.8 MPa
Optional accessory Handheld / Manipulator
Working condition 5-40 ℃



Apply to a. Metal surface rust removal
b. Surface paint cleaning
c. Surface oil stain/contaminant cleaning
d. Coating surface cleaning
e. Welding / coating surface pre-treatment
f. Stone figure surface dust & attachment cleaning
g. Plastic mould residues cleaning
Features a. Revolutionary eco-friendly cleaning technology
b. Non-contact cleaning, no damage to work piece
c. Precision positioning, selective cleaning
d. Safe & environment-friendly. Without using chemical detergent or other consumables
e. Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
f. High efficiency, time-saving
g. Stable laser cleaning system, practically maintenance free

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 0

Product Parameters

Model ML-MF100I-LC ML-MF200I-LC
Laser Power 100W 200W
Cooling Way Air Cooling Water Cooling
Laser Wavelength 1064nm
Power Supply AC 220-380V / 50 Hz
Maximum KVA 500W 2200W
Fiber Length 3-7m 10-15m
Dimension 460x285x450mm 1400X860X1600 mm
Focal length 210mm
Focal depth 2mm 5mm
Handheld Laser Head Weight 1.5kg
Working Temperature The service life of the laser is long at constant temperature of 5-40 ° C (normally at constant temperature of 25 ° C)
Pulse width 20-50k ns
Scan Width 10mm-80mm (customizable additional price)
Laser frequency 20-50k HZ
Laser source type Fiber laser source
Options
Portable/
Handheld
Handheld/
Automation/
Robotic system



Handheld Laser Cleaning Machine Cleaning Data:

(This data is for reference only, please refer to the actual data of the proofing; 1000W laser cleaning equipment can be adjusted to 500W.)

Rust Removal 200W 500W 1000W
30μm 12m²/hour 15m²/hour 19m²/hour
50μm 10.8m²/hour 13.5m²/hour 17.5m²/hour
80μm 8.5m²/hour 11.8m²/hour 16m²/hour
100μm 6m²/hour 8.5m²/hour 14m²/hour



500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 1



500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 2500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 3500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 4

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 5

Certifications

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 6

Company

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 7



Packing & Shipping

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 8

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 9

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 10



Environlent-Friendly



A environlent-friendly cleaning choice: It not only means that the laser cleaning is effect, but also the cleaning process is



environmental protection process. It doesn’t use chemical cleaner, moreover, thus avoiding damage to materials caused by



chemical corrosion.

Comparison with traditional clean methods:



Comparision Laser Cleaning Chemical Cleaning Mechanical Grinding Dry ice cleaning
Washing Method non-contact cleaning contact cleaning Abrasive contact cleaning non-contact cleaning
Harm to base material None Yes Yes None
Washing Efficiency High Low Low Mid.
Consumable Power Chemical Detergent Abrasive paper, grinder, abrasive stone Dry Ice
Washing result Very good, very clear Medium, uneven Medium, uneven Good, uneven
Precision Washing Accuracy controllable. High precision Uncontrollable, low precision. Uncontrollable, medium precision. Uncontrollable, poor precision.
Safety/Environment No pollution Chemical pollution Dust pollution

No pollution
Operation Easy to operate, portable or automation optional. Complicated process, higher technical requirement of the operator. Pollution prevention measures required. Need more time & manpower. Pollution prevention measures required. Easy to operate, portable or automatic.
Investment High investment on machine. But no consumable, low maintenance cost Low investment on machine. But expensive consumables Medium investment on machine. High man-power cost. Medium investment on machine. High consumable cost.

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 11





500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 12500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 13

500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 14 500w 1000w 1500w Pulse Laser Rust Removal Machine For Paint Oil Herolaser 15



Laser Generator

Different laser power can be chosen,

200w 300w 500w 100w 1500w 2000w,etc,

we also have different laser brand.



Chiller

The machine has two cooling ways,

one is air cooling, another is water cooling. depends on power



Laser Cleaning Head

Differnet cleaning head can can optional, just tell us your needs, we will give you a suitable soluation



After Sales Service



1) 2 year guarantee for laser source(people damaged are charged)
2) Full technical support / by e-mail, call and video
3) Spare parts supply.
4) Free online training installation and operation
5 12 hours quick feedback & after-sales services
6) ODM/OEM service



FAQ



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, L/C, CAD, OA, Trade Insurance, Alibabapay.

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.


6. Can I go to the factory to test the machine before shipment?
Sure you can.


7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8.
How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
