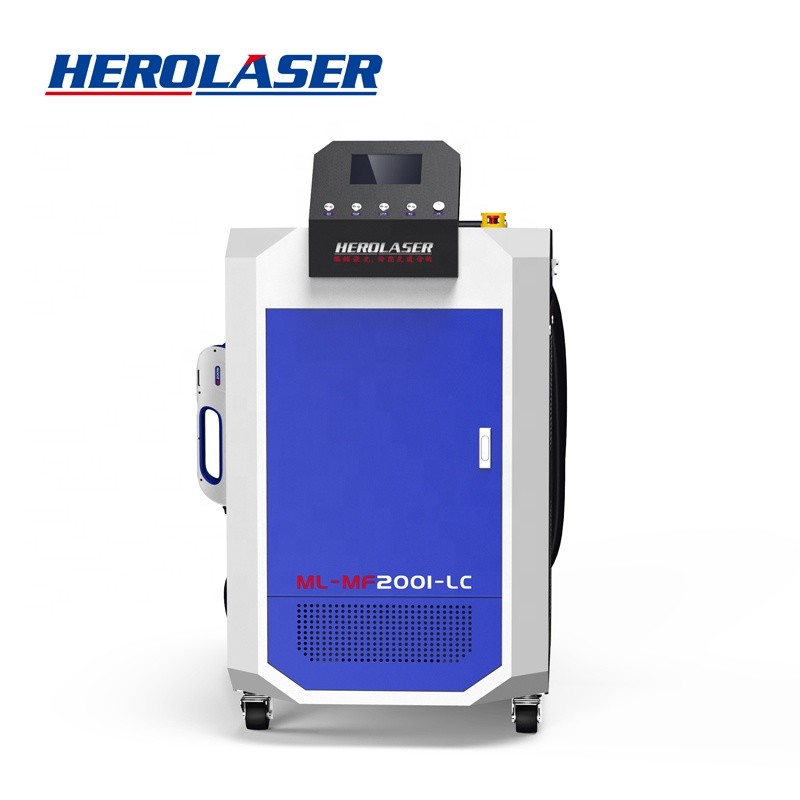

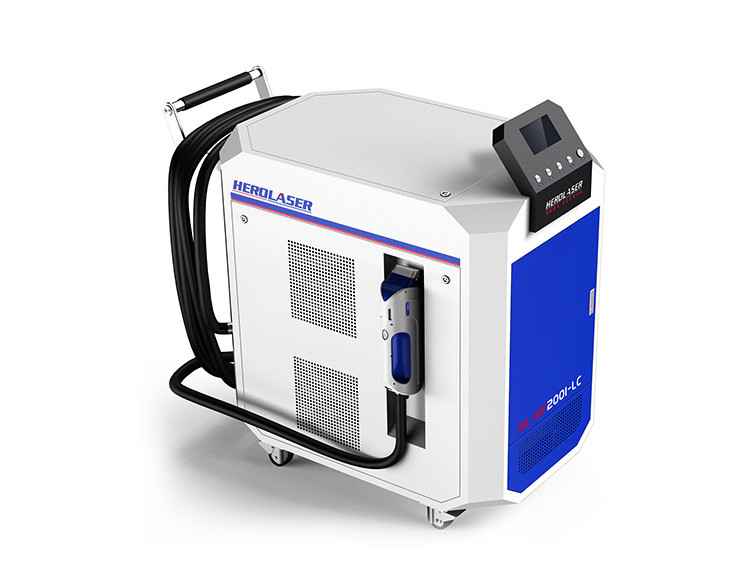

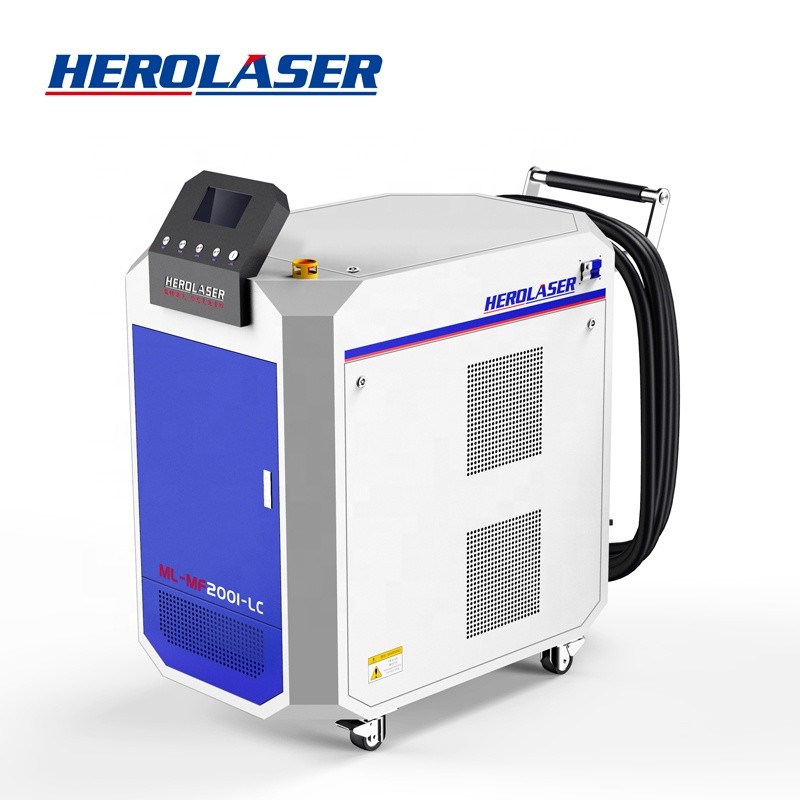

1000w HEROLASER CW Laser Rust Removal Machine For Cleaning

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-QF-SS-SC-IW1000
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension(L*W*H) 1410*720mm*1235mm Laser Source Brand IPG
Laser Power 100W/200W/500W/1000W/1500W/2000W Laser Type CW
Cooling Method Water Cooled Local Service Location Italy, Spain
High Light

1000w Laser Rust Removal Machine

,

CW Laser Rust Removal Machine

,

IPG Laser Cleaning Machine

Leave a Message
Product Description

------------------Introduction of Laser Rust Removal Machine-----------------------



The traditional cleaning industry has a variety of cleaning methods, mostly using chemical agents and mechanical methods for



cleaning. Due to the increasingly strict requirements of environmental protection laws and regulations, and people's increasing



awareness of environmental protection and safety, the types of chemicals that can be used in industrial production cleaning will



become less and less after 2020. How to find a cleaner and less damaging cleaning method is a problem we have to consider.



Laser cleaning is considered to be the most reliable and effective solution due to its features of no grinding, non-contact, no



thermal effect and suitable for cleaning objects made of various materials. At the same time, laser cleaning can solve problems



that cannot be solved by traditional cleaning methods.





1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 0

Model ML-MF100I-LC ML-MF200I-LC ML-MF500I-LC ML-MF1000I-LC ML-QF-WS-JX-HW2000
Laser Power 100W 200W 500W 1000W 2000W
Cooling Way Air Cooling Water cooling
Laser Wavelength 1064 nm
Power Supply AC 220-250V / 50 Hz AC 380V / 50 Hz
Maximum KVA 500W 2200W 5100W 7500W 14000W
Fiber Length 3m 12-15m 12-15m 12-15m 12-15m
Dimension 460x285x450mm 1400X860X1600 mm 2400X860X1600mm+555X525X1080mm (external chiller size)
Focal length 210mm
Focal depth 2mm 5mm 8mm
Gross Weight 85kg 250kg 310kg 360kg Total 480kg
Handheld Laser Head Weight 1.5kg-3 kg
Working Temperature The service life of the laser is long at constant temperature of 5-40° C (normally at constant temperature of 25 ° C)
Pulse width 20-50k ns
Scan Width 10mm-80mm (customizable additional price)
Laser frequency 20-50k HZ



1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 1



----------------------Model characteristics------------------------------------



1. Compact structure, portable, ergonomic



2. Selective cleaning, accurate cleaning can be achieved for the exact position and size of the product



3. The laser cleaning system is stable, and subsequent maintenance and maintenance costs are low



4. Intelligent operating system, multiple working modes available,



5. No damage to base materials, no consumables



------------------Herolaser Laser Cleaning vs Traditional Cleaning----------



1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 2



--------------Advantages of laser cleaning-------------------------



1. Laser cleaning is a "green" cleaning method, which does not need any chemical agents and cleaning fluids. The waste after cleaning is basically solid powder, small in size, easy to store, recyclable, and can easily solve the environmental pollution problem caused by chemical cleaning;



2. The traditional cleaning method is often contact cleaning, which has a mechanical force on the surface of the object to be cleaned. The surface of the damaged object or the cleaning medium is attached to the surface of the object to be cleaned, which cannot be removed, resulting in secondary pollution. The non abrasive and non-contact nature of laser cleaning makes these problems easy to solve;



3. The laser can be transmitted through optical fiber, cooperated with robot hands and robots to facilitate remote operation, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places;



4. Laser cleaning can remove various types of pollutants on the surface of various materials to achieve a cleanliness that cannot be achieved by conventional cleaning. Moreover, the pollutant on the material surface can be selectively cleaned without damaging the material surface;



5. High laser cleaning efficiency and time saving;



6. Although the one-time investment in purchasing the laser cleaning system is high in the early stage, the cleaning system can be used stably for a long time, with low operating cost and only electricity charge per hour.

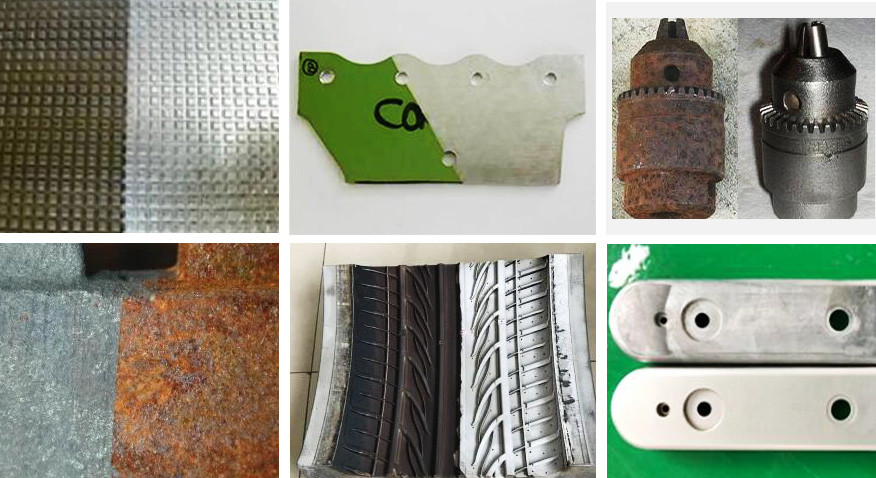

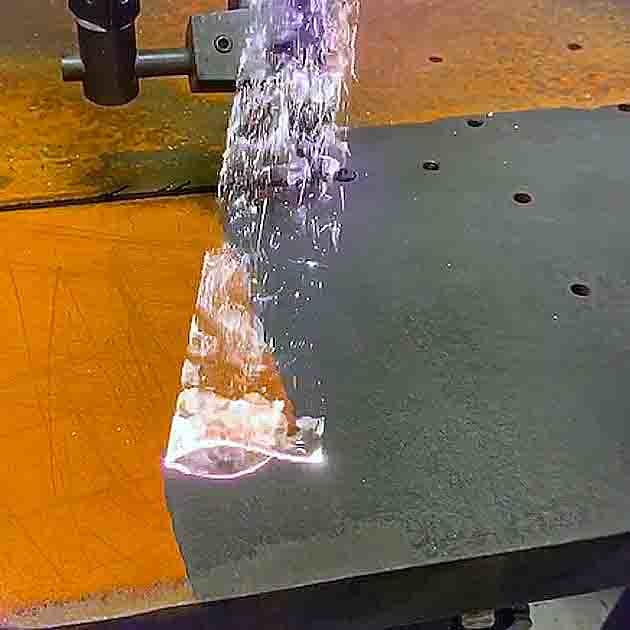

------------------------------Cleaning Effect----------------------------------



1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 3



----------------------Applications---------------------------------------------

1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 4

----------------------Packaging & Transport------------------------------



1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 5  1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 6

                                      Packaging                                                                Transport



----------------------About Herolaser----------------------------------------



1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 7  1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 8



ABOUT HEROLASER

Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.



With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.



Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.



----------------------Certifications--------------------------------------------



1000w HEROLASER CW Laser Rust Removal Machine For Cleaning 9



----------------------After Sales Service------------------------------------



1) 2 year guarantee for laser source(people damaged are charged)
2) Full technical support / by e-mail, call and video
3) Spare parts supply.
4) Free online training installation and operation
5 12 hours quick feedback & after-sales services
6) ODM/OEM service

Pre-Sales Service
1) Free pre-sales 7*24 hours rapid response services / cousulting
2) Free sample testing / inspection
3) Free design of fixtures as customers / distributor required
4) Strict quality control for our products
5) Quick delivery time



----------------------FAQ---------------------------------------------------------



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, L/C, CAD, OA, Trade Insurance, Alibabapay.

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.


6. Can I go to the factory to test the machine before shipment?
Sure you can.


7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8.
How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

Application Industry Environmental protection industry Shipbuilding Industry Building Materials Restoration of Cultural Relics Rail Transit Construction Machine
