Herolaser 8mm 10mm Laser Cutting Machine For Metal Sheet Panel Fencing Industrial

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-CB-4020FA-IW
Minimum Order Quantity 1 set
Price $25000-$140000
Packaging Details Wooden case
Delivery Time 25-45 days
Payment Terms L/C, T/T, D/A, D/P, T/T
Supply Ability 25 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML-CB-4020FA-IW Laser Power 3000w
Laser Wave Length 1060nm-1070nm Positioning Accuracy ±0.03 Mm
Repeated Position Accuracy ±0.02 Mm Max Speed Of X-axis ≤20 M/min
Max Speed Of Y-axis ≤20 M/min Max Speed Of Z-axis ≤17 M/min
Power Supply AC220V±5%50Hz Dimension Size 1880mm*1450mm*2100mm
High Light

20m/min Laser Cutting Machine

,

Fencing Industrial Laser Cutting Machine

,

Fencing Fiber Laser Cutting Machine

Leave a Message
Product Description

Herolaser CNC Fiber Laser Cutting Cutter Machine for Metal Sheet



Laser type Fiber laser
Laser wavelength 1060mm~1070nm
Cutting range 1300mm*900mm
Laser power 500w/800w/1000w/1500w/2000w/12000w
Cutting thickness 0.3-10mm(depends on materials)
Minimum line width 0.1mm
X/Y axis positioning accuracy ±0.02mm
Repeated positioning accuracy of X/Y axis ±0.01mm
Maximum speed ≤70m/min
Maximum acceleration ≤1G
Machine weight 1500kg
Loadable weight 200kg
Power Requirements Single-phase AC 220V,50Hz,32A
Size 2200*1850*1600mm

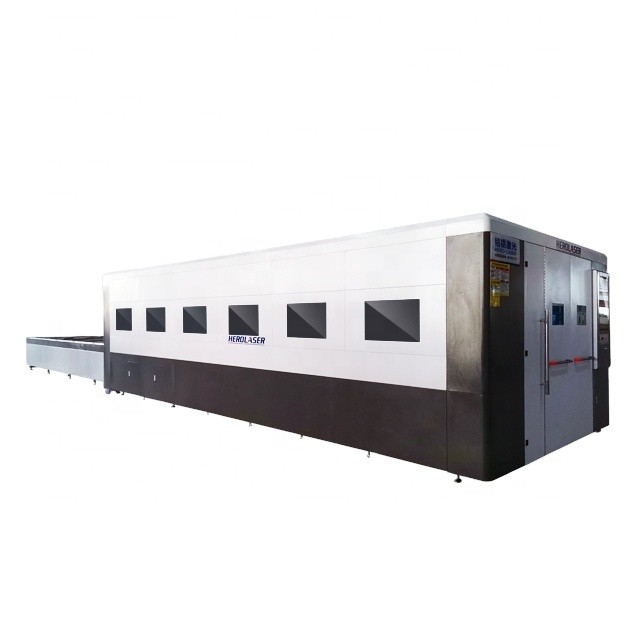

Model Profile



Herolaser 8mm 10mm Laser Cutting Machine For Metal Sheet Panel Fencing Industrial 0



----Comparison of multiple types of cutting--------------------



Process Name Cutting Seam (mm) Deformation Accuracy Graphic Changes Speed Cost
Laser Cutting Very Small 0.1-0.3 Very Small Height 0.2mm Be Prone To Lower Higher
Plasma Cutting Less More 1Mm High Be Prone To Higher Lower
Water Cutting More Small High Easy Higher Higher
Die Cutting Less More Low Hard High Lower
Sawing More Less Low Hard Very Slow Lower
Wire Cutting Less Very Small High Easy Very Slow Higher
Gas Fuel Cutting Great Serious Low Easier Low Lower
Electric Spark Cutting Very Small Very Small High Easy Very Slow Very High

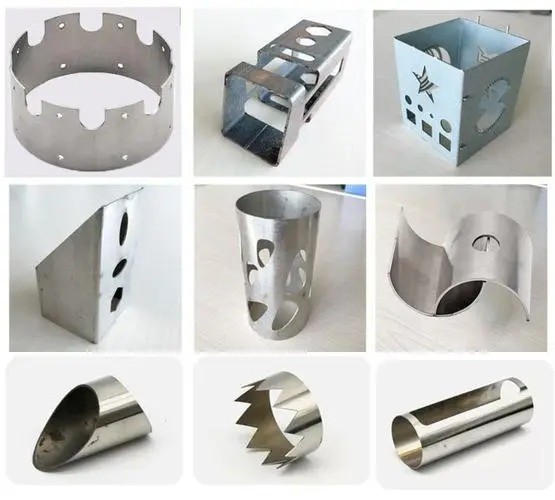

--------------Cutting sample display----------------------------------



Herolaser 8mm 10mm Laser Cutting Machine For Metal Sheet Panel Fencing Industrial 1



Model Features



1. Long Service Life
The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely.

2. Stable Cutting Performance
Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.

3. Bigger Adjustment Range
The laser cutting incision is thin and narrow, both sides of the incision are parallel and perpendicular to the surface, and the dimensional accuracy of the cutting parts can reach ± 0

4. Precise Cutting
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat



5. High Cutting Efficiency

Due to the transmission characteristics of laser, laser cutting machines are generally equipped with multiple NC workbenches, and the whole cutting process can be completely controlled by NC. During operation, it can be used for cutting parts with different shapes by changing the NC program. It can realize both two-dimensional and three-dimensional cutting.





Advantages



1. 10kW+ Cutting Process Package



2. Gas-saving Nozzle with Steady Flow



3. Active Anti-collision Function



4. No Quiver when Cutting Thin Sheet

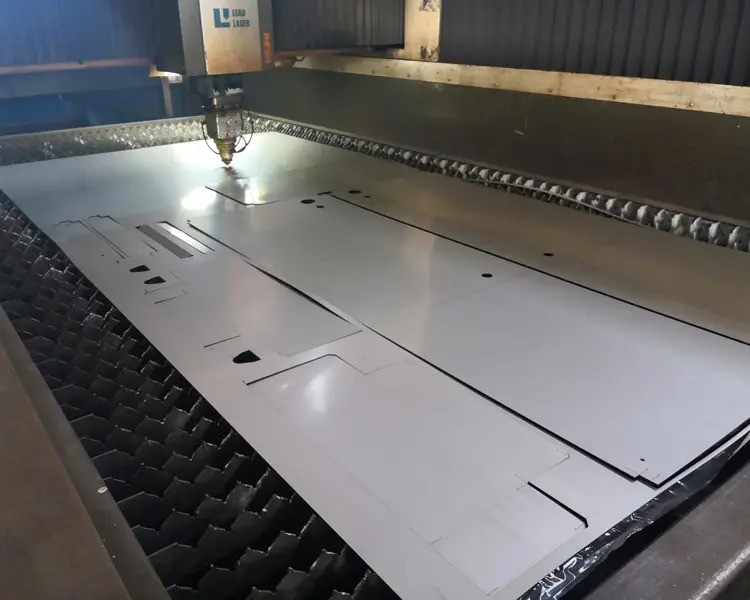

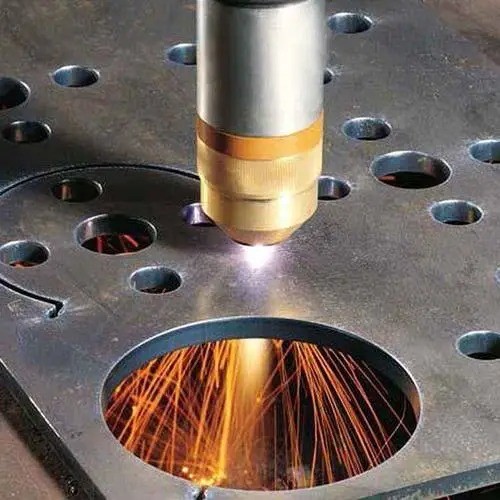

Applications



Herolaser 8mm 10mm Laser Cutting Machine For Metal Sheet Panel Fencing Industrial 2 Herolaser 8mm 10mm Laser Cutting Machine For Metal Sheet Panel Fencing Industrial 3

Herolaser 8mm 10mm Laser Cutting Machine For Metal Sheet Panel Fencing Industrial 4 Herolaser 8mm 10mm Laser Cutting Machine For Metal Sheet Panel Fencing Industrial 5



Pre-Sales Service



1) Free pre-sales 7*24 hours rapid response services / cousulting
2) Free sample testing / inspection
3) Free design of fixtures as customers / distributor required
4) Strict quality control for our products
5) Quick delivery time

After-sales Service

1) 2 year guarantee for laser source(people damaged are charged)
2) Full technical support / by e-mail, call and video
3) Spare parts supply.
4) Free online training installation and operation
5 12 hours quick feedback & after-sales services
6) ODM/OEM service



FAQ



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, L/C, CAD, OA, Trade Insurance, Alibabapay.

3.
Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.


6. Can I go to the factory to test the machine before shipment?
Sure you can.


7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8.
How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
