Purple Horn 6012D Pipe Tube CNC Laser Cutting Machine For Metal Acrylic

-------------------------Product informatioin------------------------------------

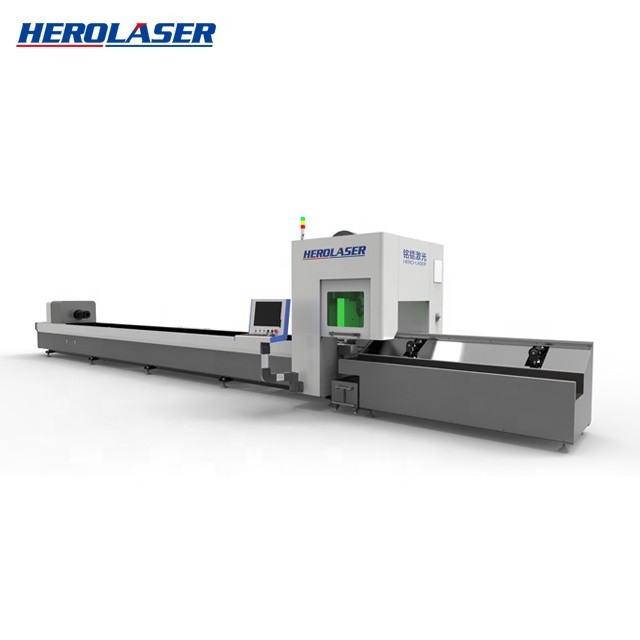

ML-P6035D laser pipe cutting machine is a standard optical fiber laser pipe cutting machine developed by Purple Horn. It adopts long-term stable and reliable advanced medium and high-power optical fiber laser, selects high-precision gear rack, imported high-precision linear guide rail and other high-efficiency transmission components, and is a precision CNC automatic laser pipe cutting machine assembled through WEIHONG professional pipe cutting control system. It is a high-tech product integrating the latest laser cutting, precision machinery, numerical control technology and other disciplines. It is mainly used for cutting metal pipes such as carbon steel pipe and stainless steel pipe (square pipe, round pipe and rectangular pipe). It is a useful cutting tool in the metal pipe processing industry. The bed adopts horizontal gantry structure and combined transmission mode of gear rack and screw. Transmission components such as reducer, guide rail and gear rack are well-known brands. It has the characteristics of stable structure, good rigidity, light weight and high dynamic response. It is a professional laser pipe cutting machine with high efficiency, precision and stability.

-------------------------Product Parameters-------------------------------------

-------------------------Details of Product-----------------------------------------

------------------------------------Features-------------------------------------
- The shortest tail material is 110mm.

- Very low operation and maintenance costs.

- The laser cutting head will not contact the material surface and will not scratch the workpiece.

- The front chuck maintains the full stroke without changing the claw.

- High speed idle stroke, high acceleration, fast cutting response, not easy to burn corners.

- The rear chuck vacuums at the rear and the front chuck vacuums at the side. The tube wall is cleaner and there is less cutting dust and smoke.

- The height of the feeding fixed support wheel can be adjusted manually, and the blanking is a combination of follow-up support and slope sliding.

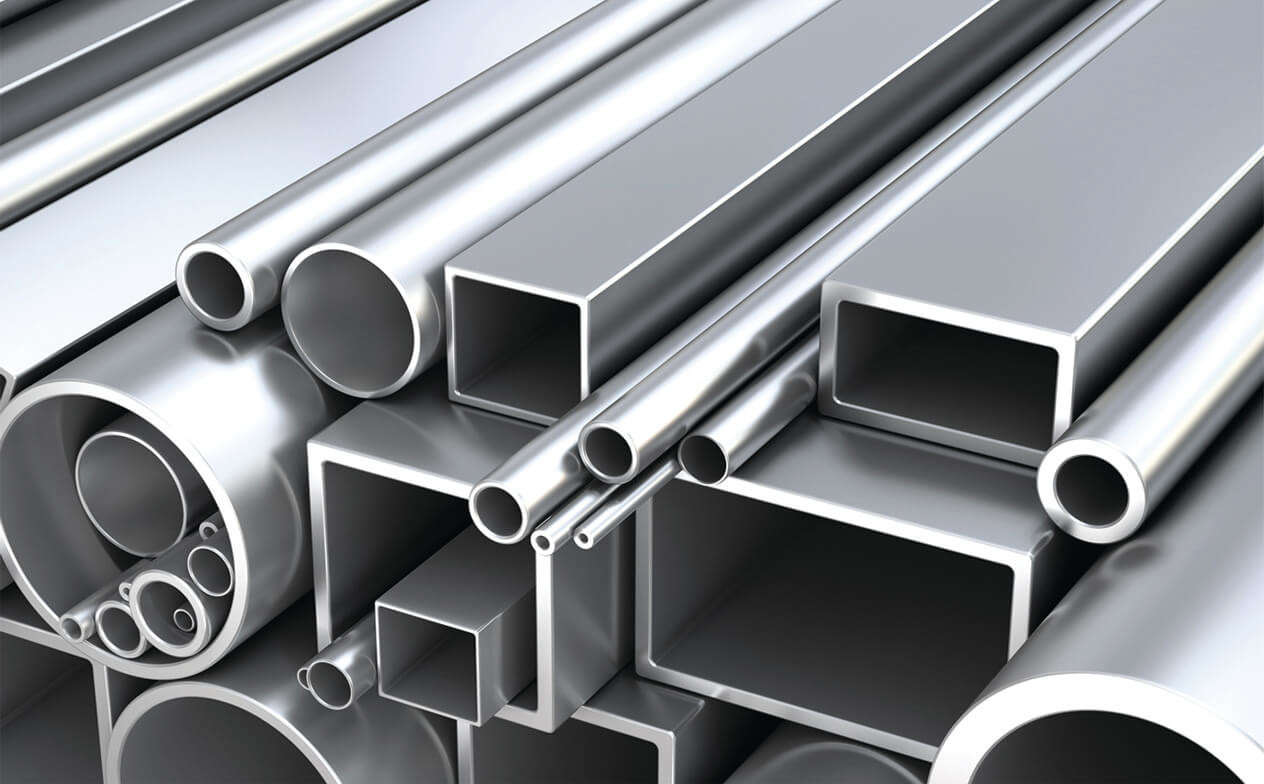

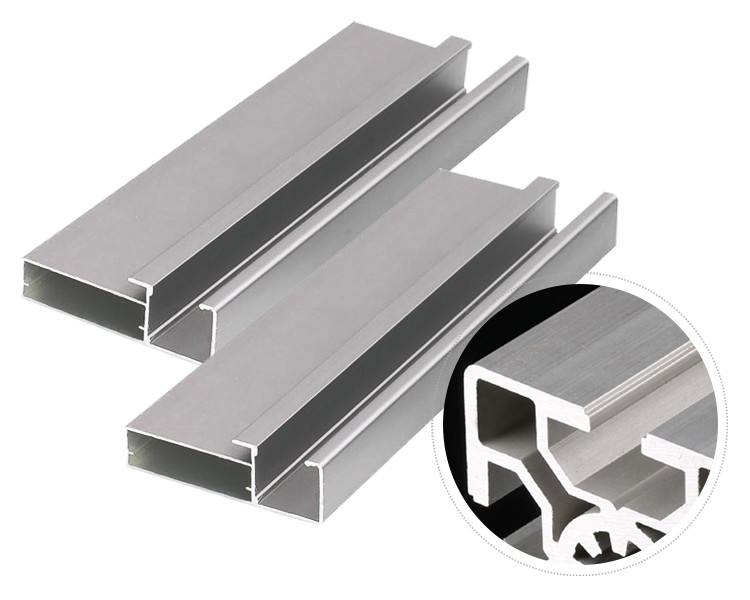

- High-speed and high-quality laser cutting can be performed on various profiles such as round pipe, square pipe, rectangular pipe, waist round pipe, angle steel and C-section steel.

- The pipe cutting section is smooth without burr, slag, blackening and yellowing, which can easily realize the cutting of various complex graphics.

-------------------------Advantages of laser cutting---------------------------

- Pneumatic Chuck - labor saving and production increasing:
Pneumatic clamping, large and stable clamping force to ensure high-precision cutting,
Special support frame can avoid pipe sagging and deformation, improve cutting accuracy and prolong the service life of chuck.

- Intelligent Large Screen Operating System:
Intelligent operation pipe cutting system, simple interface operation, efficiency greatly improved, unique graphic database without manual programming.

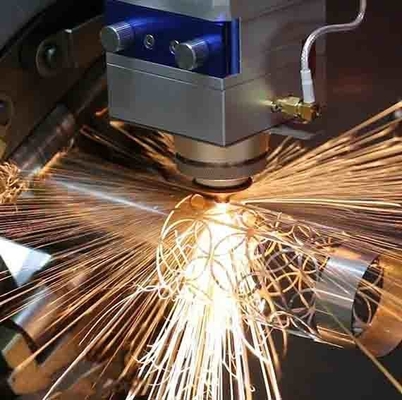

- Automatic Sensing Laser Cutting Head
High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the material surface to ensure the perfection of the workpiece.

- Horizontal Gantry Structure
Gear rack and screw combined transmission mode can obtain high stability, good rigidity, light weight and high dynamic response.

---------------------------------Cutting Effect--------------------------------------------

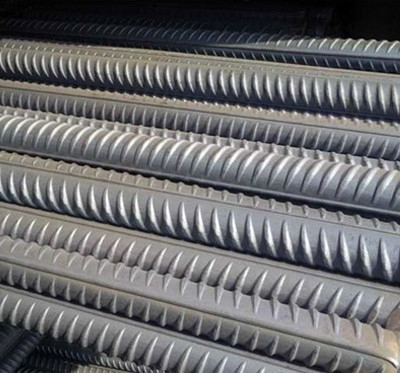

-------------------------Applicable Industry------------------------------------------------









-------------------------After-sales Services--------------------------------------------------



① 2 year guarantee for laser source(people damaged are charged)



② Full technical support / by e-mail, call and video



③ Spare parts supply



④ Free online training installation and operation



⑤ 12 hours quick feedback & after-sales services



⑥ ODM/OEM service



-------------------------After-sales Services------------------------------------------------



1. What model does Purple Horn produce?

Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Purple Horn Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Purple Horn accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9.How will you guarantee after-sales services?

We offer two years warranty for laser source, one year for the machine.
