Herolaser 3015 Series Sheet Laser Cutter 1000w 2000w 3000w 6000w 12000w 20000w
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | ML-CB-3015FB | Laser Power | Below 3000W |
---|---|---|---|
Laser Wave Length | 1060nm-1070nm | Positioning Accuracy | ±0.03 Mm |
Repeated Position Accuracy | ±0.02 Mm | X/Y Maximum Speed | ≤100 M/min |
X/Y Maximum Acceleration | 0.8G | Machine Weight | 4500KG |
Power Supply | AC220V±5%50Hz | Dimension Size | 8100mm*2650mm*2200mm |
High Light | 100m/min Sheet Laser Cutter,12000w Sheet Laser Cutter,1070nm Metal Cutting Machine |

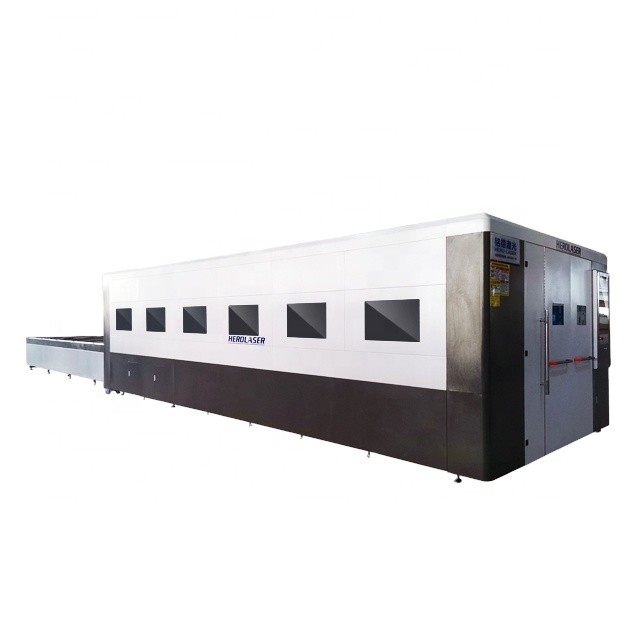

Herolaser CNC Fiber Laser Cutting Cutter Machine for Metal Sheet
Laser type | Fiber laser |
Laser wavelength | 1060mm~1070nm |
Cutting range | 3000mm*1500mm |
Laser power | 1000w/2000w/3000w/6000w/12000w/20000w |
Cutting thickness | 0.3-40mm(depends on materials) |
Minimum line width | 0.1mm |
X/Y axis positioning accuracy | ±0.03mm/m |
Repeated positioning accuracy of X/Y axis | ±0.02mm |
Maximum speed | 100m/min |
Maximum acceleration | ≤1G |
Machine weight | 4500kg |
Power Requirements | Single-phase AC 220V,50Hz,32A |
Size | 8100mm*2650mm*2200mm |
Model Profile
----Comparison of multiple types of cutting--------------------
Process Name | Cutting Seam (mm) | Deformation | Accuracy | Graphic Changes | Speed | Cost |
Laser Cutting | Very Small 0.1-0.3 | Very Small | Height 0.2mm | Be Prone To | Lower | Higher |
Plasma Cutting | Less | More | 1Mm High | Be Prone To | Higher | Lower |
Water Cutting | More | Small | High | Easy | Higher | Higher |
Die Cutting | Less | More | Low | Hard | High | Lower |
Sawing | More | Less | Low | Hard | Very Slow | Lower |
Wire Cutting | Less | Very Small | High | Easy | Very Slow | Higher |
Gas Fuel Cutting | Great | Serious | Low | Easier | Low | Lower |
Electric Spark Cutting | Very Small | Very Small | High | Easy | Very Slow | Very High |

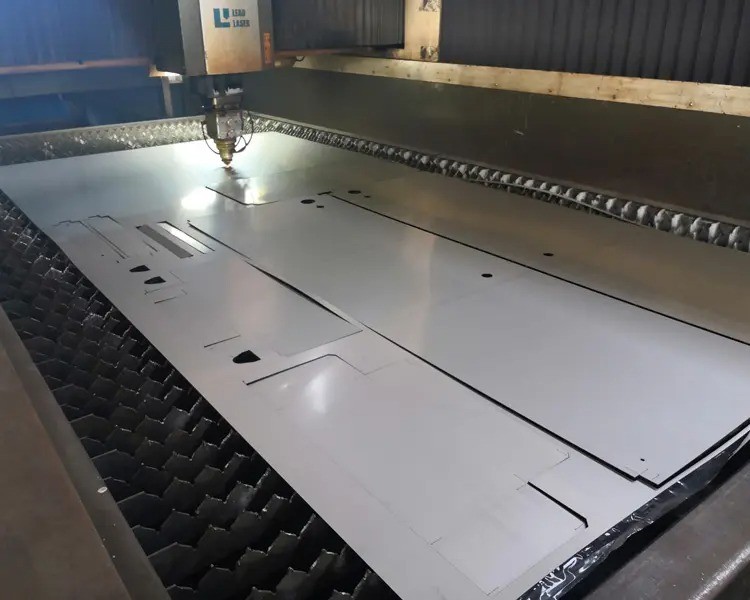

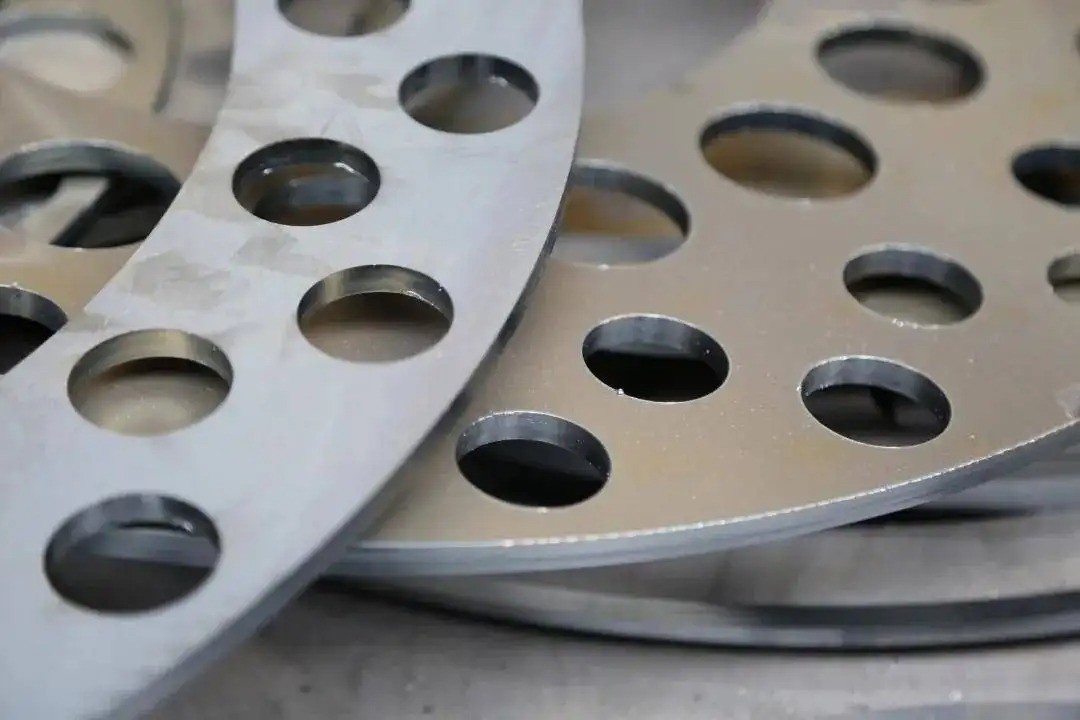

--------------Cutting sample display----------------------------------
Model Features
1. Can cut all kinds of graphics on planiform plates.
2. High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.
3. The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
4. Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.
5. Good processing flexibility, can process any graphics.
6. It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.
7. The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.
8. Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.
Advantages
1. 10KW+ Cutting Process Package
2. Gas-saving Nozzle with Steady Flow
3. Active Anti-collision Function
4. No Quiver when Cutting Thin Sheet
Applications
Pre-Sales Service
1) Free pre-sales 7*24 hours rapid response services / cousulting
2) Free sample testing / inspection
3) Free design of fixtures as customers / distributor required
4) Strict quality control for our products
5) Quick delivery time
After-sales Service
1) 2 year guarantee for laser source(people damaged are charged)
2) Full technical support / by e-mail, call and video
3) Spare parts supply.
4) Free online training installation and operation
5 12 hours quick feedback & after-sales services
6) ODM/OEM service
FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.
2. What are the payment methods of Herolaser Company?
T/T, L/C, CAD, OA, Trade Insurance, Alibabapay.
3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.
4. Can I visit the factory?
Available to have a visit to our factory at any time.
5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.
6. Can I go to the factory to test the machine before shipment?
Sure you can.
7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.
8. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
