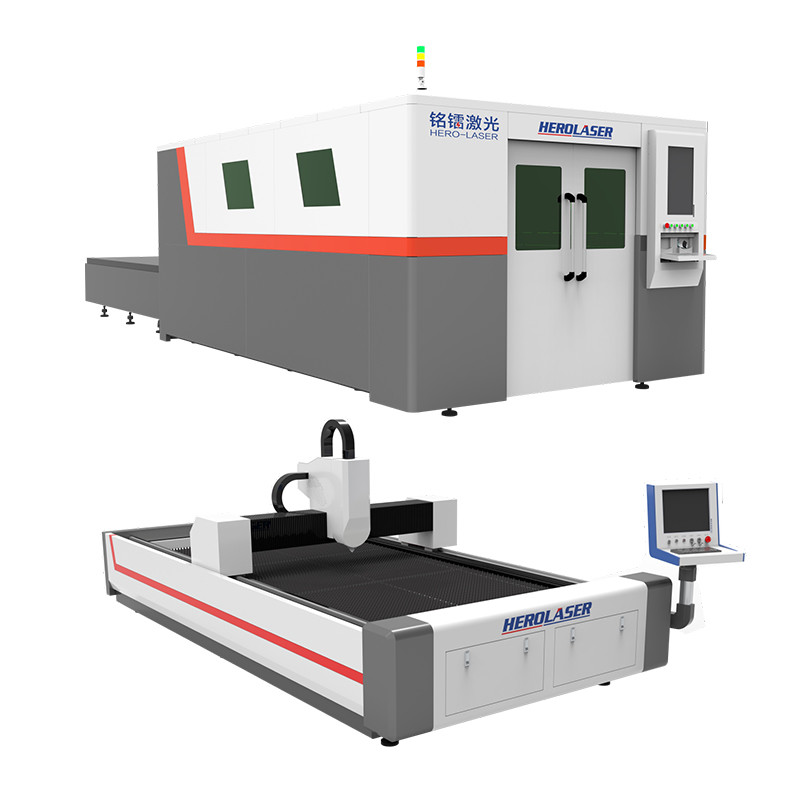

Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min

  • Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min
  • Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min
  • Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min
Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-CB-3015T
Minimum Order Quantity 1 set
Price $25000-$140000
Packaging Details Wooden case
Delivery Time 25-45 days
Payment Terms L/C, T/T, D/A, D/P, T/T
Supply Ability 25 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML-CB-3015T Laser Power 1000W, 2000W, 3000W, 6000W, 12000W, 2000W
Laser Wave Length 1060nm-1070nm Positioning Accuracy ±0.03mm/m
Repeated Position Accuracy ±0.02mm X/Y Maximum Speed ≤100m/min
X/Y Maximum Acceleration 0.8G Machine Weight 2400KG
Power Supply AC220V±5%50Hz Dimension Size 4800mm*2250mm*1800mm
High Light

Laser Cutting Machine ISO9001

,

Laser Cutting Machine 100m/min

,

Fiber Laser Cutting Machine 1070nm
Leave a Message
Product Description

Herolaser CNC Fiber Laser Cutting Cutter Machine for Metal Sheet



Laser type Fiber laser
Laser wavelength 1060mm~1070nm
Cutting range 3000mm*1500mm
Laser power 1000w/2000w/3000w/6000w/12000w/20000w
Cutting thickness 0.3-40mm(depends on materials)
Minimum line width 0.1mm
X/Y axis positioning accuracy ±0.03mm/m
Repeated positioning accuracy of X/Y axis ±0.02mm
Maximum speed 100m/min
Maximum acceleration 0.8G
Machine weight 2400kg
Power Requirements Single-phase AC 220V,50Hz,32A
Size 4800mm*2250mm*1800mm



Model Profile



Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min 0



----Comparison of multiple types of cutting--------------------



Process Name Cutting Seam (mm) Deformation Accuracy Graphic Changes Speed Cost
Laser Cutting Very Small 0.1-0.3 Very Small Height 0.2mm Be Prone To Lower Higher
Plasma Cutting Less More 1Mm High Be Prone To Higher Lower
Water Cutting More Small High Easy Higher Higher
Die Cutting Less More Low Hard High Lower
Sawing More Less Low Hard Very Slow Lower
Wire Cutting Less Very Small High Easy Very Slow Higher
Gas Fuel Cutting Great Serious Low Easier Low Lower
Electric Spark Cutting Very Small Very Small High Easy Very Slow Very High

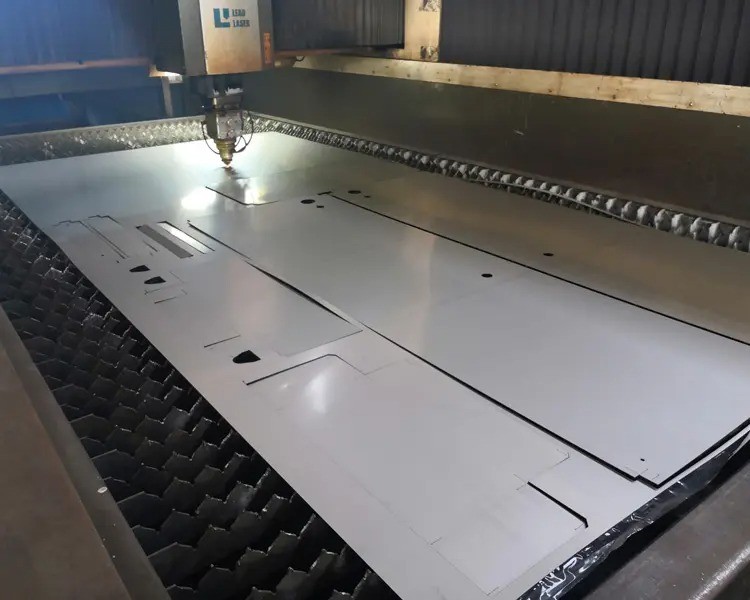

--------------Cutting sample display----------------------------------



Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min 1



Model Features



1. Can cut all kinds of graphics on planiform plates.


2. High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.


3. The laser cutting head will not touch the surface of the material and will not scratch the workpiece.


4. Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.


5. Good processing flexibility, can process any graphics.


6. It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.


7. The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.


8. Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.



Advantages



1. 10KW+ Cutting Process Package



2. Gas-saving Nozzle with Steady Flow



3. Active Anti-collision Function



4. No Quiver when Cutting Thin Sheet





Applications



Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min 2 Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min 3

Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min 4 Herolaser ML-CB-3015T 3015 Series 2000w Laser Cutting Machine 100m/min 5



Pre-Sales Service



1) Free pre-sales 7*24 hours rapid response services / cousulting
2) Free sample testing / inspection
3) Free design of fixtures as customers / distributor required
4) Strict quality control for our products
5) Quick delivery time

After-sales Service

1) 2 year guarantee for laser source(people damaged are charged)
2) Full technical support / by e-mail, call and video
3) Spare parts supply.
4) Free online training installation and operation
5 12 hours quick feedback & after-sales services
6) ODM/OEM service



FAQ



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, L/C, CAD, OA, Trade Insurance, Alibabapay.

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Sure you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
