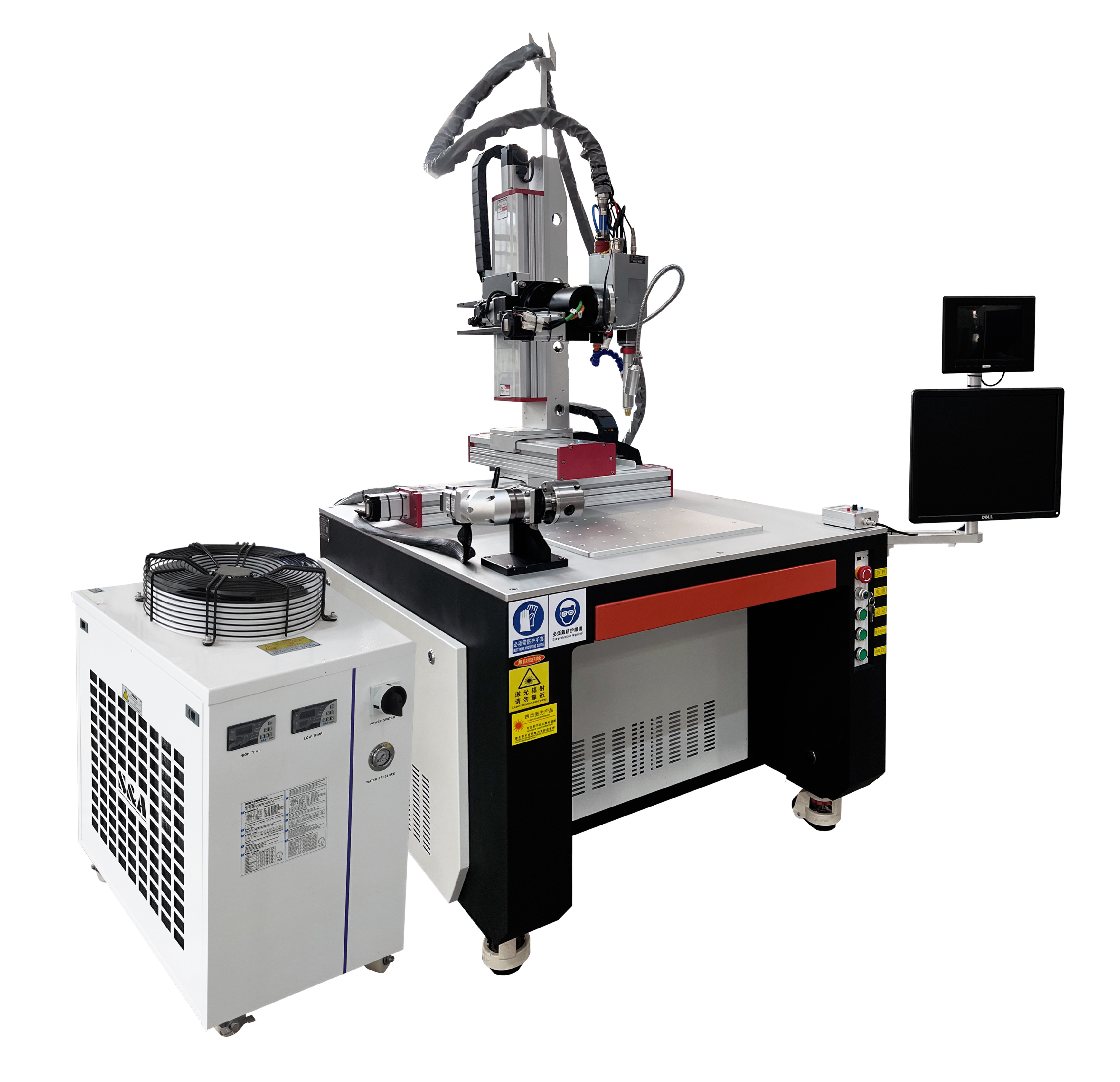

Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel

Place of Origin China
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-WF-ZD-3D-2000
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions 1600*1400*2000MM Machine Weight 280KG
Laser Power 2000W Average Load Power 7.2KW
Welding Depth 3 Mm Focal Spot Diameter 0.15 Mm-0.45 Mm
High Light

ISO9001 Laser Welder Machine

,

3mm Laser Welder Machine

,

CNC Automatic Laser Welding Machine

Leave a Message
Product Description



Parameter
Main technical parameters of the equipment
Product Specifications
S/N
Main component name
Parameter
Remark
1
X axis effective stroke
500mm

2
Y axis effective stroke
300mm

3
Z axis effective stroke
300mm

4
Dimensions
1500×1400×1900mm

5
Machine weight
280kg

6
Module operating speed
Y axis:10m/min
X axis:10m/min
Z axis:5m/min

7
repeated positioning accuracy
±0.02mm

8
Rotating table
Circle runout accuracy ≤0.05mm

9
electricity demand
220V/380V

10
Average load power
6.5KW

Equipment configuration list
Configuration Parameter
S/N
Name
Specifications & Models
QTY
Brand
Remark
1
Fixture mounting plate
350mm×450mm
1
Hero Laser Custom

2
Laser
According to sample welding requirements
1
MAX or IPG

3
Motor
servo motor
3
Huichuan

4
Computer
PC/Industrial Computer
1
Advantech

5
Chiller
According to laser power
1
S & A

6
Welding head
According to sample welding requirements
1
Hero Laser

7
CCD Visual observation system
camera
light source
1
Microsan
Basler/LeTV Light Source

8
Z axis module
300mm stroke
1
Hero Laser Custom
X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9
X axis module
500mm stroke
1
Hero Laser Custom
10
Y axis module
300mm stroke
1
Hero Laser Custom
11
Rotating table
Three-jaw rotary chuck
1
Hero Laser Custom

12
Lower cabinet
Sheet metal welding, paint baking
1
Hero Laser Custom




Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 0

Products Description

1. High speed, large depth and small deformation.



2. It can be welded at room temperature or under special conditions, and the welding equipment is simple. For example, if a laser passes through an electromagnetic field, the beam will not shift; Laser can weld in vacuum, air and some gas environment, and can weld through glass or materials with transparent beam.



3. It can weld refractory materials such as titanium, quartz, etc., and can weld dissimilar materials with good results.



4. After laser focusing, the power density is high. When welding high-power devices, the depth width ratio can reach 5:1, and the maximum can reach 10:1.



5. Micro welding is possible. After focusing, the laser beam can obtain very small light spot, and can be accurately positioned, which can be applied to the assembly welding of micro and small workpieces in mass automatic production. (The minimum facula can reach 0.1mm)



6. It can be used to weld parts that are difficult to access. It is very flexible to perform non-contact remote welding. Especially in recent years, fiber transmission technology has been used in YAG laser processing technology, and the popularity of fiber continuous laser has made laser welding technology more widely promoted and applied, which is more convenient for automatic integration.



7. The laser beam can easily realize the beam splitting according to time and space, and can be processed simultaneously by multiple beams and multiple stations, providing conditions for more precise welding.



Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 1

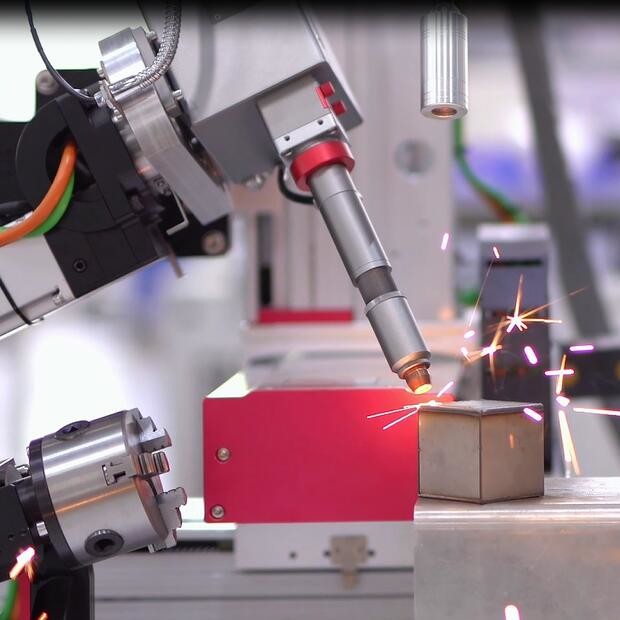

Laser welding machines use high-energy pulsed lasers to weld objects


Herolaser automatic laser welding machine can realize the welding of metal work pieces in straight lines, circles and other arbitrary trajectories, such as phone housing, mobile phone batteries, sensors, medical equipment and other industries.



After the laser beam is focused, the point can be accurately positioned and used for group welding of small and



micro workpieces to achieve mass production.



Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 2

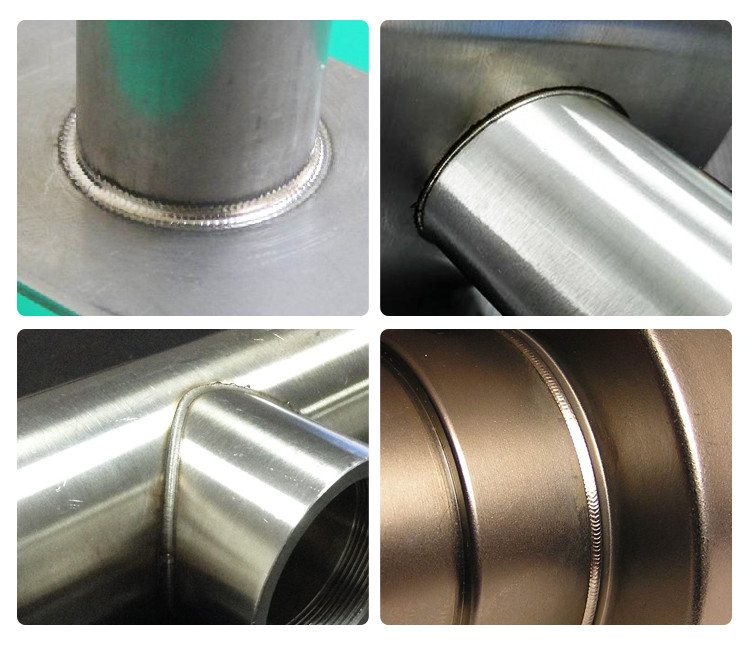

Sample Show
Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 3

Swing welding head



The process that traditional magnetic head cannot complete, the swing welding head only



needs to use 70% of the power, which can save the cost of the laser;



In addition, the swing welding method is adopted, the width of the welding joint is adjustable,



and the welding fault tolerance is strong, which makes up for the small shortcomings of the



laser welding joint. The tolerance range and welding width of the processed parts are



enlarged, and a good welding forming effect is obtained.



Applicable Industry



Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 4 Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 5  Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 6

Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 7

  precision machinery


Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 8

  communications


Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel 9

  handicrafts


Installation Instructions
