Herolaser Automatic Laser Welding Machine , Metal Stainless Steel Soldering Welder
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions | 1600mm×1400mm×1900mm | Machine Weight | 380kg |
|---|---|---|---|
| Electricity Demand | 220V/380V | Average Load Power | 7.5KW |
| Repeated Positioning Accuracy | ±0.02mm | Rotating Table | Circle Runout Accuracy ≤0.05mm |
| High Light | 7.5KW Automatic Laser Welding Machine,380V Laser Soldering Welder,Stainless Steel Laser Soldering Welder |
||
Product Description

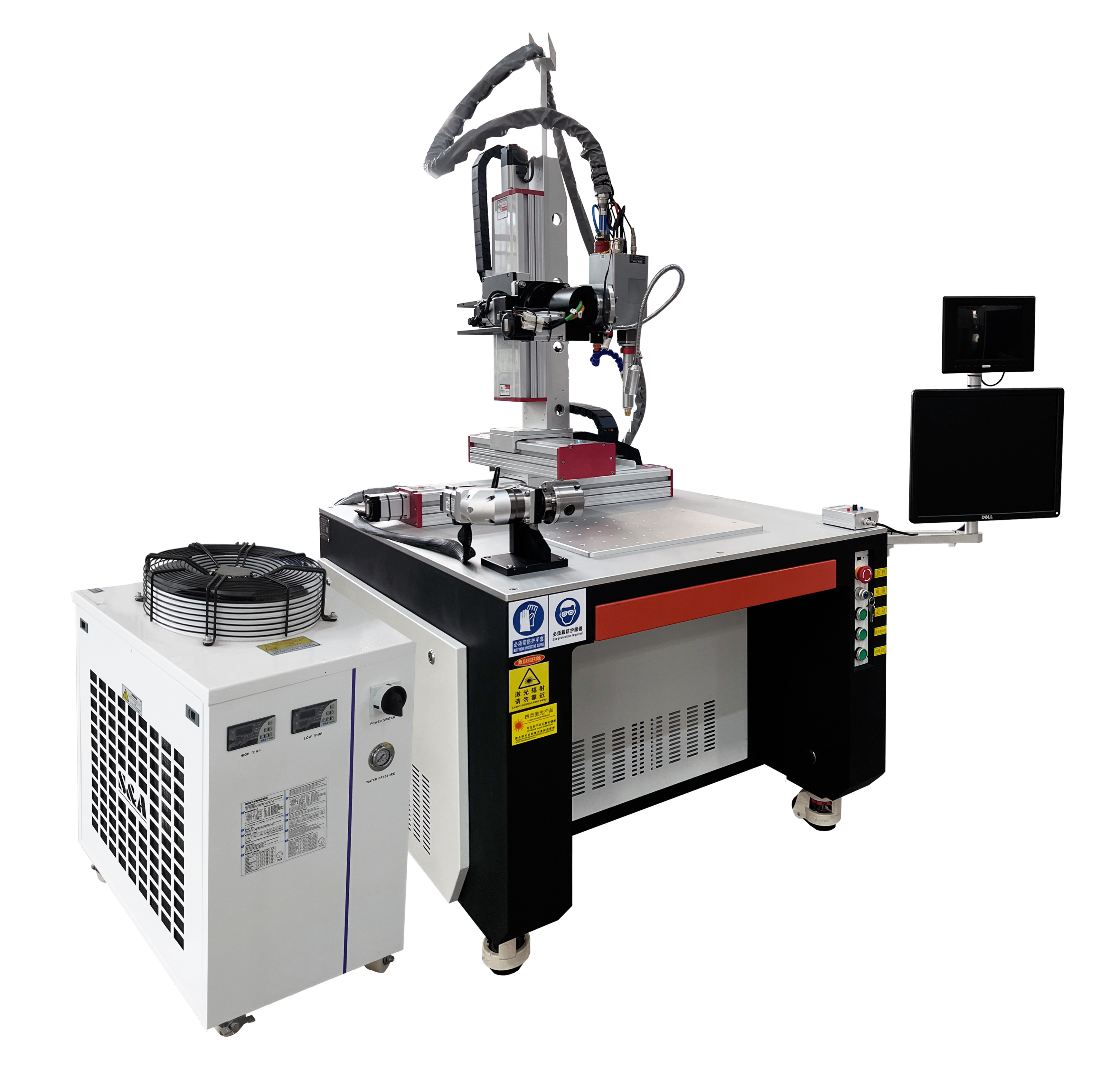

Four-axis Auto Soldering Welding Machine Automatic Laser Welders
Parameter
Products Description
Six-dimensional automatic welding machine
Herolaser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality.
It can also be equipped with a four-dimensional ball screw table, using an imported servo control system, including a rotating table, which can weld cylindrical objects and other objects of various shapes, with a wide range of applications, high precision and fast speed.
The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.
Laser welding is to use high-energy laser pulse to locally heat the material in a small area. The energy radiated by the laser is directed to the internal diffusion of the material through heat transfer, and the material is melted to form a specific molten pool. It is a new type of welding method. Laser welding is mainly aimed at the welding of thin-walled materials and precision parts. It can realize spot welding, butt welding, overlap welding, seal welding, etc.
During the welding process of specific workpieces, the automatic laser welding machine can greatly improve the welding quality by changing the output waveform of laser energy according to the working shape and material. Even some traditional laser welding problems can be solved by changing the output waveform of laser.

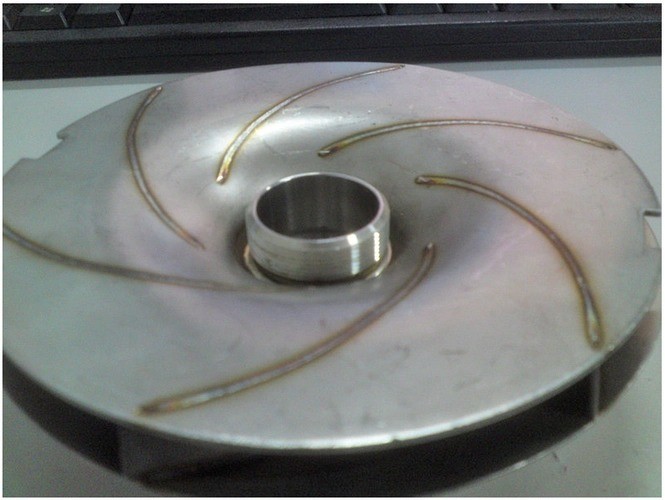

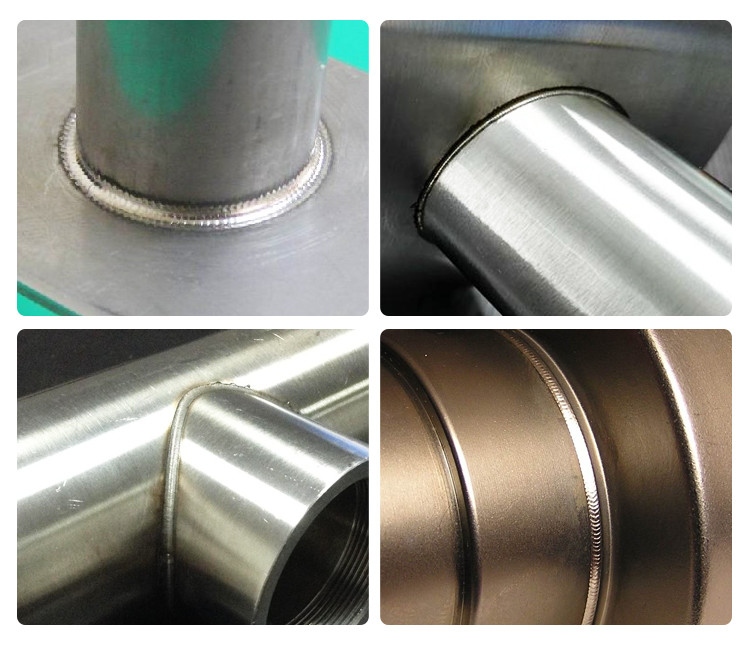

Sample Show
Applicable Industry
mobile phone batteries
jewelry
electronic components
precision machinery
communications
handicrafts
Installation Instructions
Certification
Packaging & Shipment
Our Services
---Pre-Sales Services
① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time
---After-Sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service
FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.
2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay
3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.
4. Can I visit the factory?
Available to have a visit to our factory at any time.
5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.
6. Can I go to the factory to test the machine before shipment?
Of course you can.
7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.
8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.
9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
10. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
