Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number ML-WF-ZD-4D-HW6000
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions 1600×1400mm×1900mm Machine Weight 680kg
Electricity Demand 220V/380V Average Load Power 16.6KW
X Axis Effective Stroke 500mm Y/Z Axis Effective Stroke 300mm
High Light

220V Fiber Laser Welding Machine

,

CNC Fiber Laser Welding Machine

,

16.6KW Laser Welding Machine

Leave a Message
Product Description

Four-axis Auto Soldering Welding Machine Automatic Laser Welders



Parameter
Main technical parameters of the equipment
Product Specifications
S/N
Main component name
Parameter
Remark
1
X axis effective stroke
500mm

2
Y axis effective stroke
300mm

3
Z axis effective stroke
300mm

4
Dimensions
1500×1400×1900mm

5
Machine weight
680kg

6
Module operating speed
Y axis:10m/min
X axis:10m/min
Z axis:5m/min

7
repeated positioning accuracy
±0.02mm

8
Rotating table
Circle runout accuracy ≤0.05mm

9
electricity demand
220V/380V

10
Average load power
16.6KW

Equipment configuration list
Configuration Parameter
S/N
Name
Specifications & Models
QTY
Brand
Remark
1
Fixture mounting plate
350mm×450mm
1
Hero Laser Custom

2
Laser
According to sample welding requirements
1
MAX or IPG

3
Motor
servo motor
3
Huichuan

4
Computer
PC/Industrial Computer
1
Advantech

5
Chiller
According to laser power
1
S & A

6
Welding head
According to sample welding requirements
1
Hero Laser

7
CCD Visual observation system
camera
light source
1
Microsan
Basler/LeTV Light Source

8
Z axis module
300mm stroke
1
Hero Laser Custom
X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9
X axis module
500mm stroke
1
Hero Laser Custom
10
Y axis module
300mm stroke
1
Hero Laser Custom
11
Rotating table
Three-jaw rotary chuck
1
Hero Laser Custom

12
Lower cabinet
Sheet metal welding, paint baking
1
Hero Laser Custom

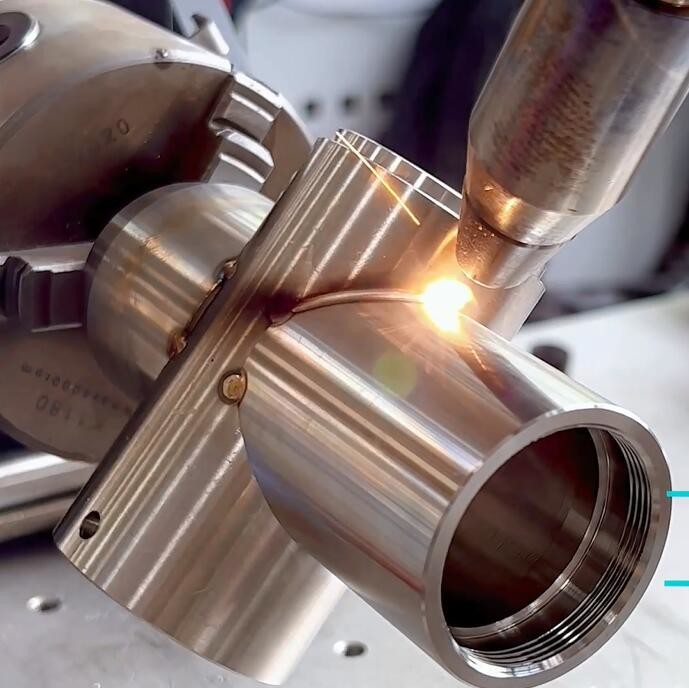

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 0

Products Description



Six-dimensional automatic welding machine

Herolaser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality.

It can also be equipped with a four-dimensional ball screw table, using an imported servo control system, including a rotating table, which can weld cylindrical objects and other objects of various shapes, with a wide range of applications, high precision and fast speed.

The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.

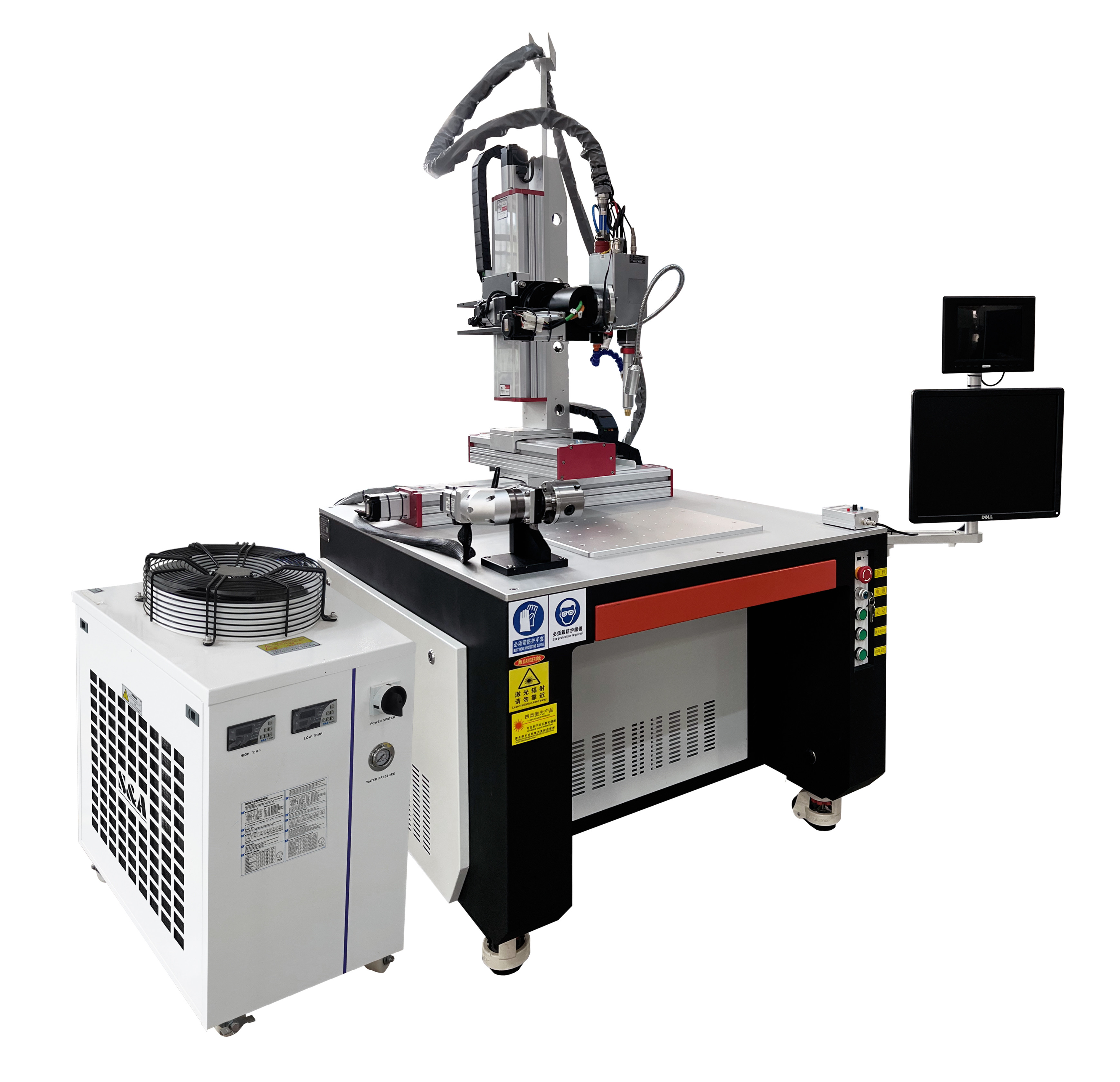

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 1


1. Cost saving: achieved by improving speed, weakening the requirements of manual skills and reducing post welding processes:

a. The speed is 3-10 times of that of traditional welding, and one machine can save 3-5 welders;

b. It takes half a day to complete from learning to proficiency, without relying on manual skills;

c. System control, smooth and even welding seam, reduce grinding and polishing process.



2. Environmental protection: Welding dust splashes and produces harmful gas during the operation of traditional welding machines, which is harmful to the environment and workers' health, while the laser welding machine with laser inscription has almost zero environmental hazard.



3. Less consumables, long service life: 17 years of experience in laser equipment production and R&D, stable technology, and life-long after-sales guarantee for the machine.



4. Strong expansibility: manipulator or CNC welding machine can be expanded and configured, and ordinary handheld head or swinging handheld head can be replaced to meet various welding requirements;



5. Small influence on the hot area: the laser welding hot area is concentrated, the workpiece is free of deformation and welding scar, and the welding is firm.



6. Full set of professional welding nozzles: meet the welding process requirements of butt welding, fillet welding, overlap welding

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 2

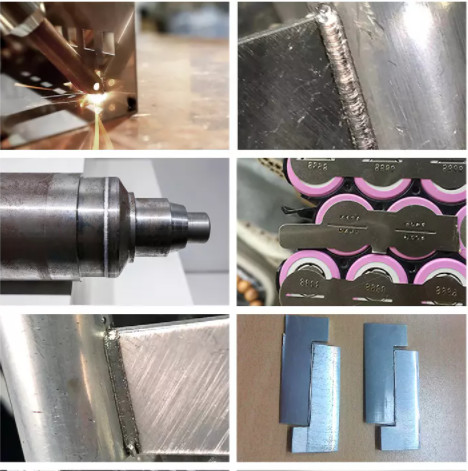

Sample Show
Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 3
Applicable Industry

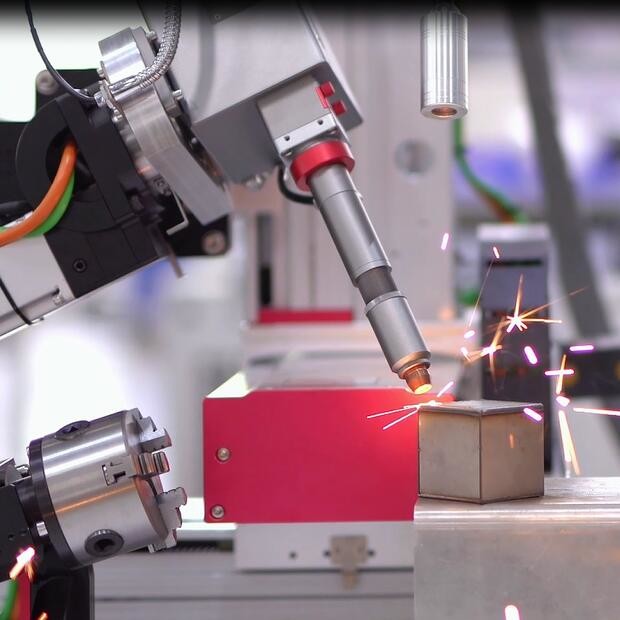

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 4



mobile phone batteries

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 5



jewelry

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 6



electronic components

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 7



precision machinery

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 8



communications

Herolaser Automated CNC Optical Fiber Laser Welding Machine For Stainless Steel 9



handicrafts

Installation Instructions
