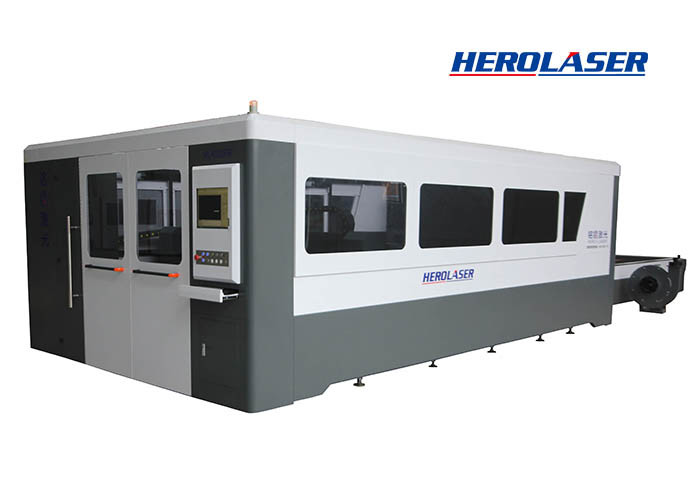

MAX/IPG/RECI 6000W Sheet Metal Fiber Laser Cutting Machine Fully Automatic
Product Details
| Model | ML-CZ-4020FB | Laser Wavelength | 1070nm |
|---|---|---|---|
| Laser Output Power | 6000W | Positioning Accuracy | ±0.03mm/m |
| Effective Cutting | 4000mm*2000mm | Cutting Thickness (related To Laser Power) | Carbon Steel ≤ 22mm; Stainless Steel ≤ 14mm; Aluminum Alloy ≤ 12mm; Brass ≤ 10mm |
| Highlight | MAX Sheet Metal Fiber Laser Cutting Machine,6000W Sheet Metal Fiber Laser Cutting Machine,6000W sheet metal laser welder |
||
Product Description
4020 Fully Automatic CNC Fiber Laser Cutting Machine MAX/IPG/RECI 6000W
- Configuration Parameters
|
|
Item |
Model |
Remark |
|
1 |
Machine tool |
ML-CZ-4020FB |
Purple Horn |
|
2 |
Numerically controlled system |
CypCut |
China |
|
3 |
X/Y1/Y2/Z Servo drive motor |
YASKAWA |
Japan |
|
4 |
High-precision disc gearbox |
MOTOREDUCER |
France |
|
5 |
High precision inclined rack |
YYC |
Taiwan, China |
|
6 |
Z-axis screw |
TBI |
Japan |
|
7 |
Linear guide rail |
HIWIN |
Taiwan, China |
|
8 |
Laser device |
MAX/IPG |
China/Germany |
|
9 |
Cutting head |
Empower/ Precitec |
China/Germany |
|
10 |
Cooling-water machine |
Teyu |
China |
|
11 |
Pneumatic components |
SMC (or equivalent) |
Japan |
|
12 |
Electrical components |
Schneider (or equivalent) |
France |
|
13 |
Technology of machine tool |
Whole welding annealing vibration aging finishing |
China |
|
14 |
Dedusting and ventilation system |
Jiuzhou |
China |
(Note: in case of brand replacement due to delivery date or model change of supplier's products, we only use high-quality products of the same brand, different series or similar brands in the industry, which will never reduce the product quality.)
- Technical Specifications
|
Item |
Technical parameters |
|
|
1 |
Model |
ML-CZ-4020FB |
|
2 |
Laser wavelength |
1070nm |
|
3 |
Laser output power |
6000W |
|
4 |
Effective cutting range |
4000mm*2000mm |
|
5 |
Cutting thickness (related to laser power) |
Carbon steel ≤ 22mm; Stainless steel ≤ 14mm; Aluminum alloy ≤ 12mm; Brass ≤ 10mm |
|
6 |
Positioning accuracy |
±0.03mm/m |
|
7 |
Repeat positioning accuracy |
±0.02mm/m |
|
8 |
Synthesis speed |
120m/min |
|
9 |
Acceleration during idle operation |
1.0G |
|
10 |
Machine tool load-bearing |
1500KG |
|
11 |
Electricity demand |
AC380V±5%/50Hz |
|
12 |
Overall power consumption |
80KW |
|
13 |
Machine dimensions |
11500x3400x2100(mm) |
|
14 |
Machine weight |
Around 9.5T |
|
15 |
Support graphic format |
plt/dxf... |
