FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning

  • FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning
  • FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning
  • FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning
Place of Origin CHINA
Brand Name Purple Horn
Certification CE/ISO9001/FDA
Model Number ML-MF-1500l-LC
Minimum Order Quantity 1 Set
Price $
Packaging Details Plywood Box
Delivery Time 7-10 Work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability 100 Sets Per Month
Product Details
Model ML-MF-1500l-LC Laser Power 1500W
Laser Source Type IPG Fiber Laser Source Laser Wavelength 1064 Nm
Cooling Method Water Cooling Cooling Water Deionized Water
Water Temperature 18-22 ℃ Maximum Power 7500W
Scan Width 10-60mm Auxiliary Gas Compressed Air/Nitrogen
Air Pressure 0.5-0.8 MPa Working Condition 5-40 ℃
Highlight

FDA Fiber Laser Cleaner

,

1064nm fiber Laser Cleaner

,

1064nm Rust Removal Laser
Leave a Message
Product Description

1500W Laser rust removal machine fiber laser removal Metal Oxide





Laser cleaning is a new technology based on the interaction effect between laser and matter.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents,no pollution.

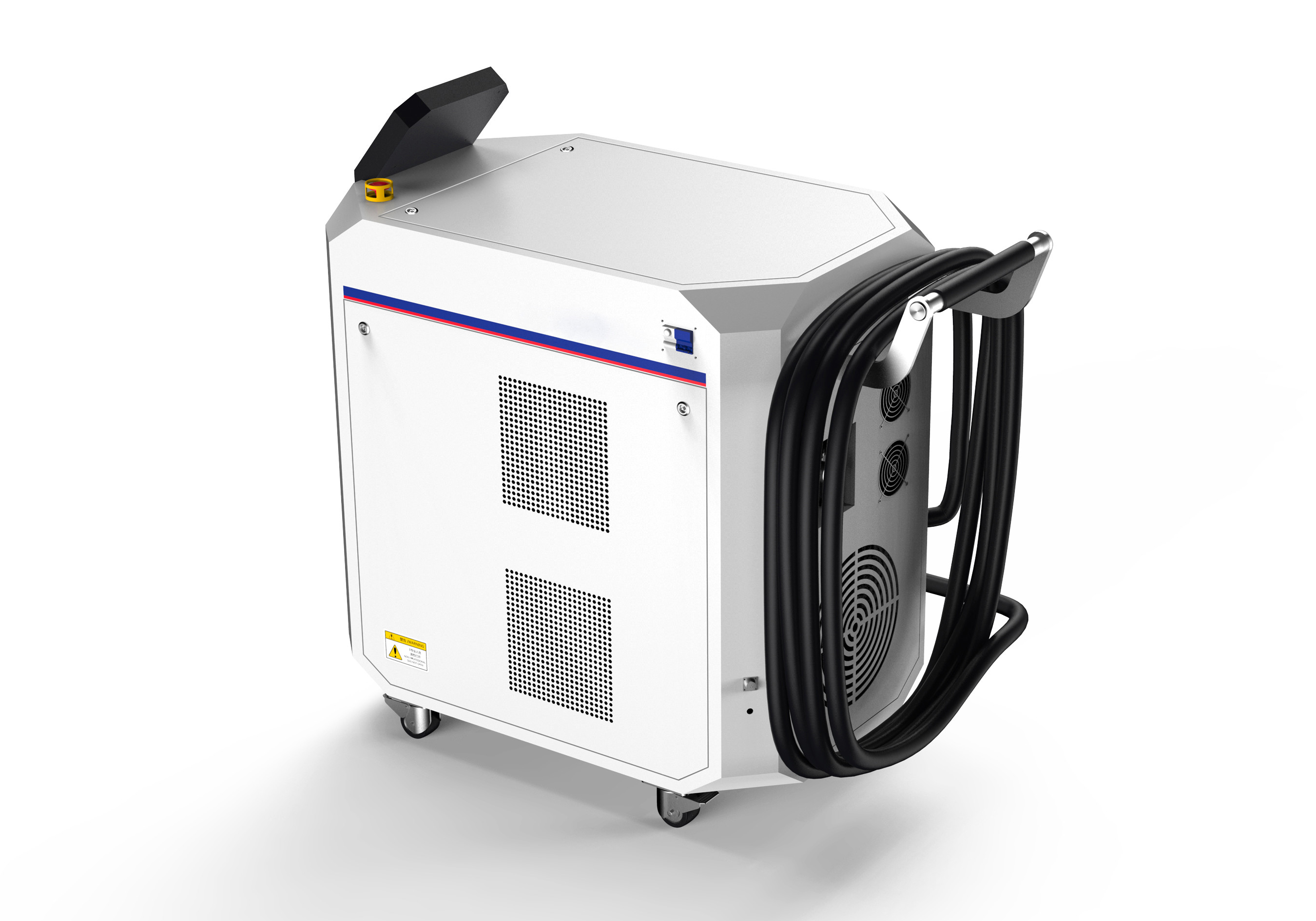

FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning 0



Technical Parameter

FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning 1



Description of high efficiency laser cleaning machine
Model ML-MF-1500l-LC
Laser power 1500W

Laser source type

 IPG fiber laser source
Laser wavelength 1064 nm
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22 ℃

Cabinet size

 1420mm*850mm*1370mm (L*W*H)
Total weight(with water tank)  280kg
Maximum power 7500W
Focal depth  15mm
Scan width 10-60 mm
Auxiliary gas Compressed air/Nitrogen
Air pressure 0.5-0.8 MPa
Optional accessory Handheld / Manipulator
Working condition 5-40 ℃



Features

FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning 2

  • Non-contact cleaning, no damage to work piece
  • Precision positioning, selective cleaning
  • Safe & environment-friendly. Without using chemical detergent or other consumables
  • Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
  • High efficiency, time-saving
Application

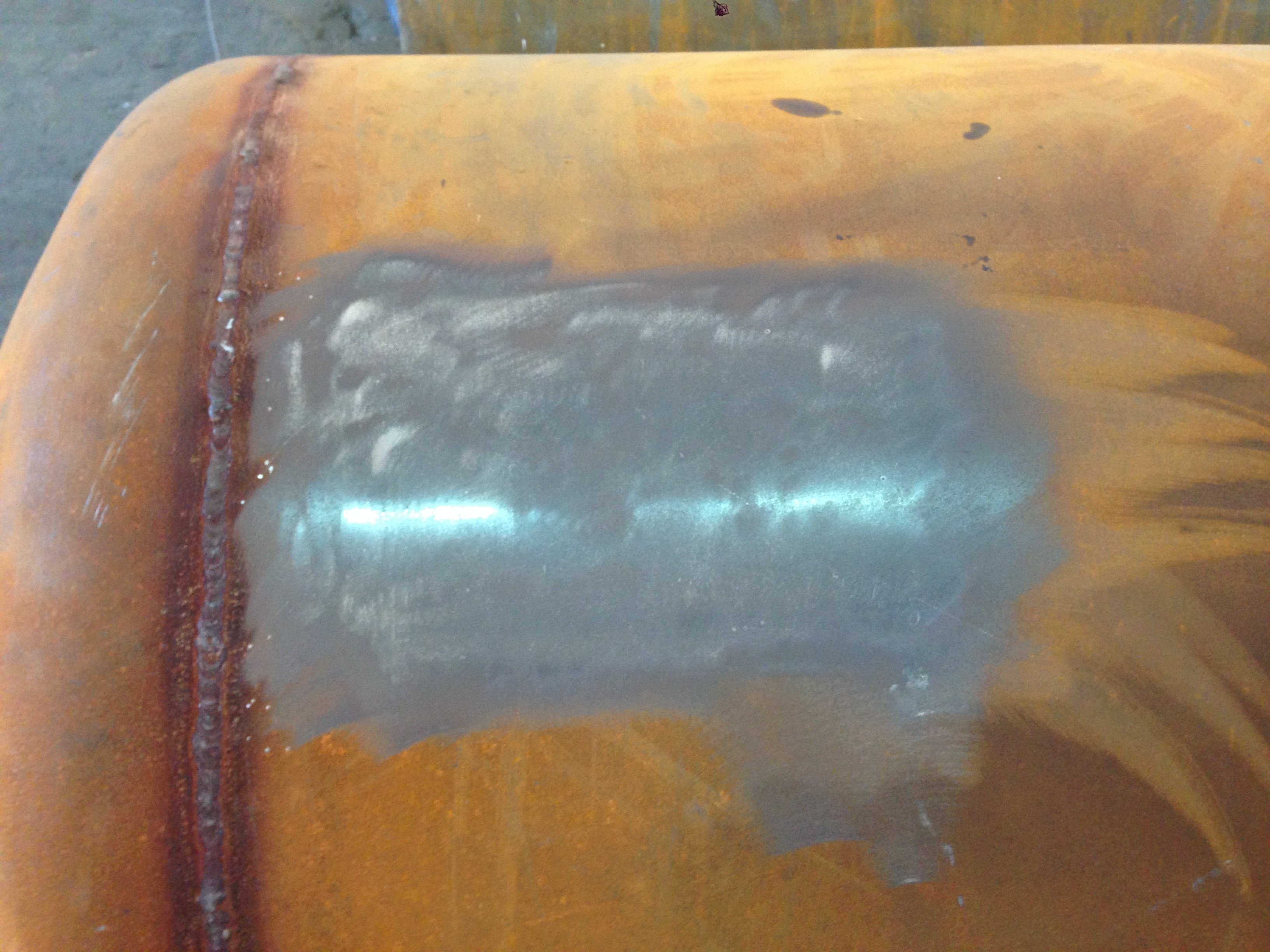

FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning 3



Application
Rust Removal Oxide Removal Molding Cleaning Surface Preparation
Paint Removal Surface Cleaning Stain Removal Surface Roughening
Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning

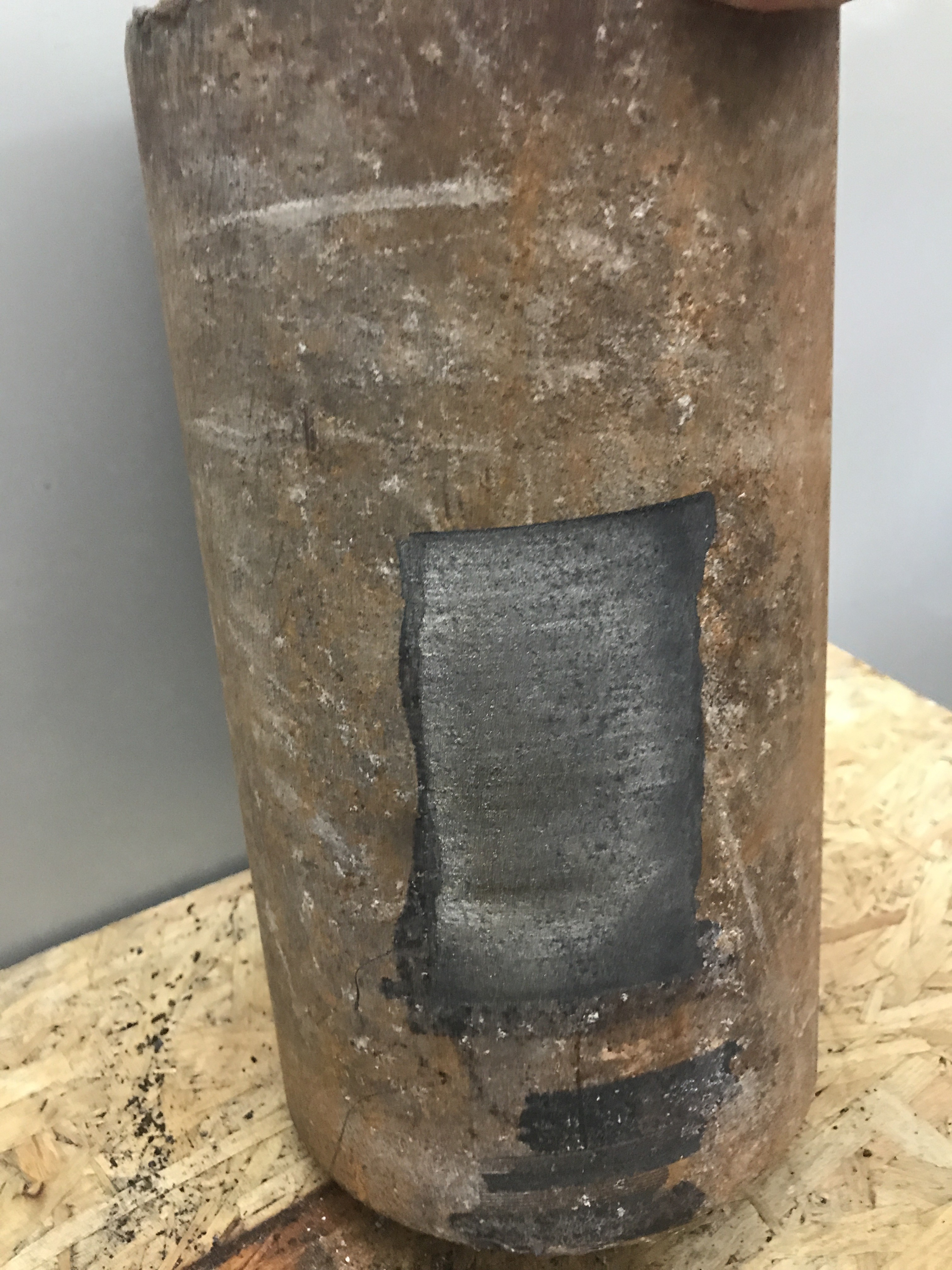

FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning 4



FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning 5

Packaging & Shipping

FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning 6

FDA 1064nm Portable Fiber Laser Cleaner Rust Removal Laser Cleaning 7
