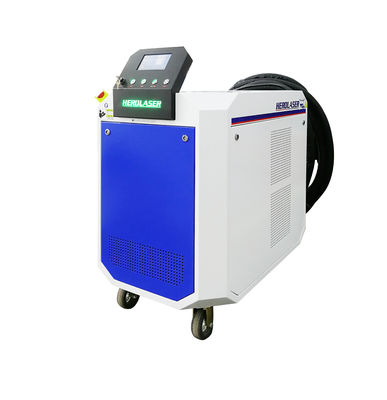

Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover

  • Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover
  • Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover
  • Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover
  • Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover
Place of Origin CHINA
Brand Name Purple Horn
Certification CE/ISO9001/FDA
Model Number ML-MF-200l-LC
Minimum Order Quantity 1 Set
Price $
Packaging Details Plywood Box
Delivery Time 7-10 Work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability 100 Sets Per Month
Product Details
Model ML-MF-200l-LC Laser Power 200W
Laser Source Type IPG Fiber Laser Source Laser Wavelength 1064 Nm
Cooling Method Water Cooling Cooling Water Deionized Water
Water Temperature 18-22 ℃ Maximum Power 200 W
Scan Width 10-60mm Auxiliary Gas Compressed Air/Nitrogen
Air Pressure 0.5-0.8 MPa Working Condition 5-40 ℃
Highlight

IPG 60mm laser cleaning machine

,

FDA 200w laser cleaning machine

,

FDA 200W handheld laser rust remover
Leave a Message
Product Description

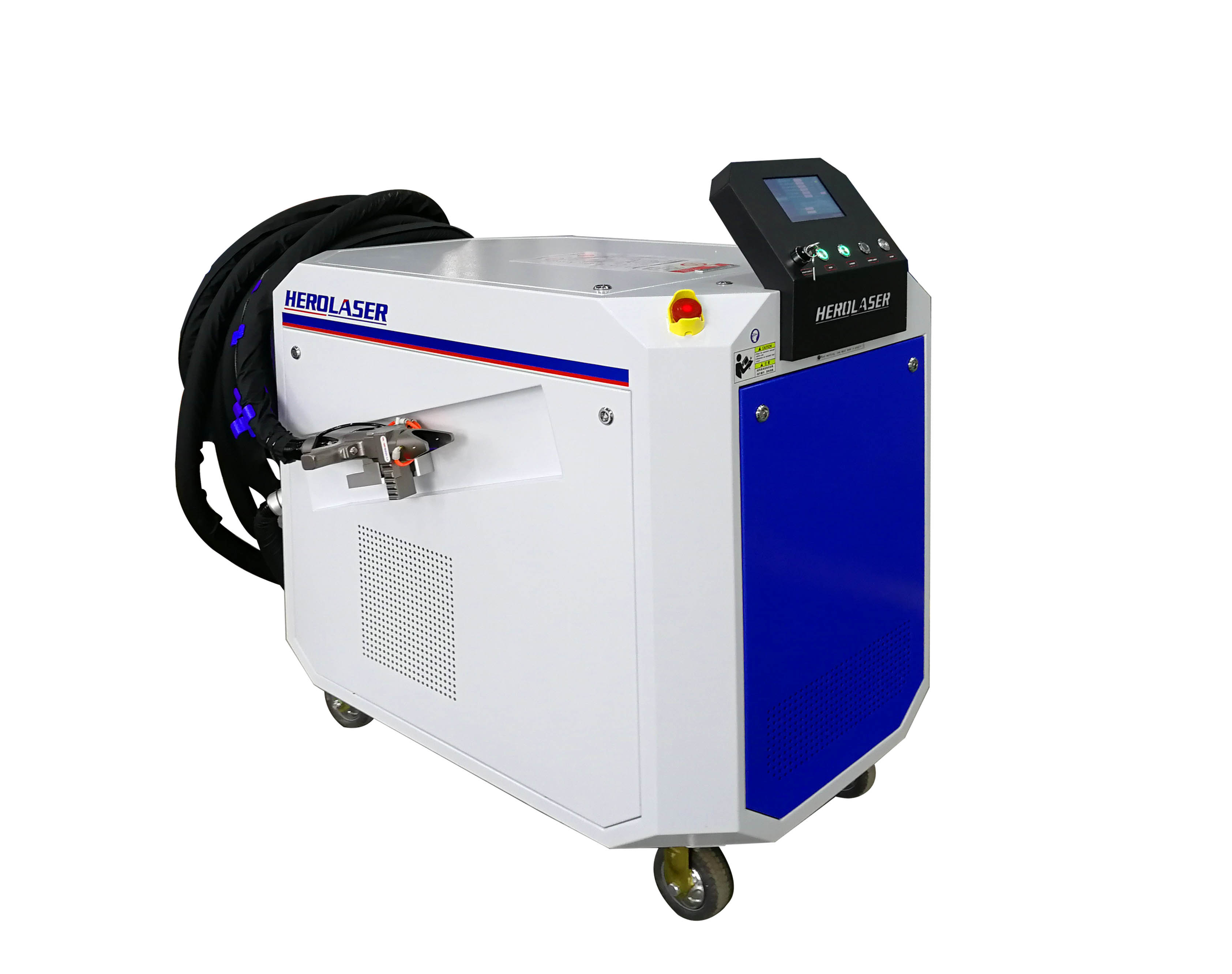

Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 0

Fiber Laser Rust Removal Machine 200W Removal Resin Noncontact Cleaning

laser cleaning machine can remove resin,oil,stain,contaminant,rust,coating,plating,paint etc,.Laser cleaning is a new technology based on the interaction effect between laser and matter.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents,no pollution,no noise,harmless to the human body and the environment,it is a "green"cleaning technology.

Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 1



Technical Parameter

Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 2



Description of high efficiency laser cleaning machine
Model ML-MF-200l-LC
Laser power 200W

Laser source type

 IPG fiber laser source
Laser wavelength 1064 nm
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22 ℃

Cabinet size

 1420mm*850mm*1370mm (L*W*H)
Total weight(with water tank)  225kg
Maximum power 2000W
Focal depth 10mm
Scan width 10-60 mm
Auxiliary gas Compressed air/Nitrogen
Air pressure 0.5-0.8 MPa
Optional accessory Handheld / Manipulator
Working condition 5-40 ℃
Application

Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 3



Application
Rust Removal Oxide Removal Molding Cleaning Surface Preparation
Paint Removal Surface Cleaning Stain Removal Surface Roughening
Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning



Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 4



Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 5

Features

Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 6



  • Non-contact cleaning, no damage to work piece
  • Precision positioning, selective cleaning
  • Safe & environment-friendly. Without using chemical detergent or other consumables
  • Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
  • High efficiency, time-saving
  • Stable laser cleaning system, practically maintenance free
Packaging & Shipping

Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 7

Purple Horn 200W Laser Cleaning Machine , Handheld Laser Rust Remover 8

Five categories in conventional cleaning process:
(1)
Mechanical cleaning process, which cleans the surface by physical smearing, scrubbing, and
brushing. However this ineffective cleaning method can easily damages the surface of the
substrate.
(2)
Chemical etching process, which removes the surface contaminant by spraying or vibrating
through organic cleaning solvent. However dirty areas with multiple material compositions
are difficult to remove and need multiple times of procedures through this environmental
unfriendly cleaning process.
(3)
Sand-blasting cleaning process can cause serve dust pollutions during the process, which
can harm operator’s personal health.
(4)
Ultrasonic cleaning process is based on the ultrasonic vibration phenomenon that can
effectively clean the surface of materials. However materials with large geometry size or
complex shape structure are unable to be cleaned in this method, also the surface can be
easily oxidised after ultrasonic cleaning process.
(5)
Dry-ice cleaning process is a high-running cost cleaning process. It has some drawbacks –
storage of dry-ice and collection of the contaminant after the process.
