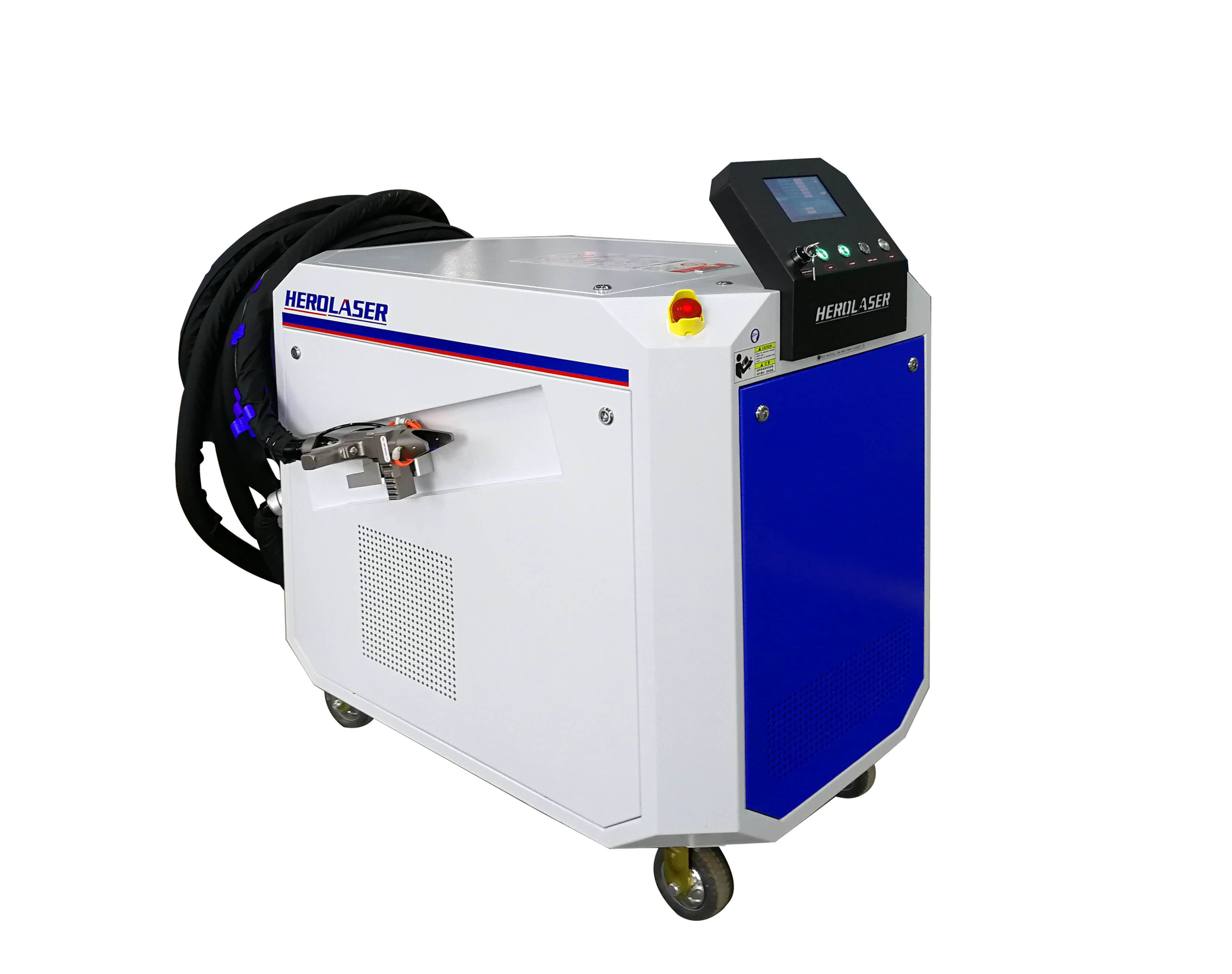

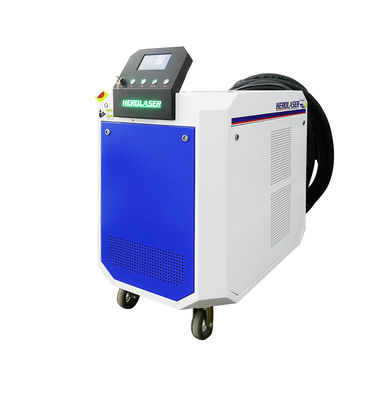

Long Service Life 1064nm 1000W Laser Cleaner For Rust Surface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 1000W | Laser Wavelength | 1064nm |
|---|---|---|---|
| Cooling Method | Water Cooling | Cooling Water | Deionized Water |
| Maximum Power | 7500W | Auxiliary Gas | Compressed Air/Nitrogen |
| Air Pressure | 0.5-0.8 MPa | Working Condition | 5-40 ℃ |
| High Light | 1000w laser cleaner,1064nm 1000w laser cleaner,1064nm laser rust removal tool |
||
Product Description
1000W Laser Cleaning machine no damage to base material easy operate
There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.
Laser rust removal machine 1000Watt high efficiency cleaning rust metal surface
Laser cleaning is a new "green" technology based on the interaction effect between laser and matter.Laser cleaning machine can remove resin,oil,stain,contaminant,rust,coating,plating,paint etc,.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents,no pollution,no noise,harmless to the human body and the environment.
Technical Parameter
| Description of high efficiency laser cleaning machine | ||
| Model | ML-MF-1000l-LC | |
| Laser power | 1000W | |
|
Laser source type |
IPG fiber laser source | |
| Laser wavelength | 1064 nm | |
| Cooling method | Water cooling | |
| Cooling water | Deionized water | |
| Water temperature | 18-22 ℃ | |
|
Cabinet size |
1420mm*850mm*1370mm (L*W*H) | |
| Total weight(with water tank) | 280kg | |
| Maximum power | 7500W | |
| Focal depth | 15mm | |
| Scan width | 10-60 mm | |
| Auxiliary gas | Compressed air/Nitrogen | |
| Air pressure | 0.5-0.8 MPa | |
| Optional accessory | Handheld / Manipulator | |
| Working condition | 5-40 ℃ | |
Features
- Revolutionary eco-friendly cleaning technology
- Non-contact cleaning, no damage to work piece
- Precision positioning, selective cleaning
- Safe & environment-friendly. Without using chemical detergent or other consumables
- Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
- High efficiency, time-saving
Comparison with traditional cleaning methods:
| Comparisons | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Methods | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
