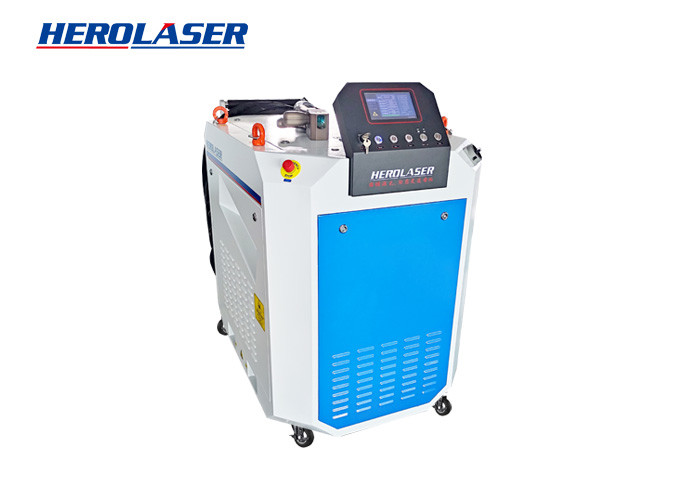

FDA Certified IPG Fiber Laser Paint Cleaner , Laser Rust Cleaning Machine

  • FDA Certified IPG Fiber Laser Paint Cleaner , Laser Rust Cleaning Machine
  • FDA Certified IPG Fiber Laser Paint Cleaner , Laser Rust Cleaning Machine
  • FDA Certified IPG Fiber Laser Paint Cleaner , Laser Rust Cleaning Machine
Place of Origin CHINA
Brand Name HEROLASER
Certification CE/ISO9001/FDA
Model Number ML-QF-WS-JX-HW400
Minimum Order Quantity 1 Set
Price $
Packaging Details Plywood Box
Delivery Time 7-10 Work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability 100 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML-QF-WS-JX-HW400 Laser Power000W 1000
Laser Source Type IPG Fiber Laser Source Laser Wavelength 1064 Nm
Cooling Method Water Cooling Cooling Water Deionized Water
Scan Width 10-80mm Auxiliary Gas Compressed Air/Nitrogen
Air Pressure 0.5-0.8 MPa Working Condition 5-40 ℃
High Light

FDA Laser Paint Cleaner

,

IPG Fiber Laser Paint Cleaner

,

IPG Fiber laser rust cleaning machine
Leave a Message
Product Description

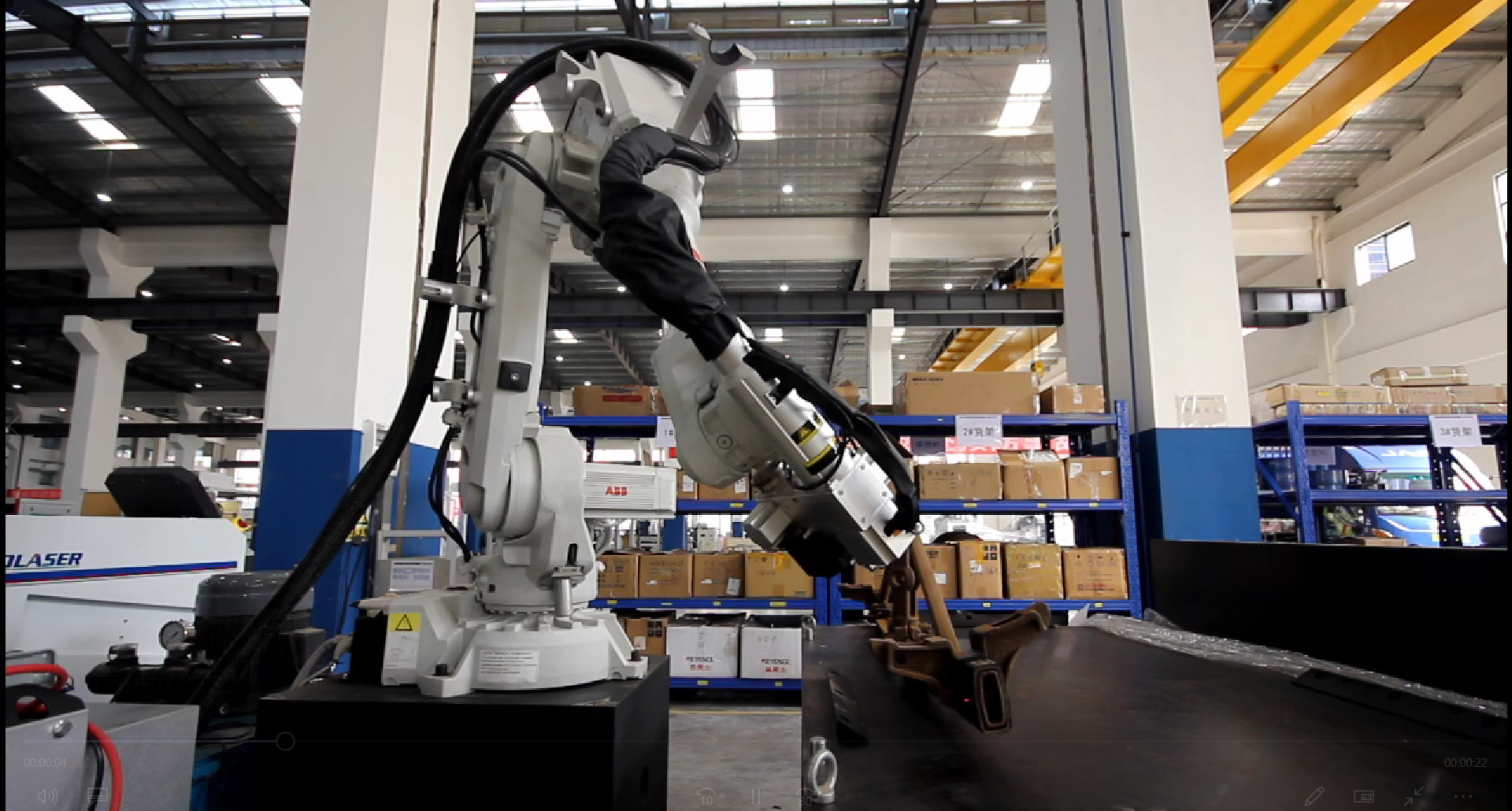

Robotic Coating Removal Laser Clean Machine 500W/1000W/2000W​



There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

FDA Certified IPG Fiber Laser Paint Cleaner , Laser Rust Cleaning Machine 1

Technical Parameter

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



Description of high efficiency laser cleaning machine
Model ML-MF-200l-LC ML-MF-500l-LC
Laser power 200W 500W

Laser source type

 IPG fiber laser source
Laser wavelength 1064 nm
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22 ℃

Cabinet size

 1420 mm*850mm*1370mm (L*W*H)
Total weight(with water tank) 225 kg 275 kg
Maximum power 2200 W 5100 W
Focal depth 10 mm 15 mm
Scan width 10-60 mm
Auxiliary gas Compressed air/Nitrogen
Air pressure 0.5-0.8 MPa
Optional accessory Handheld / Manipulator
Working condition 5-40 ℃

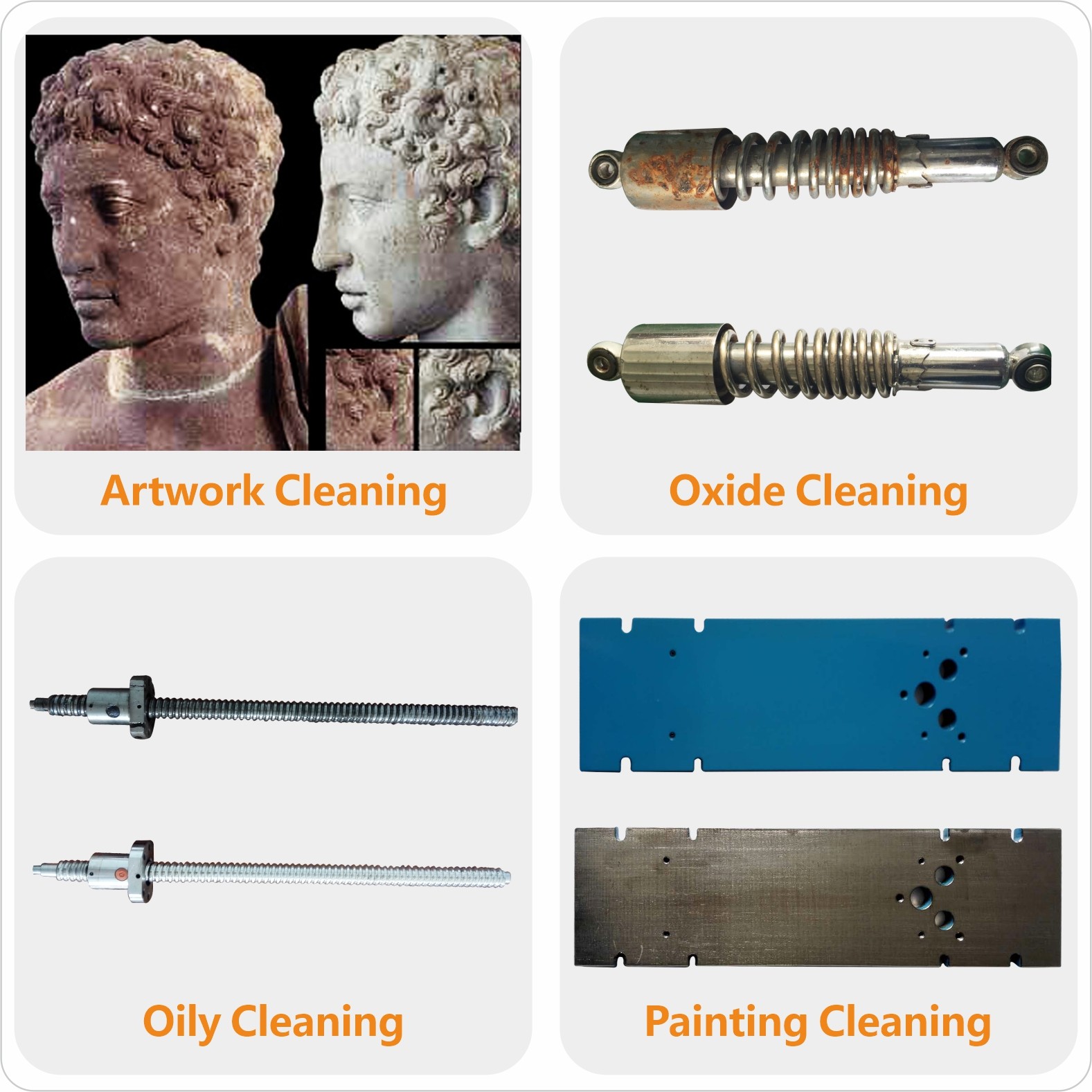

Application

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



Application
Rust Removal Oxide Removal Molding Cleaning Surface Preparation
Coatings Removal Weld Pre-treatment Gluing Pre-treatment Removal of Oil and Grease
Paint Removal Surface Cleaning Stain Removal Surface Roughening
Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning







Comparison with traditional cleaning methods:



Comparisons Laser Cleaning Chemical Cleaning Mechanical Grinding Dry ice cleaning
Methods non-contact cleaning contact cleaning Abrasive contact cleaning non-contact cleaning
Harm to base material None Yes Yes None
Efficiency High Low Low Mid.
Consumable Power Chemical Detergent Abrasive paper, grinder, abrasive stone Dry Ice
Washing result Very good, very clear Medium, uneven Medium, uneven Good, uneven
Precision Washing Accuracy controllable. High precision Uncontrollable, low precision. Uncontrollable, medium precision. Uncontrollable, poor precision.
Safety/Environment No pollution Chemical pollution Dust pollution No pollution
Operation Easy to operate, portable or automation optional. Complicated process, higher technical requirement of the operator. Pollution prevention measures required. Need more time & manpower. Pollution prevention measures required. Easy to operate, portable or automatic.
Investment High investment on machine. But no consumable, low maintenance cost Low investment on machine. But expensive consumables Medium investment on machine. High man-power cost. Medium investment on machine. High consumable cost.






Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

Features

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

  • Revolutionary eco-friendly cleaning technology
  • Non-contact cleaning, no damage to work piece
  • Precision positioning, selective cleaning
  • Safe & environment-friendly. Without using chemical detergent or other consumables
  • Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
  • High efficiency, time-saving
  • Stable laser cleaning system, practically maintenance free
Company Information

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000WLaser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000WLaser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



FAQ

  1. How is the payment?

30% deposit before production and the balance 70% before shipment

  1. How is the delivery and shipment?
  1. Ship in 7 days after 100% payment;
  2. Plywood box packaging
  1. How will you guarantee aftersales services?
  1. We offer two years warranty for laser source, one year for whole machine and lifetime maintenance services.
  2. Engineers available to service machinery overseas
  3. Free technical training in our factory
  4. Free sample can be sent to you
  5. Professional technical team 24 hours online
