Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube

  • Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube
Place of Origin China
Brand Name Purple Horn
Certification ISO9001
Model Number 6020D
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month
Product Details
Condition New Laser IPG/RECI/MAX
Height Tracking Sensor BCS100 Operation Software TubePro
Control System FSCUT3000S Cooling System Water Cooling
Highlight

IPG Laser Tube Cutting Machine

,

ISO9001 Laser Tube Cutting Machine

,

IPG laser pipe cutting machine
Leave a Message
Product Description

6020D Laser Cutting System for Square Tube/Round Tube/Rectangular Tube/Waist Tube/Elliptical Tube/Angle steel/C-shaped



  • Cutting Range of Purple Horn ML-P6020D Laser Cutting System

Cutting materials: stainless steel, carbon steel, galvanized steel, copper pipe, aluminum pipe, etc.

Cutting pipe type: Square tube, round tube, rectangular tube, waist tube, elliptical tube, angle steel, c-shaped steel

Cutting pipe diameter:

Round tube: 20 ≤ φ ≤ 220 mm
Square tube: 20 * 20 ≤ □≤ 150 mm

  • Parameters of Purple Horn ML-P6020D Laser Cutting System
Machine model: ML-P6020D
Laser: IPG, RECI, MAX
Power: 1500W ~ 20000W
Linear axis speed: 100 m/min
Rotary axis speed: 100 rpm
Pipe circumcircle diameter: Φ20mm~Φ220mm
Material and thickness (1.5KW): stainless steel 4 mm, carbon steel 8 mm (cutting capacity depends on laser power)
Feeding length: ≤ 6300 mm (automatic feeding)
Blanking length: ≤ 2000 mm (with support, the length can be extended)
Residual length: ≥ 110  mm
Max. single tube weight: 40 kg/m
Machine weight: around 6.8 t
Machine size: 11000 x 2300 x 2400 mm

  • Advantages of Purple Horn ML-P6020D Laser Cutting System



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 0

Bed structure: horizontal gantry structure, processing technology: whole welding annealing, vibration aging, finishing.



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 1

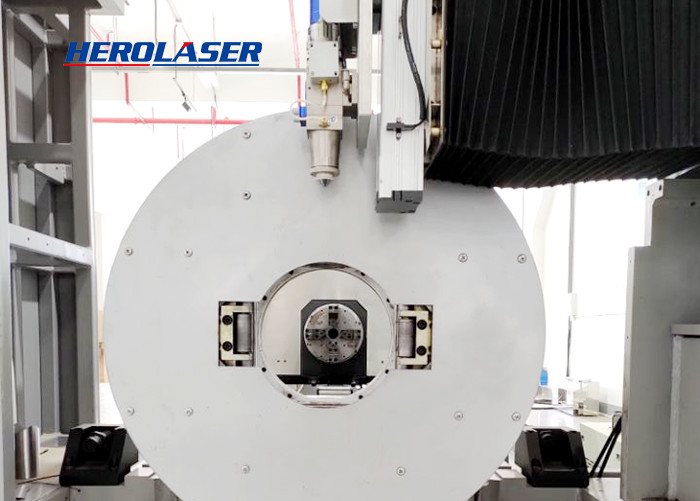

Front and rear chucks: the front chucks are full stroke chucks with small moment of inertia and fast acceleration; The front chuck adopts the side suction mode, and the rear chuck adopts the tail suction mode, so that the dust and smoke in the cutting area are less, and the inner wall of the cutting workpiece is cleaner.



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 2

Feeding support: the support opening degree of fixed roller can be adjusted manually, which is suitable for cutting support requirements of different pipe types and diameters.



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 3

Blanking structure: blanking is a combination of fixed roller and slope sliding.


  • Various Cutting Samples of Purple Horn ML-P6020D Laser Cutting System



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 4
