1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine

  • 1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine
  • 1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine
Place of Origin CHINA
Brand Name Purple Horn
Certification CE/ISO9001/FDA
Model Number ML-QF-WS-JX-HW400
Minimum Order Quantity 1 Set
Price $
Packaging Details Plywood Box
Delivery Time 7-10 Work days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability 100 Sets Per Month
Product Details
Model ML-QF-WS-JX-HW400 Laser Power000W 500
Laser Source Type IPG Fiber Laser Source Laser Wavelength 1064nm
Cooling Method Water Cooling Cooling Water Deionized Water
Water Temperature 18-22 ℃ Scan Width 10-80mm
Auxiliary Gas Compressed Air/Nitrogen Air Pressure 0.5-0.8 MPa
Working Condition 5-40 ℃
Highlight

1064nm portable laser rust removal machine

,

IPG Fiber portable laser rust removal machine

,

IPG Fiber rust cleaning laser
Leave a Message
Product Description

Robotic Laser Rust Removal Laser Clean Machine 500W/1000W/2000W



Product Introduction:



Laser cleaning machine is the latest high-tech product. Easy to install, operate, easy to achieving automation. Plug in power, turn on and start cleaning - without chemicals, media, dust, water.

Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.



1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 0

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 1

Technical Parameter

1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 2



Description of high efficiency laser cleaning machine
Model ML-MF-200l-LC ML-MF-500l-LC
Laser power 200W 500W

Laser source type

 IPG fiber laser source
Laser wavelength 1064 nm
Cooling method Water cooling
Cooling water Deionized water
Water temperature 18-22 ℃

Cabinet size

 1420 mm*850mm*1370mm (L*W*H)
Total weight(with water tank) 225 kg 275 kg
Maximum power 2200 W 5100 W
Focal depth 10 mm 15 mm
Scan width 10-60 mm
Auxiliary gas Compressed air/Nitrogen
Air pressure 0.5-0.8 MPa
Optional accessory Handheld / Manipulator
Working condition 5-40 ℃
Application

1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 3



Application
Rust Removal Oxide Removal Molding Cleaning Surface Preparation
Coatings Removal Weld Pre-treatment Gluing Pre-treatment Removal of Oil and Grease
Paint Removal Surface Cleaning Stain Removal Surface Roughening
Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning



1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 4



1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 5

Features

1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 6

  • Revolutionary eco-friendly cleaning technology
  • Non-contact cleaning, no damage to work piece
  • Precision positioning, selective cleaning
  • Safe & environment-friendly. Without using chemical detergent or other consumables

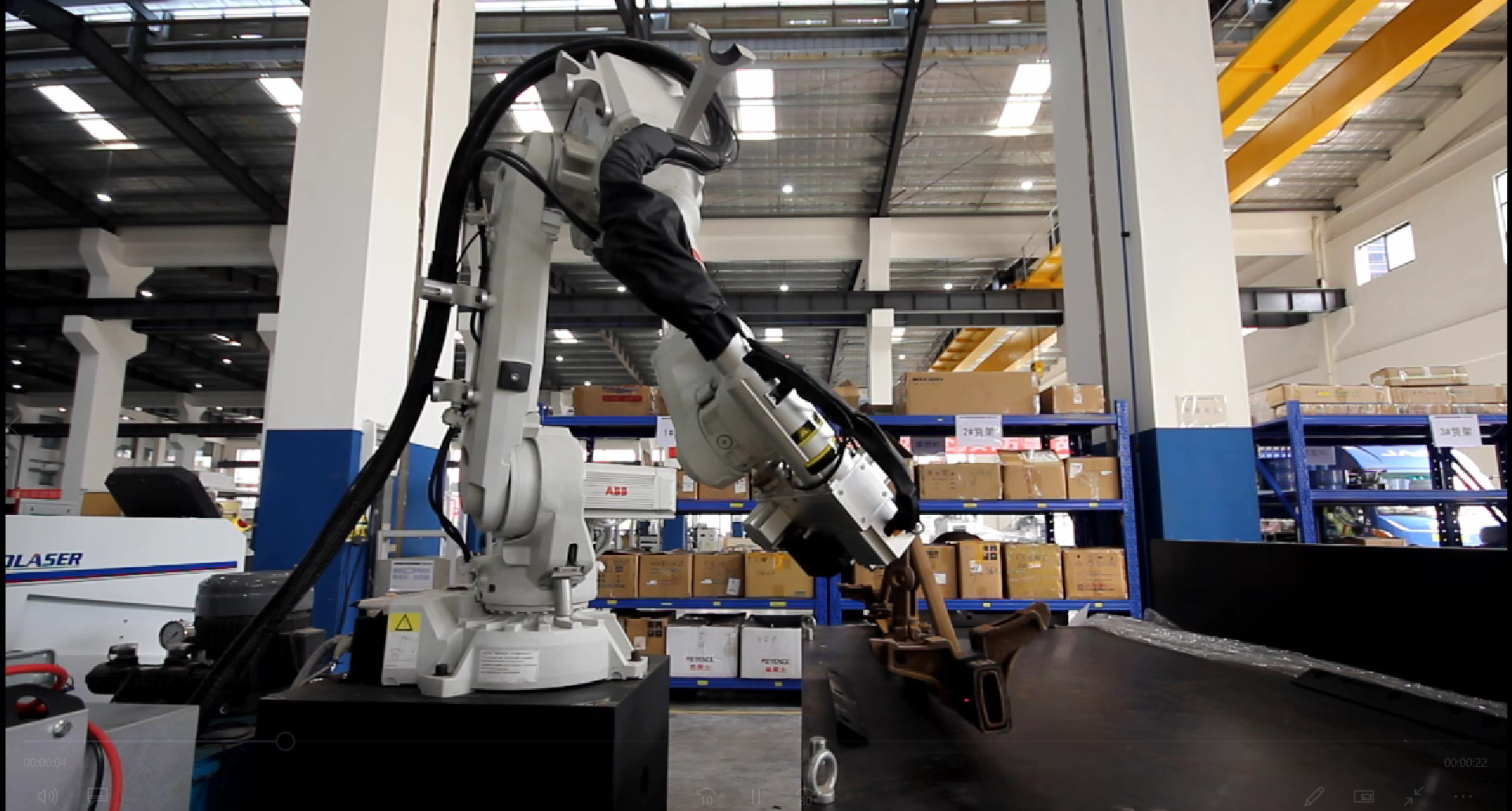

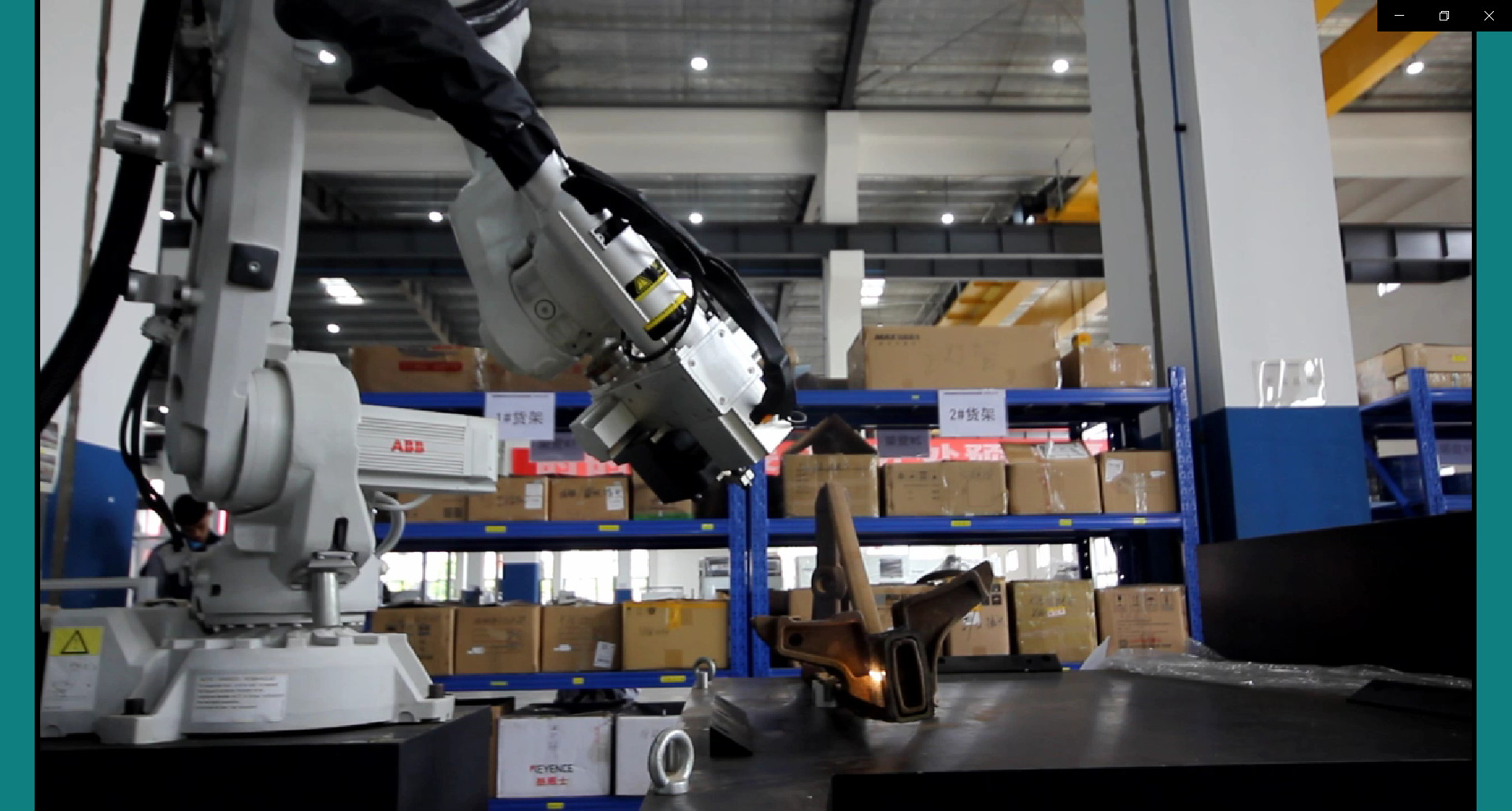

  • Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
  • High efficiency, time-saving
  • Stable laser cleaning system, practically maintenance free
Company Information

1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 7

1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 81064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 91064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 10

1064nm IPG Fiber Automatic Portable Laser Rust Removal Machine 11



Comparison with traditional cleaning methods:



Comparisons Laser Cleaning Chemical Cleaning Mechanical Grinding Dry ice cleaning
Methods non-contact cleaning contact cleaning Abrasive contact cleaning non-contact cleaning
Harm to base material None Yes Yes None
Efficiency High Low Low Mid.
Consumable Power Chemical Detergent Abrasive paper, grinder, abrasive stone Dry Ice
Washing result Very good, very clear Medium, uneven Medium, uneven Good, uneven
Precision Washing Accuracy controllable. High precision Uncontrollable, low precision. Uncontrollable, medium precision. Uncontrollable, poor precision.
Safety/Environment No pollution Chemical pollution Dust pollution No pollution
Operation Easy to operate, portable or automation optional. Complicated process, higher technical requirement of the operator. Pollution prevention measures required. Need more time & manpower. Pollution prevention measures required. Easy to operate, portable or automatic.
Investment High investment on machine. But no consumable, low maintenance cost Low investment on machine. But expensive consumables Medium investment on machine. High man-power cost. Medium investment on machine. High consumable cost.
