200W Four Dimensional Automatic Laser Welding Machine For Stainless Steel

Place of Origin China
Brand Name Herolaser
Certification CE FDA Certification
Model Number ML-W200
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Plywood Box
Delivery Time 7~10 Work Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 600 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Herolaser Warranty 1Year , 2 Year
Laser Source Brand IPG/MAX/RECI Transportation Ocean Freight , Air Transportation , Railway Transportation
Deliver Method FOB , CFR Application Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing
After-Sales Service Professional Technical Taem 24 Hours Online Keywords Damage Free Marking
High Light

Four Dimensional Automatic Laser Welding Machine

,

200W Automatic Laser Welding Machine

,

200W laser welding machine for stainless steel

Leave a Message
Product Description

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

     Automatic laser welding machine is used to radiate the surface of the workpiece after the pulse laser with wavelength of 1064nm is radiated after beam expanding, reflection and focusing. The surface heat is diffused through heat transfer and guided by the internal diffusion. The width, energy, peak power and repetition frequency of laser pulse are controlled by digital * * to melt the workpiece and form a specific melting pool, Thus, laser welding of processed parts can be realized and precision welding which cannot be realized by traditional technology can be realized

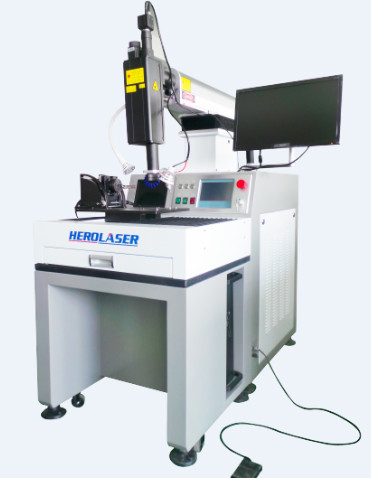

                                                                              200W Four Dimensional Automatic Laser Welding Machine For Stainless Steel 1



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

  • The X, y, Z and D axes of the welded sample are step driven to meet the needs of large stroke
  • It has the advantages of high repetition precision, fast welding speed and high efficiency
  • It can weld point, straight line, circle, ellipse and square plane arbitrary track
  • High power laser power supply, meet 24 hours mass production
  • With auto focus and rotation function, it can weld products of any shape in 3D space
  • Specially designed for laser welding four axis linkage control system, stable performance, easy to us

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



SN Item Parameter
1 Model ML-W200
2 Laser Working Substance ND: YAG
3 Rated Output 200W
4 Maximum Output 240W
5 The Laser Wave Length 1064NM
6 Photoelectric Range 0.2MM—3.0MM(Adjust)
7 The Pulse Width 0.1MS-20MS
8 The Depth Of The Weld ≤2MM
9 Pulse Frequency ≤100HZ
10 The Machine Power 6KM
11 Control System PC
12 Aimed At Positioning Microscope ,CCD , Red Light
13 Table Travel 200*200MM—1200*1200MM(Optional)
14 Demand For Electricity 380V/Three-phase power/50HZ/100A
15 Host System Size 1600*1200*1300MM
16 Cooling System Dimensions 1200*300*900MM



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



acuum Cup stainless Steel Bowl Sensor Tungsten Filament
High Power Diode Triode Aluminum Alloy Laptop Case Cell Phone Battery
Door Handle Mould Electrical Accessories Filter
Nozzle Stainless Steel Products Golf Ball Head Zinc-Alloy Handicraft




Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



200W Four Dimensional Automatic Laser Welding Machine For Stainless Steel 6



FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
