1064nm 200W Laser Cleaning Machine For Ceramic Knurled Rol
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source Type | IPG Fiber Laser Source | Cooling Method | Water Cooling |
|---|---|---|---|
| Cooling Water | Deionized Water | Auxiliary Gas | Compressed Air/Nitrogen |
| Air Pressure | 0.5-0.8 MPa | ||
| Highlight | 200W Laser Cleaning Machine,1064nm 200W Laser Cleaning Machine,1064nm portable laser rust remover |
||
Product Description

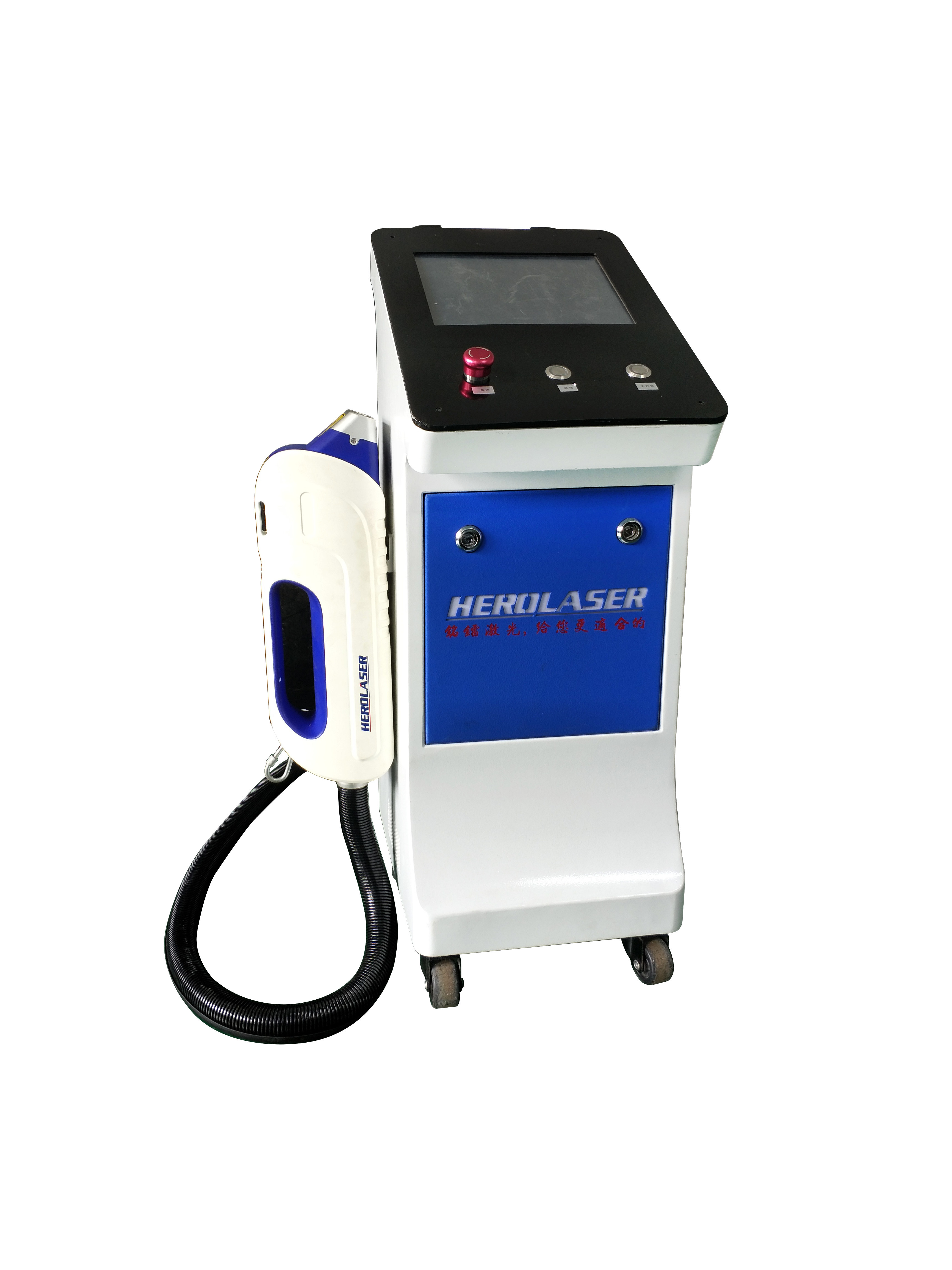

Laser Cleaning Machine 200Watt Fiber for Ceramic Knurled Roll Cleaning
laser cleaning machine can remove resin,oil,stain,contaminant,rust,coating,plating,paint etc,.Laser cleaning is a new technology based on the interaction effect between laser and matter.Unlike traditional mechanical cleaning,chemical cleaning and ultrasonic cleaning it does not require any CFC that destroys the ozone layer Organic solvents.
Technical Parameter
| Description of high efficiency laser cleaning machine | |
| Model | ML-MF-200l-LC |
| Laser power | 200W |
| Laser wavelength | 1064 nm |
| Water temperature | 18-22 ℃ |
|
Cabinet size |
1089mm*450mm*550mm (L*W*H) |
| Total weight(with water tank) | 80kg |
| Maximum power | 2000 W |
| Focal depth | 10mm |
| Scan width | 10-60 mm |

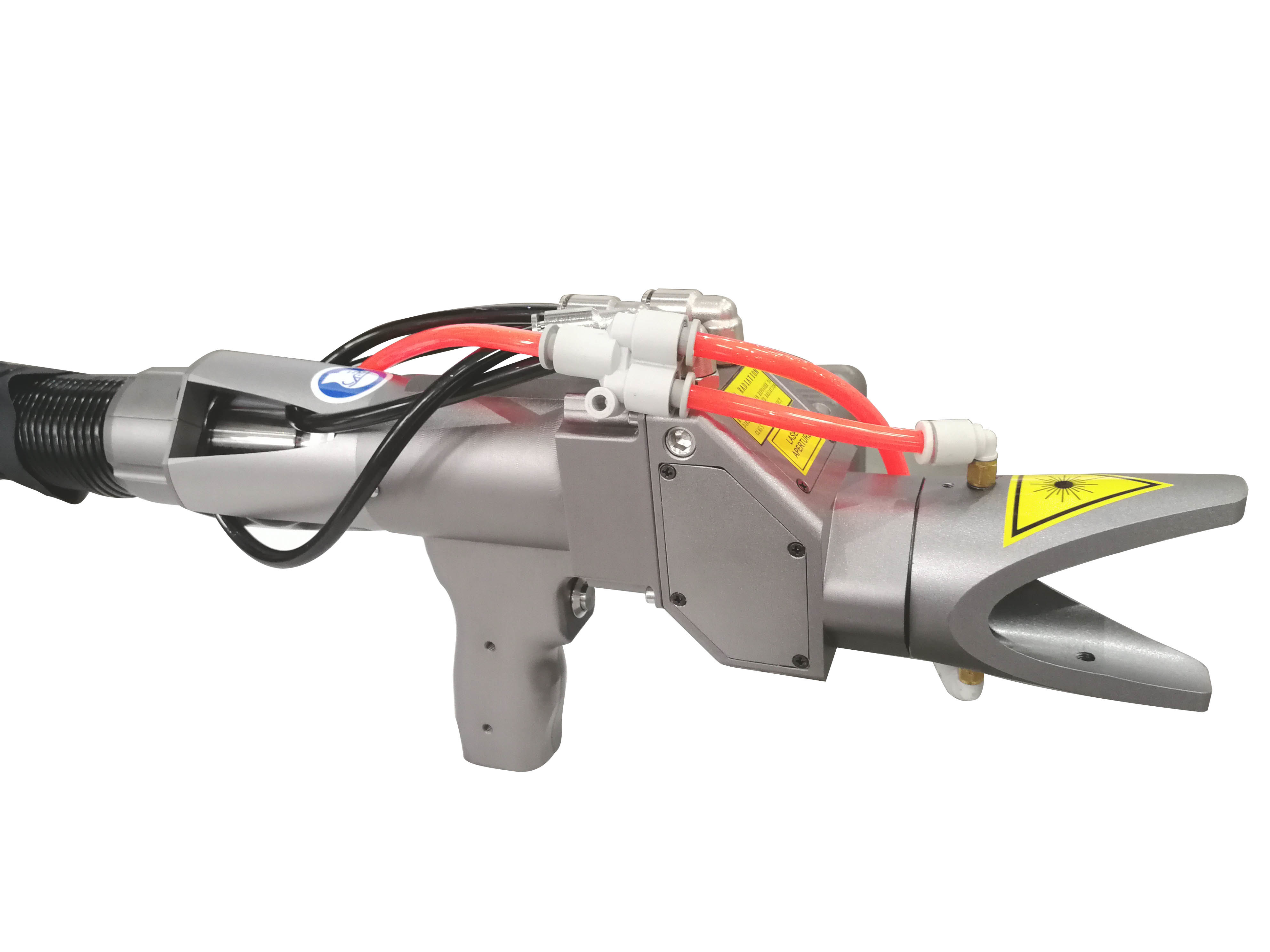

| Optional accessory | Handheld / Manipulator |
| Working condition | 5-40 ℃ |
Features
- Non-contact cleaning, no damage to work piece
- Precision positioning, selective cleaning
- Safe & environment-friendly. Without using chemical detergent or other consumables
- Easy to operate, with portable mode and could be equipped with robot for automatic cleaning
- High efficiency, time-saving
- Stable laser cleaning system, practically maintenance free
Application
| Application | |||
| Rust Removal | Oxide Removal | Molding Cleaning | Surface Preparation |
| Coatings Removal | Weld Pre-treatment | Gluing Pre-treatment | Removal of Oil and Grease |
| Tool Cleaning | Historic Restoration | Selective Paint Removal | Precise Cleaning |
