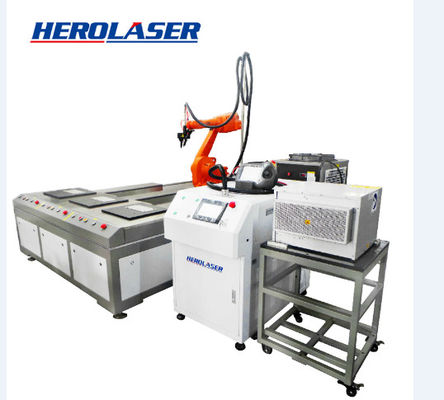

Herolaser 1070nm Robotic Spot Welding Machine For Precision Machining

Place of Origin China
Brand Name Herolaser
Certification CE FDA Certification
Model Number ML-W(300~3000)
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Plywood Box
Delivery Time 7~10 Work Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 600 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Herolaser Warranty 1Year , 2 Year
Laser Source Brand IPG/MAX/RECI Transportation Ocean Freight , Air Transportation , Railway Transportation
Deliver Method FOB , CFR Application Electrical Accessories Processing , Handicraft Processing , Hardware Processing , Mold Processing
After-Sales Service Professional Technical Taem 24 Hours Online Keywords Damage Free Marking
High Light

Herolaser robotic spot welding machine

,

1070nm robotic spot welding machine

,

1070nm cnc welding robot

Leave a Message
Product Description

  Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W

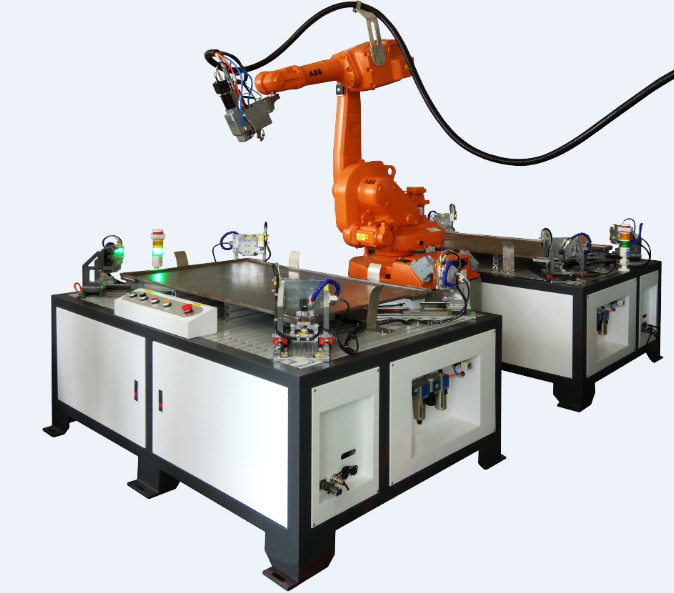

    Double-Sided Robot High-Precision Welding Machine For Precision Machiningall Kinds Of Hardware Processing , Sheet Metal  Multi face robotic arm welding machine laser cladding system with feed optical transmission semi-conductor laser and its laser cladding head and laser welding joint, the main equipment of the system includes host, Kuka Kr30ha robot and its slide, Laserline LDF4000-30 laser, laser welding joint and laser cladding quenching head, coaxial powder feeding nozzle, control system and so on.



                                                                   Herolaser 1070nm Robotic Spot Welding Machine For Precision Machining 1



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



  • It is suitable for large space welding, intelligent robot operation, flexible and reliable, six axis linkage, arbitrary space welding, not limited to plane welding.
  • It is suitable for large space welding, intelligent robot operation, flexible and reliable, six axis linkage, arbitrary space welding, not limited to plane welding.
  • It can realize double station or multi station welding operation, save product installation fixture time and greatly improve production efficiency

Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



N Item Parameter
1 Equipment name Double position robot laser welding machine
2 laser power 300~3000W
3 Laser wavelength 1070NM
4 Laser wavelength 10M
5 operation mode Continuous / modulation
6 Welding speed range 0~120mm/s
7 Cooling water machine Industrial constant temperature water tank
8 Working environment temperature range 15~35°C
9 Working environment temperature range <70% No condensation
10 area covered 1600*3000mm(Manipulator and worktable)
11 Arm length 1400mm
12 working voltage three-phase380V
13 Spatial positioning accuracy ±0.05mm



Laser Cleaning Machine for Rust,Oil,Resin,Dust,Stain,Coating,Plating,Oxidized Surface Cleaning & Removal 100W/500W/1000W/2000W



Herolaser 1070nm Robotic Spot Welding Machine For Precision Machining 5



FAQ
1. How is the payment?
30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
Ship in 7 days after 100% payment
Plywood box packaging
3. How will you guarantee aftersales services?
We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online
4. How about your presales service?
Speeding offer within 8 hours quick response and free consulting
Free sample marking or testing is available
Progressing solution design to all clients, including distributors and end users
