Robotic 1070nm IPG Laser Welding Machine With Automatic Wire Feeding

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WF-4D-3000W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package
Delivery Time 15-20 days
Payment Terms T/T, Western Union
Supply Ability 50 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Source Brand IPG/MAX/RECI Laser Head Brand Herolaser
Wavelength 1070nm Power Supply 380VAC ± 10% / 50HZ
Dimensional 1200 X 1300 X 1400mm Laser Type Continuous Laser
After-sales Services Online Support, Video Technical Support Warranty 24 Months
High Light

1070nm Laser Welding Machine


IPG Laser Welding Machine


1070nm Laser Welder

Leave a Message
Product Description

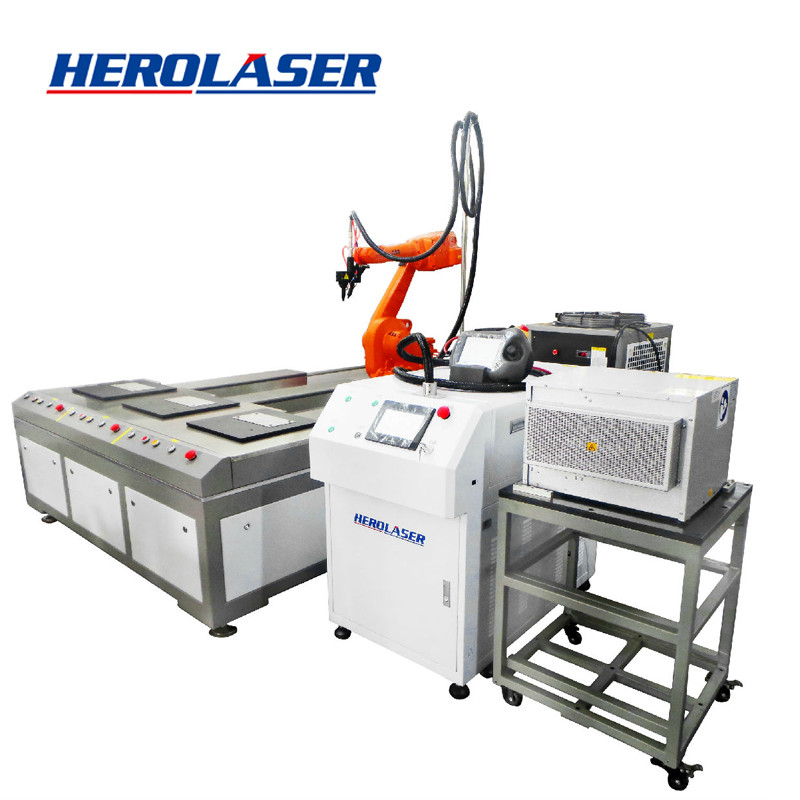

Wobble Welding Robot Laser Welding Machine with Automatic Wire Feeding

Product introduction:

The product is mainly composed of fiber laser, cooling system, robot system, power control system, double station feeding system and so on. With safety protection performance; The whole system has a very perfect anti-static treatment system. The equipment is easy to use, operate and maintain, beautiful in appearance and does not pollute the environment.
It is characterized by narrow weld, large length-diameter ratio, small deformation, good weld surface forming and good material adaptability.
The equipment is easy to operate, electrical safety, personal safety and health in accordance with the European and Chinese standards and requirements.


Wobble double wedge swing welding joint technical characteristics:

Herolaser’s patented technology is the first in China. In laser welding head WOBBLE configuration module, its unique way of wedge vibration makes weld widened, wide range of laser welding application, for more master pieces, weld wider artifacts can realize high precision laser welding, and welding quality effect is better than common welding head, weld surface is relatively smooth, beautiful, good welding quality.

  • The allowable range of weld width is expanded
  • Extremely high process repeatability/process stability
  • Better weld formability
  • High quality spot welding
  • Lower requirements for laser power
  • Excellent welding ability of aluminum alloy


Product parameters:
Model ML-WF-4D
Average laser power 1000w 1500w 3000w
Max laser power 1000w 1500w 3000w

Max energy of single pulse




Laser wavelength 1070nm
Laser weld depth 0-3 mm(up to material)
Laser welding frequency 1HZ-5000Hz
Spot size range 0.3-2mm
Power Supply 380VAC ± 10% / 50HZ
Power Consumption 5KW 6KW 8KW
Dimensional 1200 x 1300 x 1400mm
Weight 220 250 270
Cooling Way Water cooling
Laser Type Continuous laser
IPG Laser IPG made in Germany


Main Configuration:


Laser source IPG/MAX/RECI brand
Control System Android system
Computer Standard computer,win 7
Observing System CCD visual
Rotary Optional



Welding software: Android System or DSP1.0


Robotic 1070nm IPG Laser Welding Machine With Automatic Wire Feeding 0


CCD vision


Robotic 1070nm IPG Laser Welding Machine With Automatic Wire Feeding 1

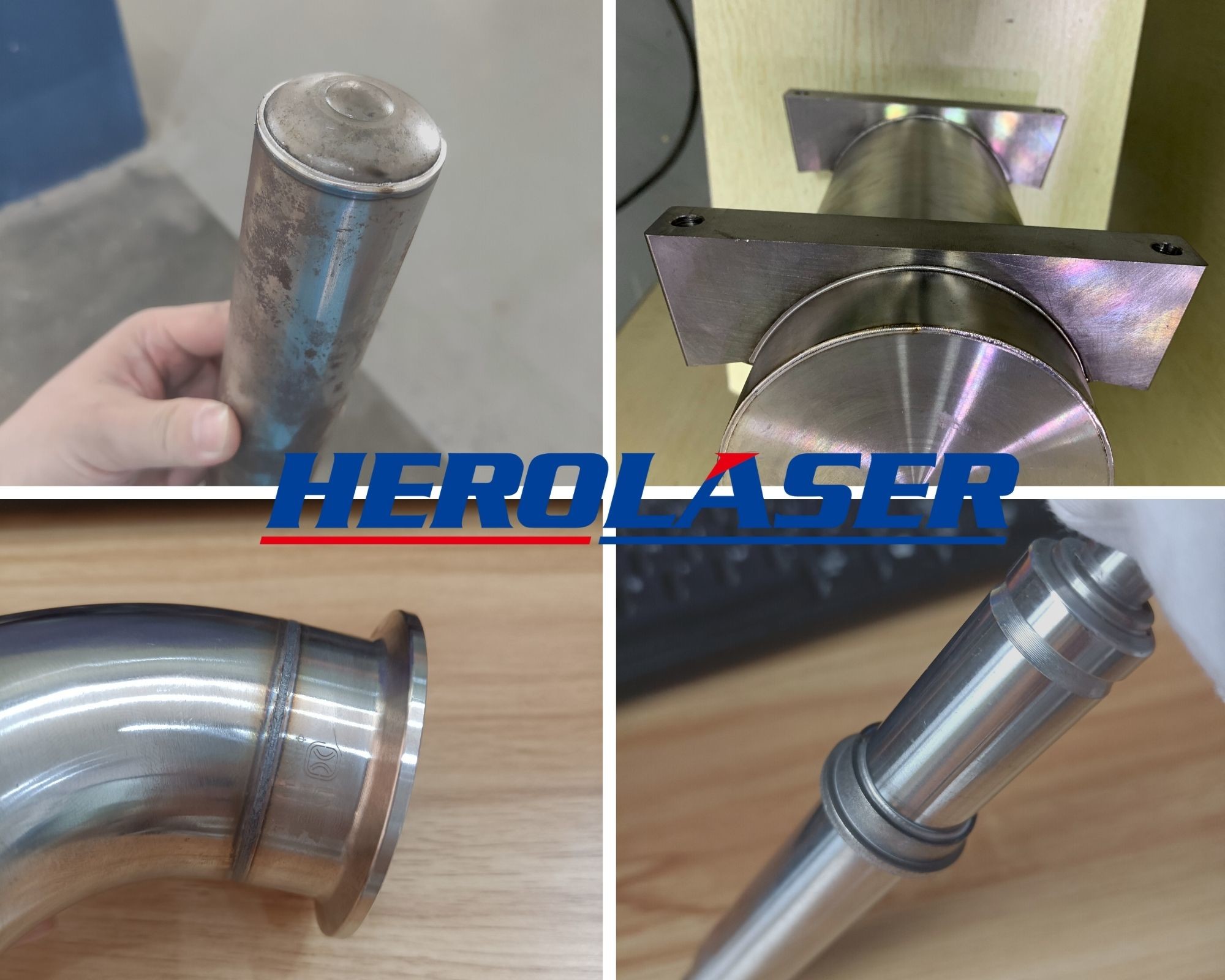

Samples for reference:
Robotic 1070nm IPG Laser Welding Machine With Automatic Wire Feeding 2
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.

Robotic 1070nm IPG Laser Welding Machine With Automatic Wire Feeding 3
