1000W CW Robot Laser Welding Machine For Stainless Steel

1000W Stainless Steel Robotic Fiber Laser Welding Machine

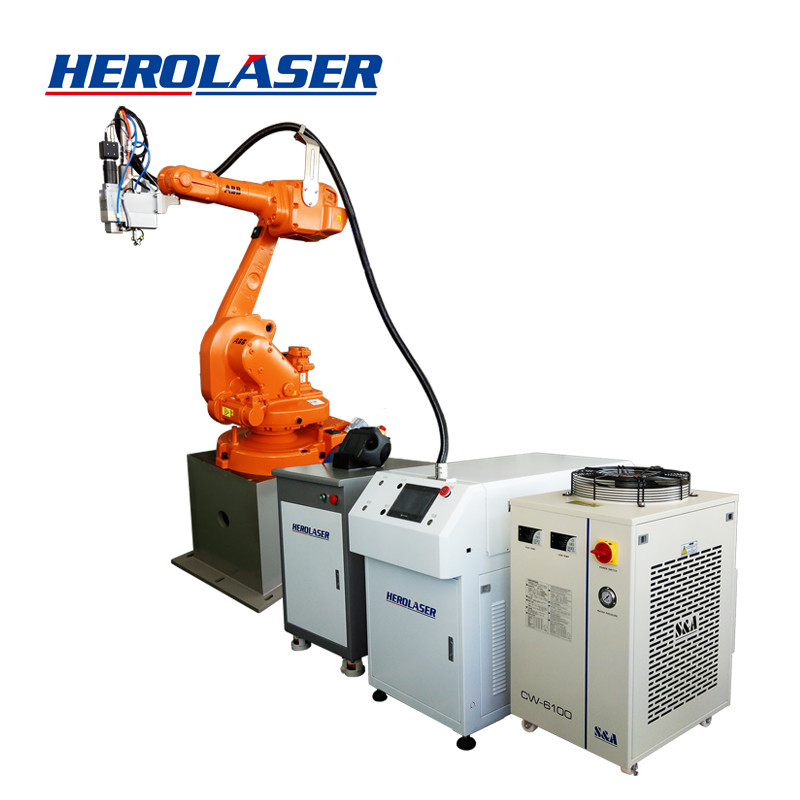

The robot laser welding system consists of fiber laser, laser power supply, control system, laser indication and positioning system, motion system, rotating system, WOBBLE laser welding joint, cooling system and so on. Laser generator adopts imported fiber laser, laser pulse waveform can be edited arbitrarily, high stability of energy output.

Laser welding joint adopts laser welding joint independently developed by Purple Horn, which has very high welding stability and flexibility, and can be welded by 360 degrees rotation and swing.

The cooling system of fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin. The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high. If the temperature exceeds the upper limit, the system will automatically shut down the laser to avoid damage to the laser. After the machine is opened, the water circulation and the radiator form heat exchange with the outside world, which quickly takes away the heat generated when the laser is working to ensure that the laser works normally. The cooling system and the whole machine adopt the integrated design, which makes the system more concise and occupies a small area.

Features:

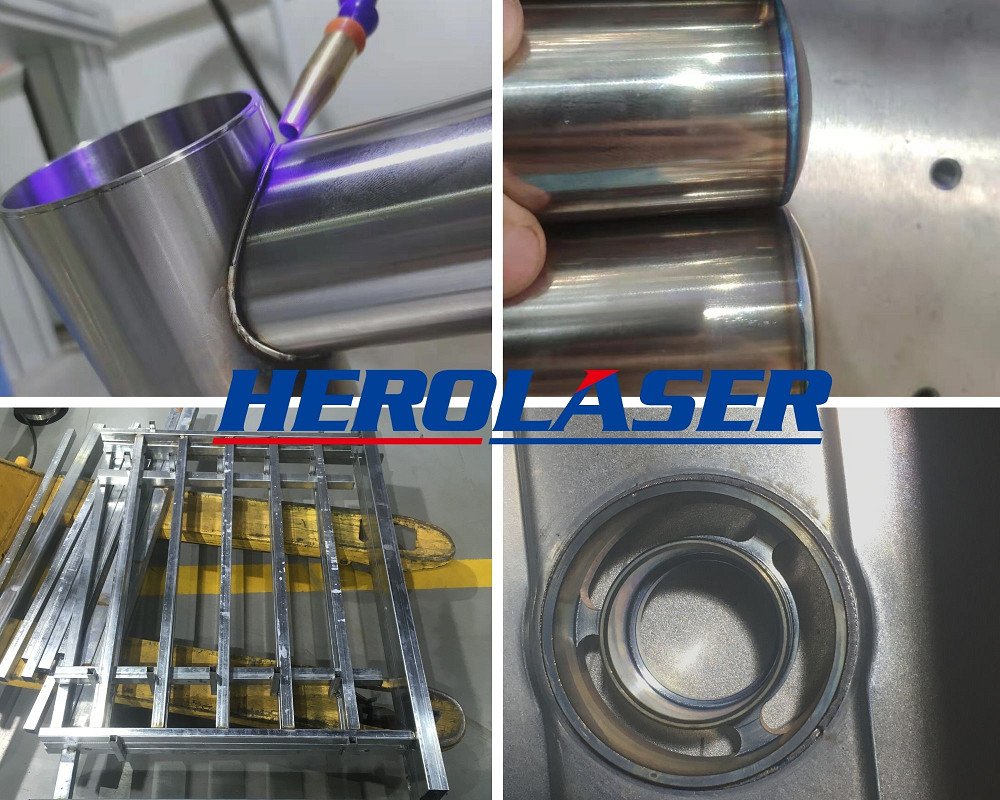

1. The fiber laser spot is very small, the heat affected zone is small, the deformation is small, the welding speed is super-fast.
2. Fiber laser service life of 100,000 hours, complete no consumables, daily maintenance is more convenient.
3. 30% of the energy provided by the power supply is converted into laser energy, making the equipment more energy saving and electricity saving.
4. CCD LCD monitoring and observation system, can clearly observe the product positioning and welding effect according to the red light indication.
5. Fiber laser multi-mode welding, according to the requirements of the product can be freely converted pulse and continuous mode.
6. It can be difficult to approach the precise parts, the implementation of flexible transmission of non-contact welding, has a great flexibility, adapt to a variety of complex products seam welding, welding, butt welding, stack welding, etc.
