CE CNC High Precision Laser Cutting Machine For Metals And Non Metallic

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-CT-A01
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1700 ×1250 ×1750 mm/1500 KG
Delivery Time 20 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling Mode Water Cooling Condition New
Application Laser Cutting Warranty 2 Years,1 Year
Function Cutting Metal Materials,Cutting Engraving Non-metal Materials Driving System Steper Motor
Laser Wevelength 1070± 10nm Electricity Demand 220V /50Hz/32A
High Light

CNC High Precision Laser Cutting Machine

,

CE High Precision Laser Cutting Machine

,

CE portable laser cutting machine

Leave a Message
Product Description

Sapphire High Speed Precision Laser Cutting Machine Processing of Metals and Non-metallic Materials



Introduction of machine:

Sapphire Glass precision laser cutting machine is a newest high precision laser machine which especially for Sapphire glass application industry.
This device has been tested well in the field of cutting, punching for less than 2mm thickness sapphire glass panel and fully affirmed and recognized by users. It is not only a new machine but absolutely new technology for Sapphire Glass field.

Advantages of New machine:

  1. High cutting efficiency which is more than 10 times of traditional cutting ;
  2. Non-contact processing with excellent cutting edge effect which assure highly qualified product rate;
  3. Optical marble platform applied assure excellent accuracy after high density drilling ;
  4. Compacted machine with fully enclosed thermostatic design to make sure highly Stability;
  5. Easy to operate and can be externally triggered;
  6. RS232 and network control interface ;
  7. 0.03mm diameter min. hole , ± 5um accuracy with thickness less than 1mm ;
  8. 0.003mm accuracy with thickness less than 2 mm.

Advantages of New Technology:

1. No micro-cracks, broken or debris after processing ;
2. Super highly crack resistance of edge and maintaining optical performance after processing;
3. No consumable parts, no washing, grinding and polishing after cutting ,highly reduced production costs;
4. Suitable for thinner and lighter materials ,also good for irregular holes processing ;
5. Higher speed and accuracy than traditional processing, best choice for mass production.

Technical specifications:

Model ML-CS-A01
Laser Imported single mode laser
Rated output power of the laser Continuously adjustable 100-1000W
Laser wavelength 1070± 10nm
Dimension of machine L x W x H: 1700 ×1250 ×1750 mm
Size of marble plane 1700×1250×100 mm
Motion system An chuan Servo motor,HIWIN Screw guide



Table Precision

Positioning accuracy:0.03mm; Repeated Positioning accuracy:±0.01mm time)
Control system MotionDSP CNC software
Industrial Computer Standard PC
Display 17’DELL
PLC Mitsubishi
Electricity demand 220V /50Hz/32A
Power consumption 5KW
Cross weight 1500KG
Laser source IPG imported from Germany

Applied area and materials:

1. Mobile phone panels, watches, semiconductor substrate and military industries ;
2. Processing of metals and non-metallic materials, such as ceramics, glasses, clocks, PC, electronic devices, all kinds of instruments, nameplate display, plastic and other thin-film solar etching, wafer dicing.

Samples for reference:

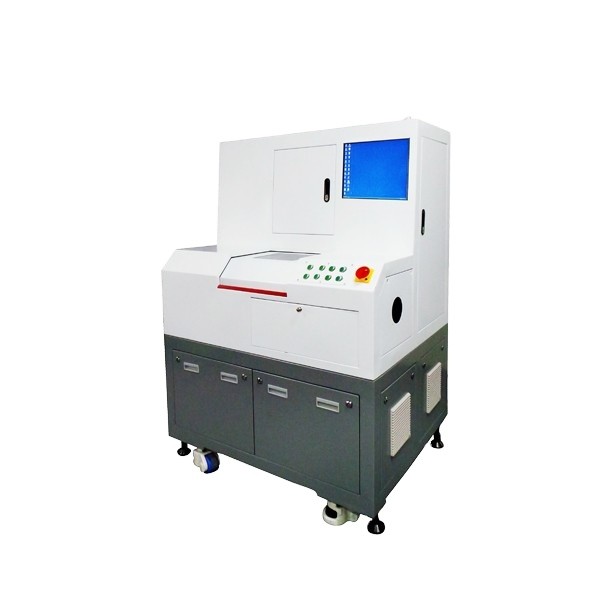

CE CNC High Precision Laser Cutting Machine For Metals And Non Metallic 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample cutting or testing is available
  • Progressing solution design to all clients, including distributors and end users.

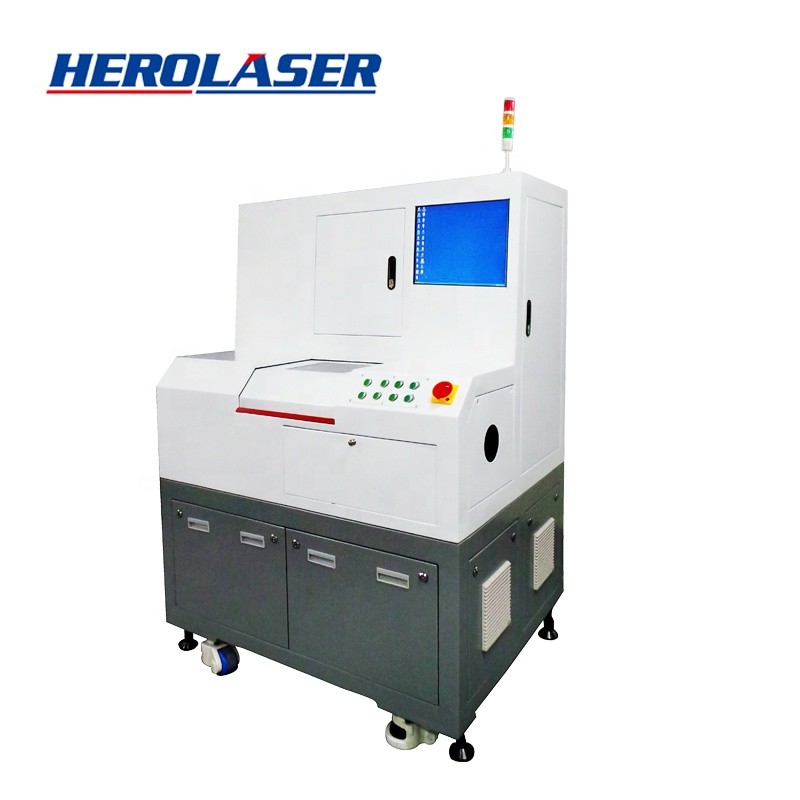

CE CNC High Precision Laser Cutting Machine For Metals And Non Metallic 1
