Water Cooling 10m/Min 500W Precision Metal Cutting Machine For Gold

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-CT-A01-500W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1500*1600*2000mm/1500 KG
Delivery Time 7-15 days
Payment Terms T/T, Western Union
Supply Ability 300 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Output Power 500W Effective Cutting Range 600*350mm
Cutting Thickness ≤3mm Cutting Speed ≤10 M/min
Cooling Mode Water Cooling Repeated Positioning Accuracy ≤±0.01mm
Weight 1200KG Power Consumption ≤3.5KW
High Light

500W precision metal cutting machine

,

10m/min precision metal cutting machine

,

500W small fiber laser cutting machine

Leave a Message
Product Description

Precious Metal Cutting High Precision Laser Cutting Machine for Gold/Silver/Metal



Model introduction:

The precious metal precision cutting machine adopts our original double-layer precious metal recovery system, imported fiber laser, high-profile cutting head, high-precision rotating servo motor, with professional laser cutting control software, supporting auto-following focusing system, which can automatically follow the workpiece when cutting. Adjust the focus position by ups and downs to ensure precision cutting to ensure quality, equipped with optional automatic feeding cutting system and bracelet, ring rotating cutting system.


Model features:

  • Original recovery system: fully enclosed double-layer protection, cutting inside the cavity, the recovery rate is greater than 99.95%
  • High cutting precision, fast speed, narrow cutting seam, extremely small heat-affected zone, smooth cutting surface without burrs
  • Fiber life can reach 100,000 hours

Technical details:

S.N Item Specifications
1 Model type Precious metal precision cutting machine
2 Laser wavelength 1070nm
3 Maximum output power 500W
4 Effective cutting range 600*350mm
5 Cutting thickness ≤2mm
6 Cutting length range Within 3000mm
7 Cutting speed ≤10000mm/min
8 Positioning accuracy of worktable ≤0.05mm
9 Repeated positioning accuracy of worktable ≤±0.01mm
10 Electricity demand AC 220V ±5% /50Hz
11 Whole machine power consumption ≤3.5KW
12 Equipment size 1500*1600*2000mm

Applied range:

Suitable for 18K/24K gold, 925 silver, jewelry metal, precision accessories.

Samples for reference:

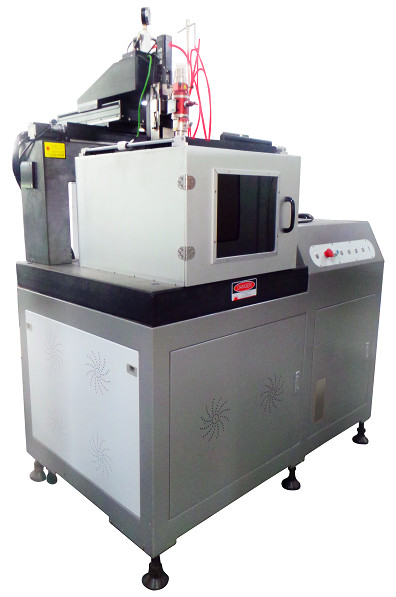

Water Cooling 10m/Min 500W Precision Metal Cutting Machine For Gold 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample cutting or testing is available
  • Progressing solution design to all clients, including distributors and end users.

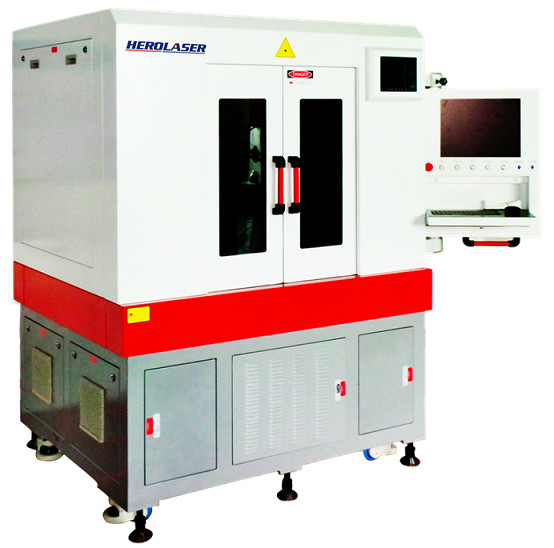

Water Cooling 10m/Min 500W Precision Metal Cutting Machine For Gold 1
