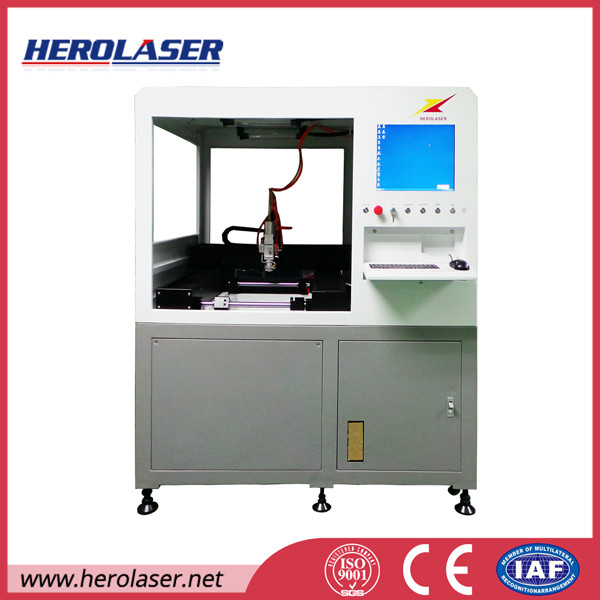

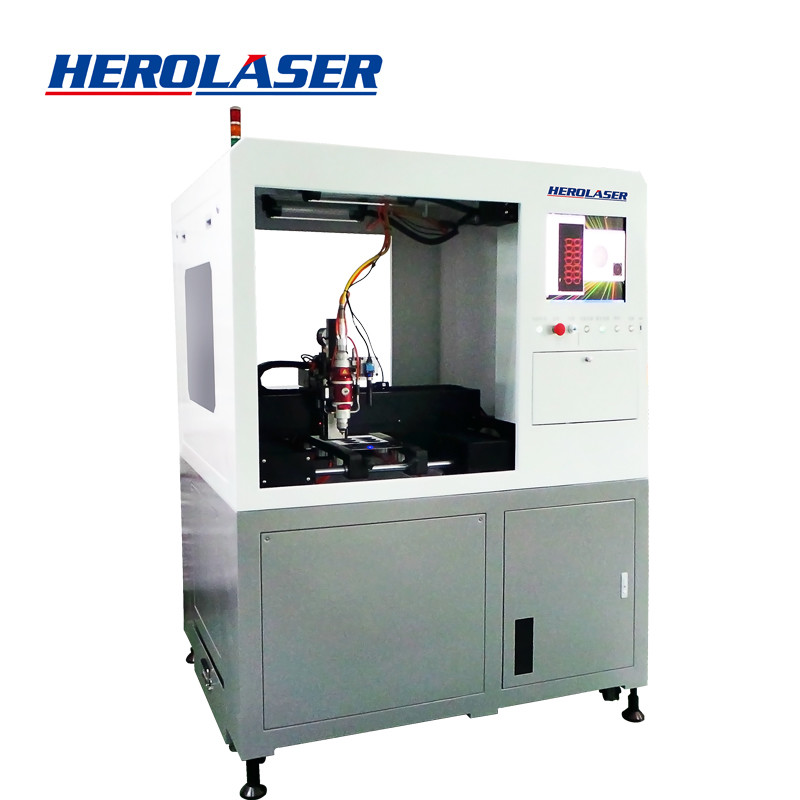

1070nm High Precision Laser Cutting Machine

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-CP-A01-500W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1500*1600*2000mm/1500 KG
Delivery Time 7-15 days
Payment Terms T/T, Western Union
Supply Ability 300 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Wevelength 1070 Nm Maximum Output Power 500W
Effective Cutting Range 600*350mm Cutting Thickness ≤2mm
Cutting Speed ≤10000mm/min Application Laser Cutting For Glasses
Function Cutting Metal Materials Cooling Mode Water Cooling
High Light

2mm High Precision Laser Cutting Machine


1070nm High Precision Laser Cutting Machine


1070nm tabletop laser cutter

Leave a Message
Product Description

Eyeglasses Cutting Machine High Precision Laser Cutting Machine for Spectacle Frame


Model introduction:
The special laser cutting machine for glasses can cut arbitrary design patterns on the plate, with fast speed, high precision, one-time forming, and no need for subsequent processing. It is dozens of times faster than wire cutting, which greatly improves the processing efficiency; visually discharging, close fitting, saving materials. One machine with multiple functions, not only can meet customers' requirements for cutting flat plates, but also can meet the cutting requirements of round pipes and special-shaped materials (square steel, flat iron, channel steel, square pipe)
Model features:
  1. It can cut various patterns on flat materials
  2. High precision, fast speed, narrow cutting seam, small heat-affected zone, smooth cutting surface without burrs.
  3. The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
  4. Very small local deformation of the workpiece, no mechanical deformation
  5. It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other materials of any hardness without deformation
  6. Optional visual positioning system can be used to accurately cut specific plates such as corroded printing.

Technical details:
S.N Item Specifications
1 Model type Laser cutting machine for glasses
2 Laser wavelength 1070nm
3 Maximum output power 500W
4 Effective cutting range 600*350mm
5 Cutting thickness ≤2mm
6 Cutting length range Within 3000mm
7 Cutting speed ≤10000mm/min
8 Positioning accuracy of worktable ≤0.05mm
9 Repeated positioning accuracy of worktable ≤±0.01mm
10 Electricity demand AC 220V ±5% /50Hz
11 Whole machine power consumption ≤3.5KW
12 Equipment size 1500*1600*2000mm
Applied range:
It is widely used in metal crafts, saw blades, glasses industry, spring blades, hardware and other industries. It can also be used in sheet metal processing and advertising sign font production.
Samples for reference:
1070nm High Precision Laser Cutting Machine 0
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample cutting or testing is available
  • Progressing solution design to all clients, including distributors and end users.


1070nm High Precision Laser Cutting Machine 1
