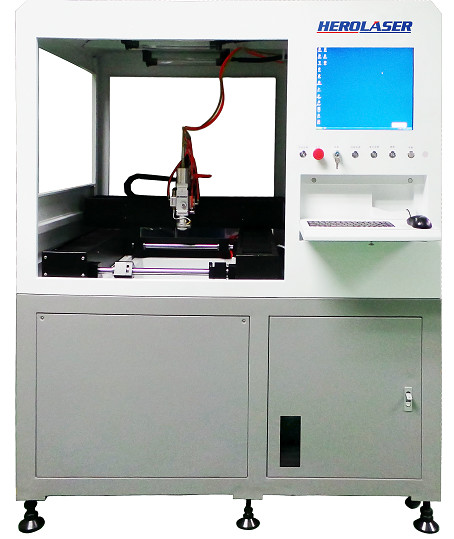

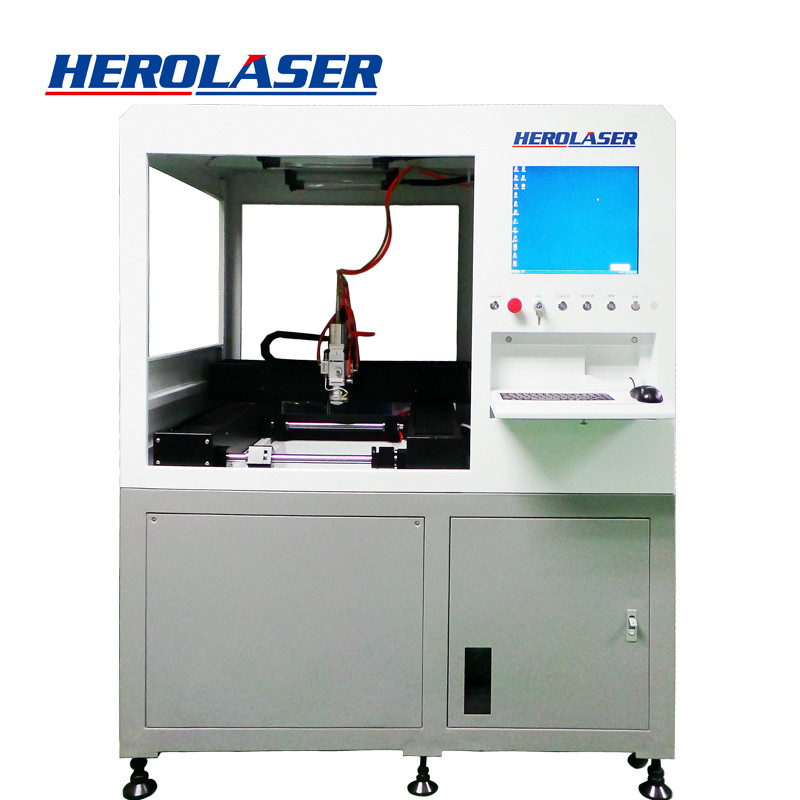

Herolaser Equipment 2mm High Precision Laser Cutting Machine For Glasses frame

  • Herolaser Equipment 2mm High Precision Laser Cutting Machine For Glasses frame
  • Herolaser Equipment 2mm High Precision Laser Cutting Machine For Glasses frame
  • Herolaser Equipment 2mm High Precision Laser Cutting Machine For Glasses frame
Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-CP-A01-500W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1500*1600*2000mm/1500 KG
Delivery Time 7-15 days
Payment Terms T/T, Western Union
Supply Ability 300 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Wevelength 1070 Nm Maximum Output Power 500W
Effective Cutting Range 600*350mm Cutting Thickness ≤2mm
Cutting Speed ≤10000mm/min Application Laser Cutting For Glasses
Function Cutting Metal Materials Cooling Mode Water Cooling
High Light

Herolaser Equipment High Precision Laser Cutting Machine

,

2mm High Precision Laser Cutting Machine

,

Herolaser Equipment glass cutting cutter
Leave a Message
Product Description

Glasses Frame High Precision Laser Cutting Machine Adds Originality for Glasses Manufacture



Model introduction:

The function of glasses frame laser cutting machine is powerful, can cut any design graphic on plates and applicable to cut the precision work-pieces; the cutting speed is ten times faster than the wire cutting process; the material laying is visible during process for tight fitting, in this way, it can save a lot of material. It is a machine with multi-use, not only does it meet customer’s requirement for cutting flat plates, but also can meet the requirement for cutting the tube and other special shape materials (square steel, flat iron, channel, square tube) of any harness without distortion. glasses frame laser cutting machine plays an important role in the glasses industry. Laser technique maximizes the beauty of the glasses because of its profession and preciseness. Spectacle-frame laser cutting machine helps you to create stylish look.

Model features:

  • It can cut a variety of graphics on a flat plate.
  • High precision & speed, narrow cutting gap, small heat affect area, the cutting surface is smooth and no burrs.
  • Laser cutting head does not contact with the material surface, so it will not scratch the material.
  • Small head, easy to door, easy loading and unloading.
  • With good flexibility of processing, it can proceed any graphics, also can cut tube material and other special material
  • It can be used to process a variety of materials such as metal, stainless steel, aluminum, aluminum alloy, hard alloy of any harness material without distortion.
  • Visual positioning system can be optional, it can accurately located corrosion printing on special plates for precise cutting.

​

Technical details:

S.N Item Specifications
1 Model type Laser cutting machine for glasses
2 Laser wavelength 1070nm
3 Maximum output power 500W
4 Effective cutting range 600*350mm
5 Cutting thickness ≤2mm
6 Cutting length range Within 3000mm
7 Cutting speed ≤10000mm/min
8 Positioning accuracy of worktable ≤0.05mm
9 Repeated positioning accuracy of worktable ≤±0.01mm
10 Electricity demand AC 220V ±5% /50Hz
11 Whole machine power consumption ≤3.5KW
12 Equipment size 1500*1600*2000mm

Applied range:

Widely applied to sheet -metal processing, advertising board word production, machinery parts, kitchen utensils, metal crafts, saw bit, eyeglasses industry, spring pieces, hardware and other industries. It can be applied for cutting of carbon steel, stainless steel, aluminum, copper, silver, gold, titanium and other metals.

Samples for reference:

Herolaser Equipment 2mm High Precision Laser Cutting Machine For Glasses frame 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample cutting or testing is available
  • Progressing solution design to all clients, including distributors and end users.



Herolaser Equipment 2mm High Precision Laser Cutting Machine For Glasses frame 1
