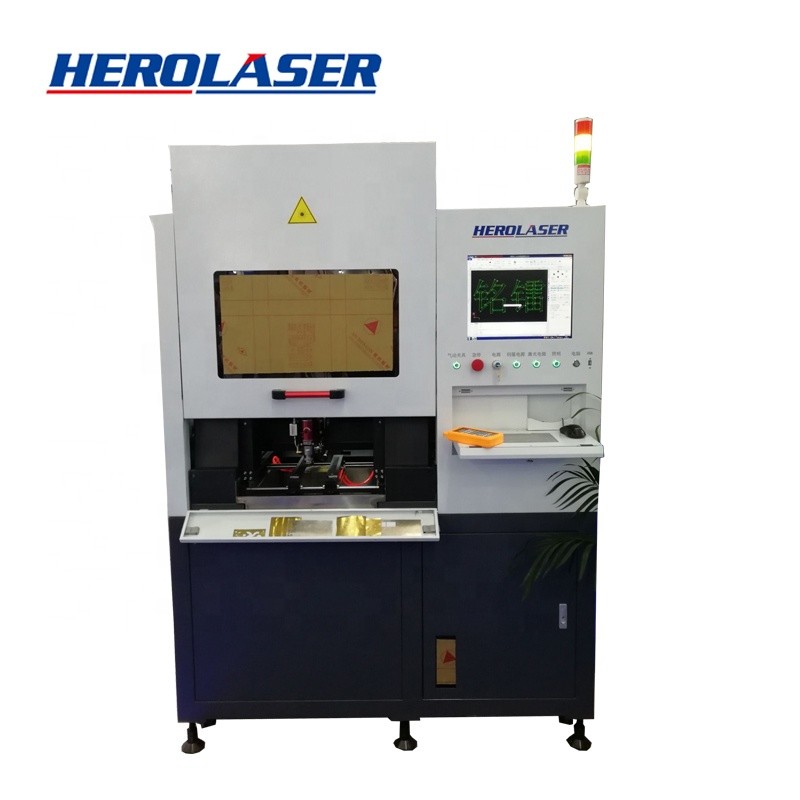

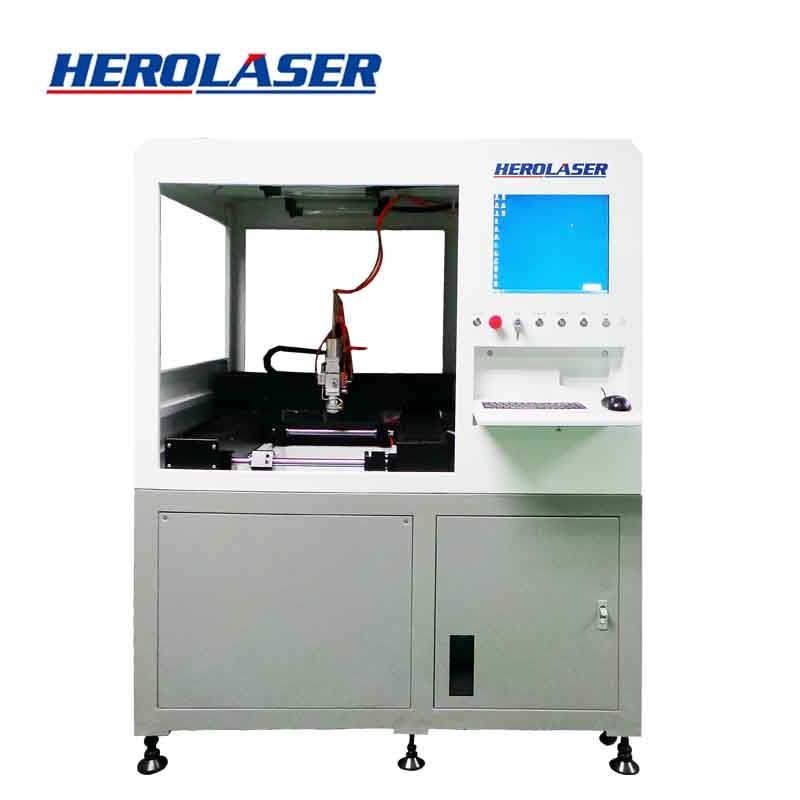

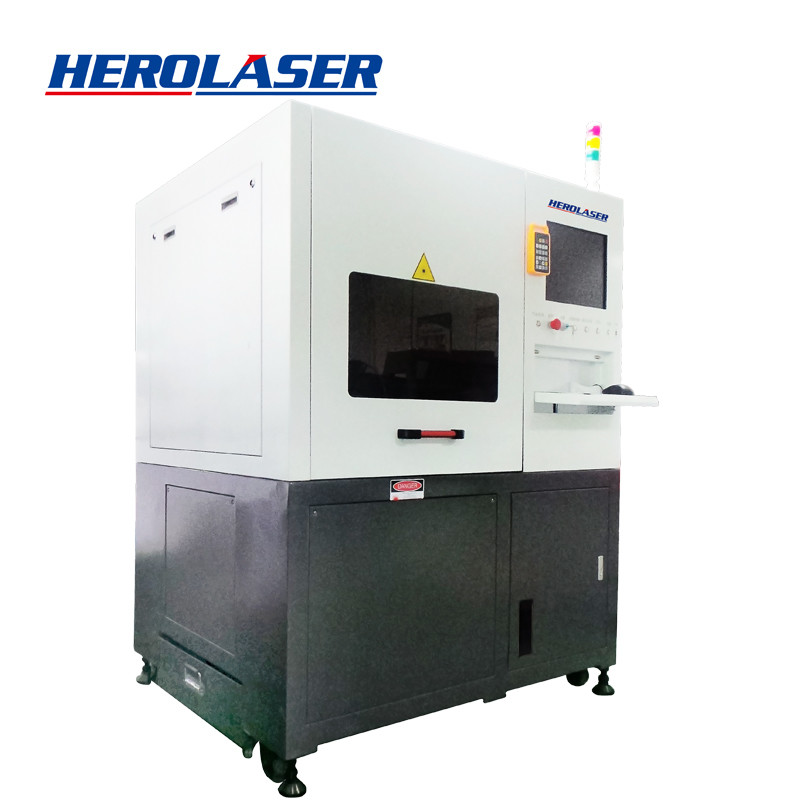

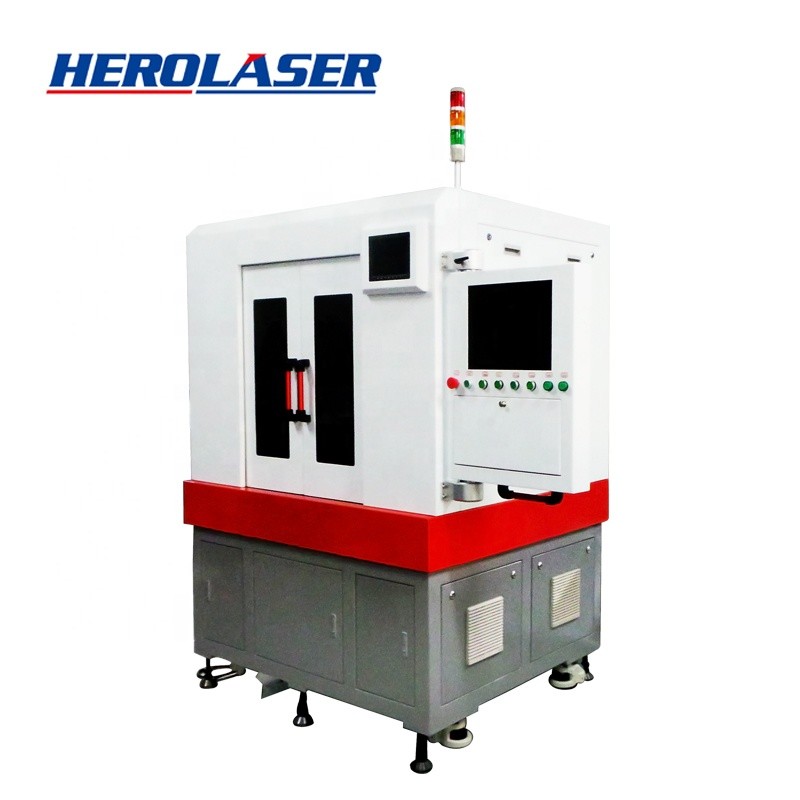

Herolaser Metal Pipe 400 500W Laser Cutting Machine

Place of Origin China
Brand Name Herolaser
Certification CE,FDA
Model Number ML-C4-QF-OC-IW500
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case package: 1700 ×1250 ×1750 mm/1500 KG
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Herolaser Laser Type Fiber Laser
Cutting Area 600*400mm Cutting Speed 10000mm/min
Warranty 2 Years Keyword Fiber Laser Cutting Machiens
Cutting Thickness 0-8mm Working Table Locate Accuracy 0.05mm
High Light

500W Laser Cutting Machine

,

400W Laser Cutting Machine

,

Herolaser Metal Pipe Cutting Machine

Leave a Message
Product Description

laser cutting machine metal pipe cutting machine 400/500W more efficiency



Product Introduction



Widely used in metal crafts, metal products, precision machinery, auto parts, glasses, jewelry, nameplates, electronics, toys, advertising and other industries







1. 40%high electronic / optic convention rate, more efficiency ;

2. laser beam quality(M2<1.1 ) ,line width is less than 0.12mm;

3. 100,000 hours(more than 10 years ) service life without consumable parts;

4. 10 meters per minute max cutting speed;

5. Fiber transmission, maintenance-free;

6. Low power consumption.





Advantages and Features





1
  • Original recovery system: fully enclosed double-layer protection, cutting inside the cavity, the recovery rate is greater than 99.95%
2
  • High cutting precision, fast speed, narrow cutting seam, extremely small heat-affected zone, smooth cutting surface without burrs
3
  • Fiber life can reach 100,000 hours





Technical Specs



S.N Item Specifications
1 Model type Precious metal precision cutting machine
2 Laser wavelength 1070nm
3 Maximum output power 500W
4 Effective cutting range 600*350mm
5 Cutting thickness ≤2mm
6 Cutting length range Within 3000mm
7 Cutting speed ≤10000mm/min
8 Positioning accuracy of worktable ≤0.05mm
9 Repeated positioning accuracy of worktable ≤±0.01mm
10 Electricity demand AC 220V ±5% /50Hz
11 Whole machine power consumption ≤3.5KW
12 Equipment size 1500*1600*2000mm





Applications:



It is suitable for a variety of laser processing such as cutting and perforating a variety of metal sheets, such as cutting of hardware, consumer electronic components, various instruments, and sheet metal processing.



Cutting samples for reference



Herolaser Metal Pipe 400 500W Laser Cutting Machine 0



Herolaser Metal Pipe 400 500W Laser Cutting Machine 1





FAQ



1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample cutting or testing is available
  • Progressing solution design to all clients, including distributors and end users.
