1500W - 20000W RECI Fiber Laser Tube Cutting Machine

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number 6020D
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Model ML-P6020D Laser IPG/RECI/MAX
Power 1500W~20000W Pipe Circumcircle Diameter Φ20mm~Φ220mm
High Light

20000W Fiber Laser Tube Cutting Machine

,

1500W Fiber Laser Tube Cutting Machine

,

RECI Fiber Laser Tube Cutter

Leave a Message
Product Description

High Efficiency Fiber Laser Tube Cutting Machine (1500W~20000W)



Parameters of Herolaser ML-P6020D Laser Cutting System

Machine model: ML-P6020D
Laser: IPG, RECI, MAX
Power: 1500W ~ 20000W
Linear axis speed: 100 m/min
Rotary axis speed: 100 rpm
Pipe circumcircle diameter: Φ20mm~Φ220mm
Material and thickness (1.5KW): stainless steel 4 mm, carbon steel 8 mm (cutting capacity depends on laser power)
Feeding length: 6300 mm (automatic feeding)
Blanking length: 2000 mm (with support, the length can be extended)
Residual length: 110 mm
Max. single tube weight: 40 kg/m
Machine weight: around 6.8 t
Machine size: 11000 x 2300 x 2400 mm

  • Advantages of Herolaser ML-P6020D Laser Cutting System



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 0

Bed structure: horizontal gantry structure, processing technology: whole welding annealing, vibration aging, finishing.



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 1

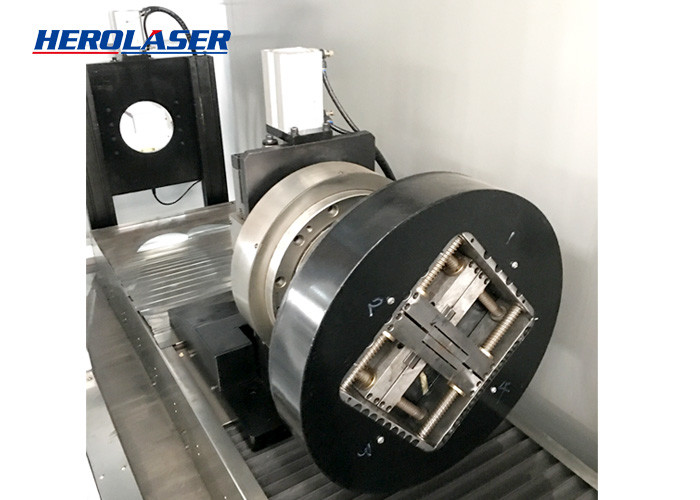

Front and rear chucks: the front chucks are full stroke chucks with small moment of inertia and fast acceleration; The front chuck adopts the side suction mode, and the rear chuck adopts the tail suction mode, so that the dust and smoke in the cutting area are less, and the inner wall of the cutting workpiece is cleaner.



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 2

Feeding support: the support opening degree of fixed roller can be adjusted manually, which is suitable for cutting support requirements of different pipe types and diameters.



Water Cooling ISO9001 IPG Laser Tube Cutting Machine For Square Tube 3

Blanking structure: blanking is a combination of fixed roller and slope sliding.


  • Various Cutting Samples of Herolaser ML-P6020D Laser Cutting System



1500W - 20000W RECI Fiber Laser Tube Cutting Machine 4
