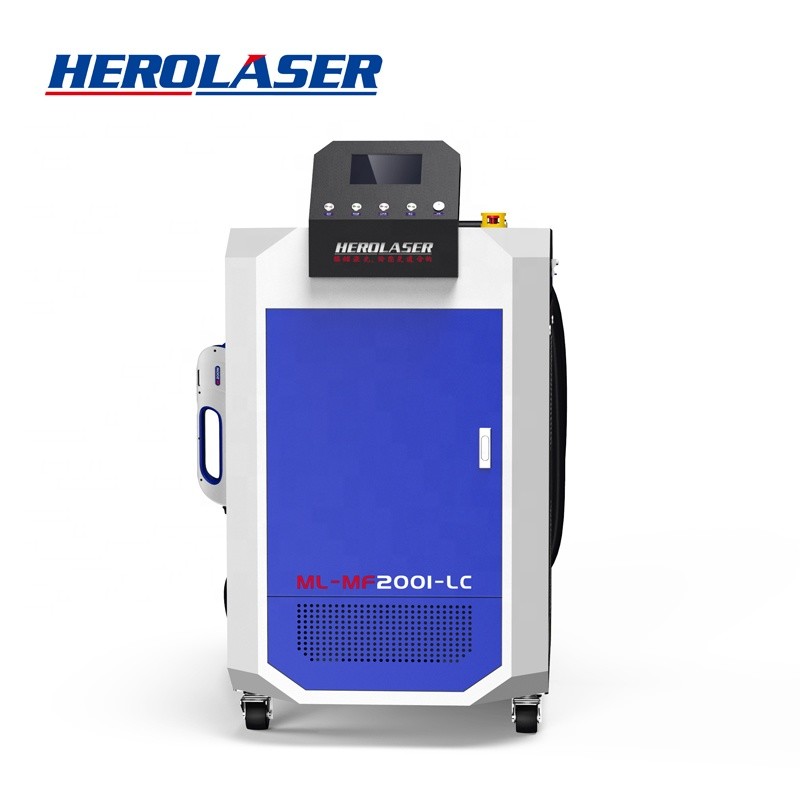

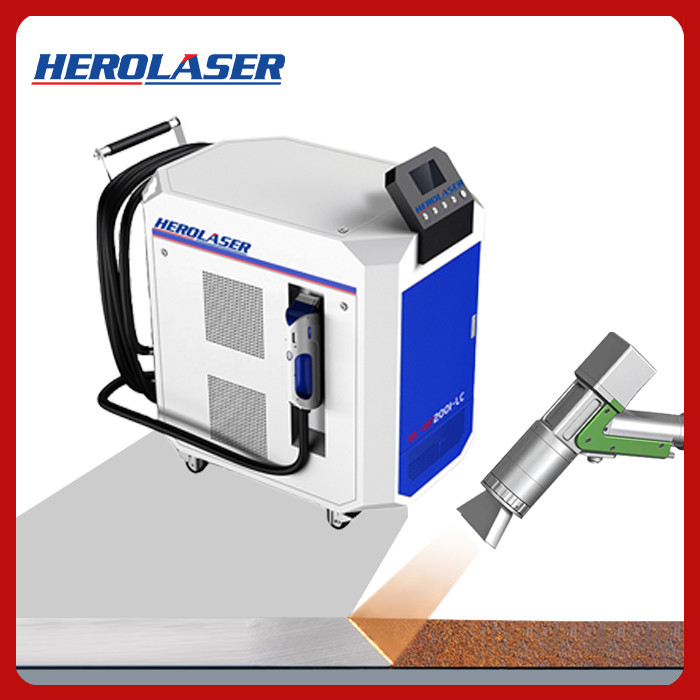

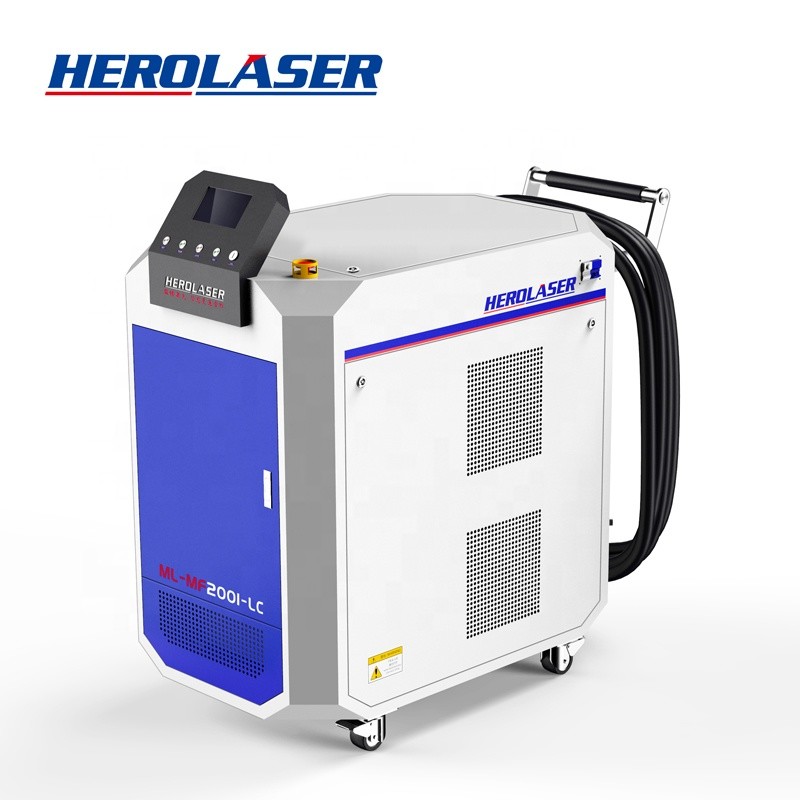

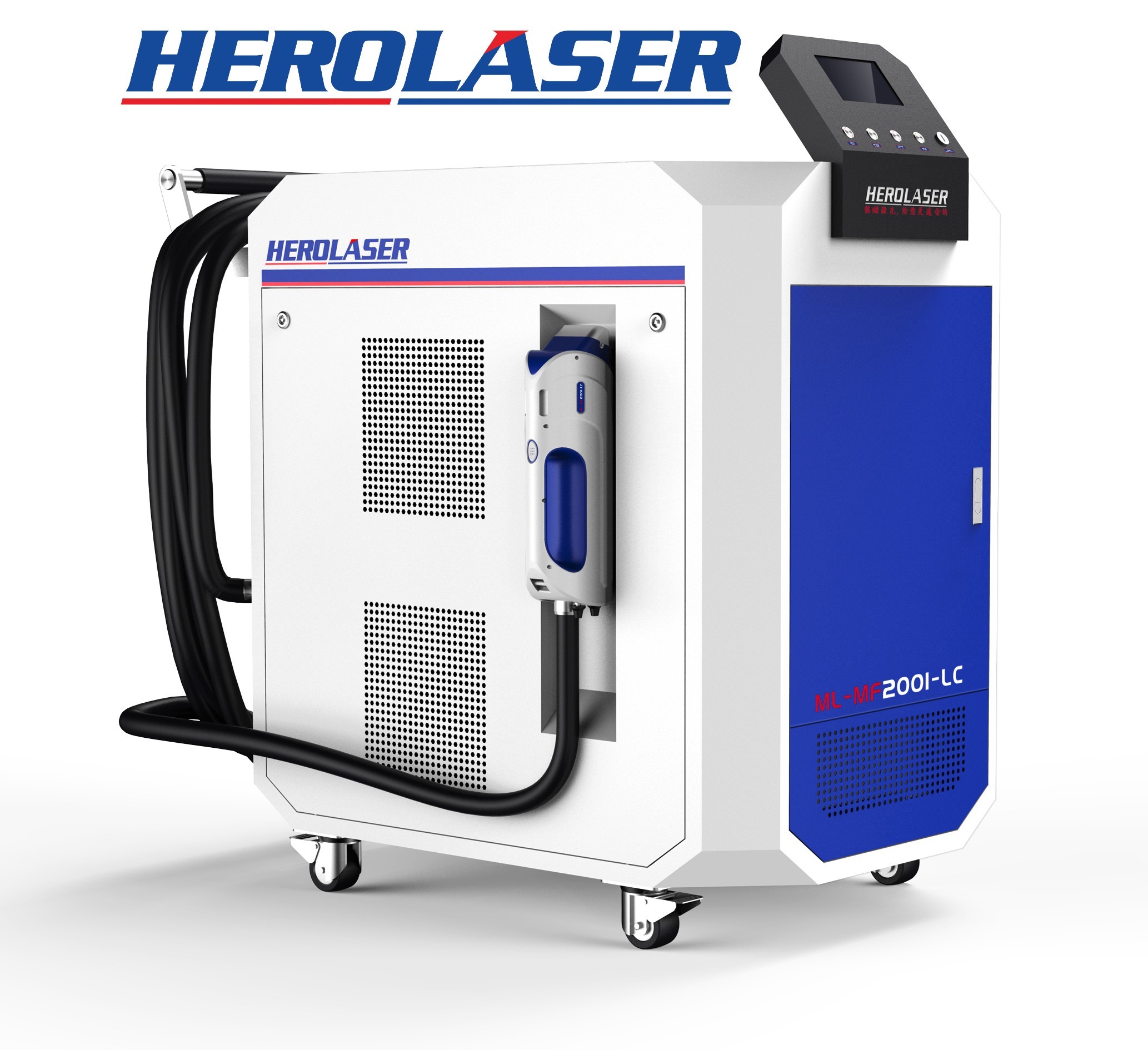

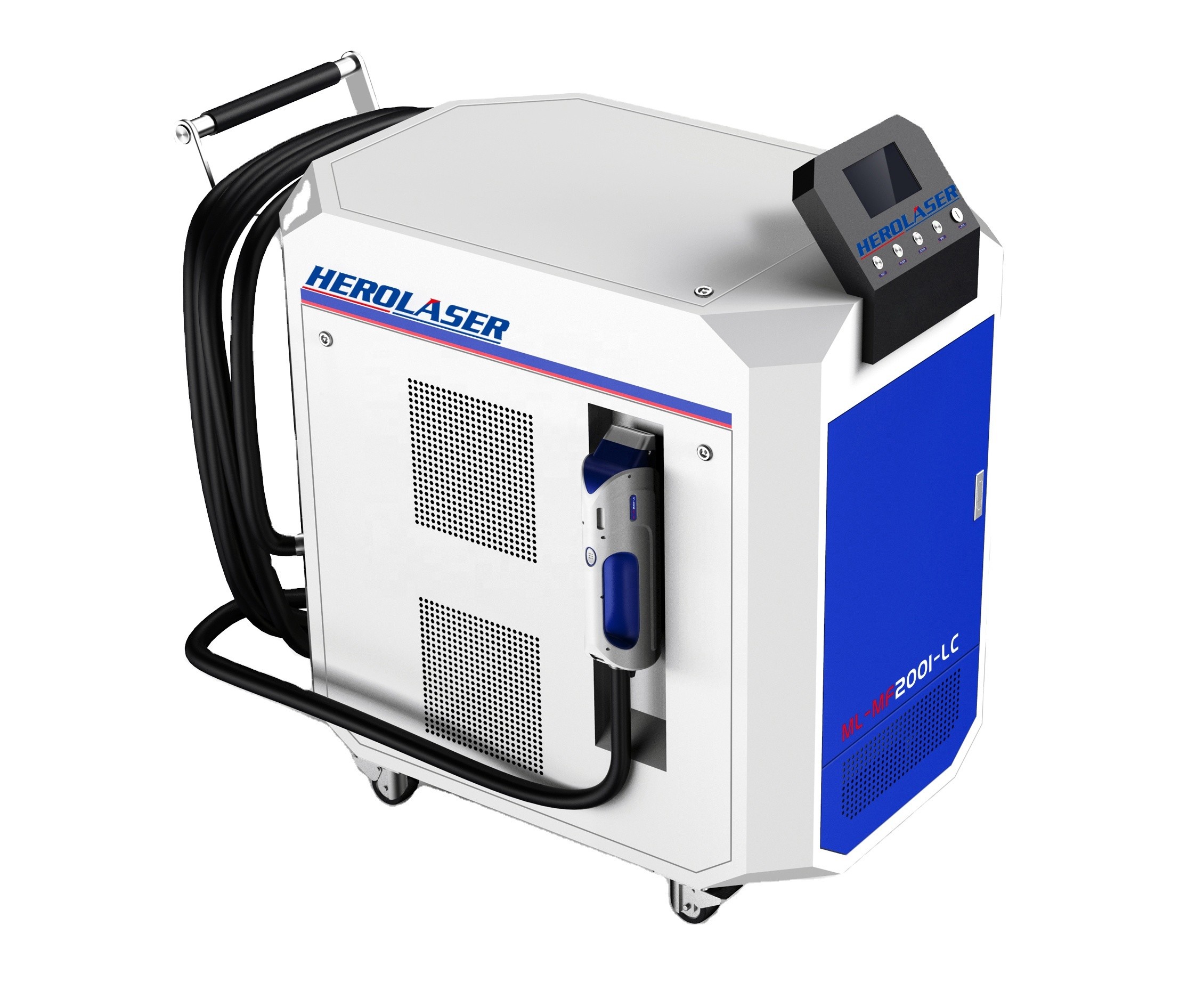

200W IPG Laser Cleaning Machine For Paint And Rust Removal
| Place of Origin | CHINA |
|---|---|
| Brand Name | Purple Horn |
| Certification | CE/ISO9001/FDA |
| Model Number | ML-MF-200l-LC |
| Minimum Order Quantity | 1 Set |
| Price | $ Nagotiable |
| Packaging Details | Plywood Box |
| Delivery Time | 7-10 Work days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal |
| Supply Ability | 100 Sets Per Month |
Product Details
| Model | ML-MF-200l-LC | Laser Power | 200W |
|---|---|---|---|
| Laser Source Type | IPG Fiber Laser Source | Laser Wavelength | 1064 Nm |
| Cooling Method | Water Cooling | Water Temperature | 18-22 ℃ |
| Maximum Power | 2000 W | Scan Width | 10-60mm |
| Auxiliary Gas | Compressed Air/Nitrogen | Warranty | 12 Months (Laser Warranty 24 Months) |
| Highlight | IPG Laser Cleaning Machine,200W Laser Cleaning Machine,IPG Laser Paint And Rust Remover |
||
Product Description
200W Fiber Laser Rust Removal Machines, Laser Paint And Rust Removal Tool
Laser cleaning is a new "Green-cleaning" technology based on the interaction effect between laser and matter.
Purple Horn has made a continious fiber laser cleaning machine enables you to effortlessly get rid of organic pollutants and inorganic substances, including metal corrosion, metal particles, dust particles etc, from metal, plastic, ceramics, glass, stone or concrete.
This large continious fiber laser cleaner is ideal for both small and large area cleaning. Supporting non-contract cleaning mode using without any chemical agents, this advanced laser cleaner promises efficient and environment-friendly cleaning.
Unlike other traditional mechanical cleaning, chemical cleaning and ultrasonic cleaning; laser cleaning does not require any CFC that destroys the ozone layer Organic solvents,no pollution, Can remove resin, oil, stain, contaminant, rust, coating, plating,paint etc,. It is totally environment-friendly that's why we call it "Green-cleaning" technology.
Technical Parameter
| Description of high efficiency laser cleaning machine | |
| Model | ML-MF-200l-LC |
| Laser power | 200W |
|
Laser source type |
Fiber laser source |
| Laser wavelength | 1064 nm |
| Cooling water | Deionized water |
|
Cabinet size |
1089mm*450mm*550mm (L*W*H) |
| Total weight(with water tank) | 225kg |
| Maximum power | 2000W |
| Focal depth | 10mm |
| Auxiliary gas | Compressed air/Nitrogen |
| Air pressure | 0.5-0.8 MPa |
| Optional accessory | Handheld / Manipulator |
| Working condition | 5-40 ℃ |
Application
| Application | |||
| Rust Removal | Oxide Removal | Molding Cleaning | Surface Preparation |
| Coatings Removal | Weld Pre-treatment | Gluing Pre-treatment | Removal of Oil and Grease |
| Paint Removal | Surface Cleaning | Stain Removal | Surface Roughening |
| Tool Cleaning | Historic Restoration | Selective Paint Removal | Precise Cleaning |
Features
- Non-contact cleaning, no damage to work piece;
- Precision positioning, selective cleaning;
- Safe & environment-friendly. Without using chemical detergent or other consumables;
- Easy to operate, with portable mode and could be equipped with robot for automatic cleaning;
- High efficiency, time-saving;
- Low noise level, low dust particle creation;
- Low energy consumption;
- Stable laser cleaning system, practically maintenance free.
