Intelligent 12000W Laser Cutting Machine For Sheet Metal

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-CF-6025FB-HW12000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package
Delivery Time 30 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Wavelength 1070nm Laser Output Power 12000W
Effective Cutting Range 6000mm*2500mm Positioning Accuracy ±0.04mm/m
Repeatable Positioning Accuracy ±0.02mm/m Max. Running Speed 1.2G
Machine Tool Bearing 4 Tons Support For Graphic Formats Plt/dxf,etc
High Light

Intelligent 12000W Laser Cutting Machine

,

Sheet Metal 12000W Laser Cutting Machine

,

Intelligent 12000W Laser Cutter

Leave a Message
Product Description

Intelligent 12000W High Power Laser Cutting Machine for Stainless Steel Sheet Metal



Introduction:



ML-CF-6025FB series laser cutter is a fiber laser cutting machine with advanced structure design and excellent machine tool performance, which applies the world-class CNC and fiber laser. It adopts gantry-type double-drive structure ,integral welded base and rack so that vibration aging treatment is carried out to eliminate the stress during welding and processing after rough machining ;and pinion transmission structure with fast speed, high precision, one-time cutting and forming without subsequent processing.

Greatly improve the processing efficiency, the layout is visible, the cutting is tight to save material. Advanced technology can increase the progress of your company's new product development and recover your equipment investment cost soon.

It is widely used in sheet metal processing, advertising sign production, mechanical parts, kitchen utensils, metal crafts, saw blades, hardware and other industries; also be used for cutting carbon steel, stainless steel, aluminum alloy, carbon steel, copper and other metals.



Features and advantages:



1. Intelligent processing.

It can automatically use standard measuring instruments, edge finding, processing and platform exchange functions after enter the plates thickness and material in the system, eliminating the repetitive operation of batch platess cutting, reducing labor intensity and improving processing efficiency.



2. Zero second perforation

  1. Stepless perforation greatly reduces the perforation time by about 75% and improves the processing efficiency;
  2. Continuous perforation, high stability, the waste hole rate is reduced from about 5% to 0.2%, improves the integrity of the workpiece;
  3. High accuracy rate, less slag accumulation, stable follow-up, stable start cutting point, ensuring the best cutting section;
  4. Reduce perforation time, save gas, reduce power consumption, reduce the risk of damage to lasers and cutting heads, and improve material utilization;
  5. The encapsulation technology is ready to learn and use, simplify the different processing scenarios and needs



3. Small hole cutting, reaching the limit of plates thickness



The field of laser cutting always been considered that the thickness of the plates is the minimum diameter of the cut hole, and the S series achieves a minimum hole diameter of 0.2 times or less than the thickness of the sheet.



4. Perfect sharp corner cutting technology



the smallest aperture ≤ 0.2 times the plates thickness of sharp corner cutting products

The perfect sharp corner cutting process is a new process developed for high-quality cutting of carbon steel thick platess. Compared with the previous standard cutting process, the new process has a faster cutting speed and a smaller section slope (35mm carbon steel 15 wires/unilateral).



5. Double Exchange platform



High and low switching table, complete a switching time ≦20 seconds, greatly improve the processing efficiency, save labor costs.



6. Automatic location and edge search function



The system has automatic positioning and edge finding function, which makes the feeding more random, faster and faster



Technical data:

No. Name Parameter
1 Device model ML-CF-6025FB
2 Laser wavelength 1070nm
3 Laser output power 12000W
4 Effective cutting range 6000mm*2500mm
5 Cutting thickness (related to laser power) Carbon steel≤35mm ;stainless steel≤25mm;Aluminum Alloy≤18mm;brass≤12mm;
6 Positioning accuracy ±0.04mm/m
7 Repeatable positioning accuracy ±0.02mm/m
8 Max. running speed 100m/min
9 Max. accelerated speed 1.2G
10 Machine tool bearing 4 tons
11 Demand for electricity AC380V±5%/50Hz
12 Whole machine power consumption 160KW
13 Machine size 15000*3700*2200mm (length*width*high)
14 Weight About 17 tons
15 Support for graphic formats plt/dxf,etc


Application:



Widely used in sheet metal processing, advertising signs, mechanical parts, kitchenware, metal crafts, saw blades, hardware and other industries.

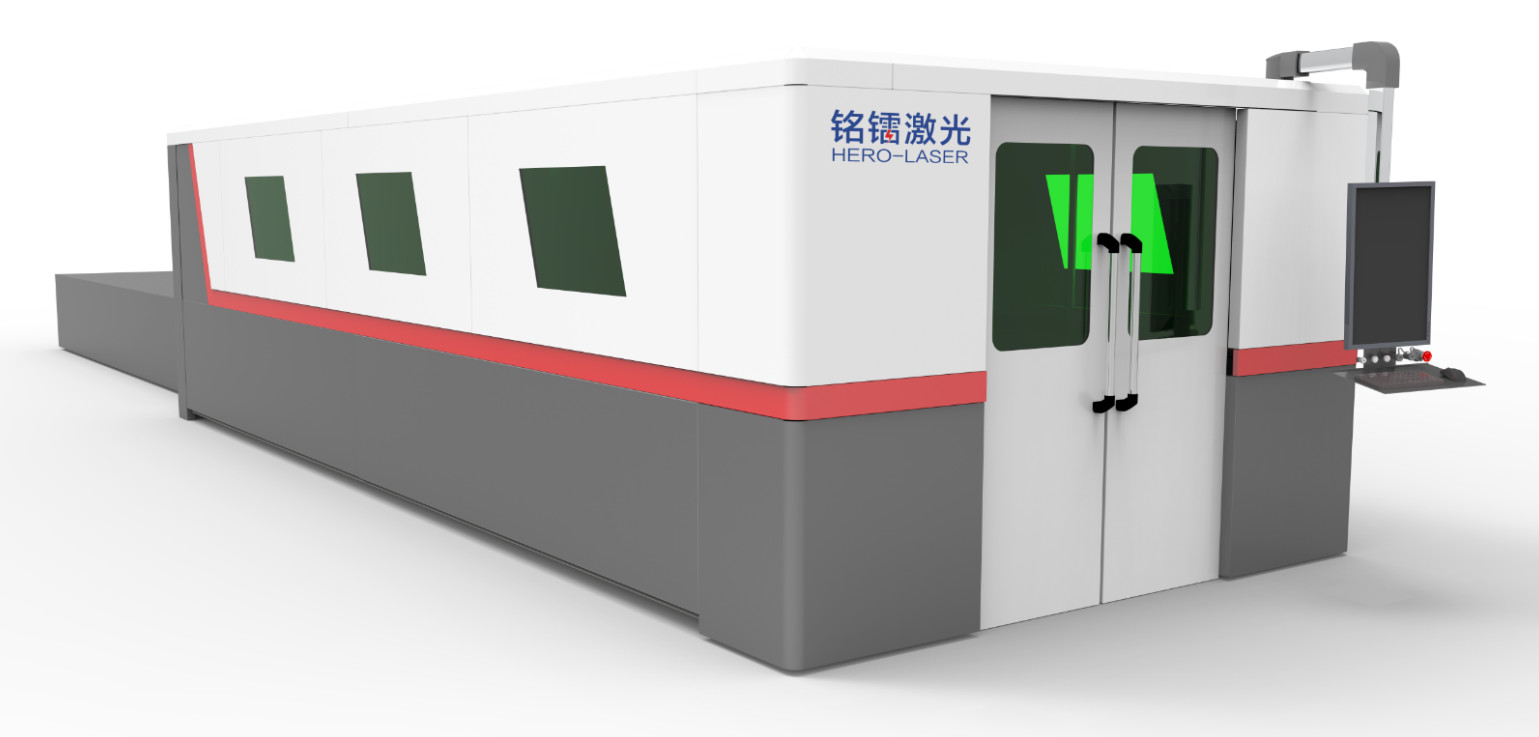

Intelligent 12000W Laser Cutting Machine For Sheet Metal 0

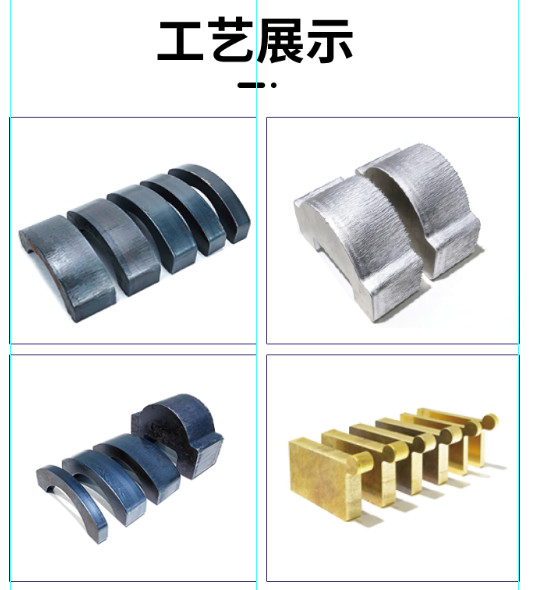

Cutting samples:



Intelligent 12000W Laser Cutting Machine For Sheet Metal 1



Intelligent 12000W Laser Cutting Machine For Sheet Metal 2
