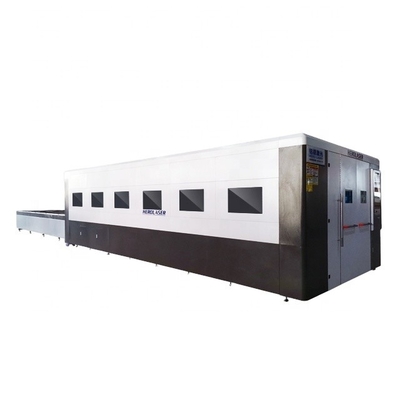

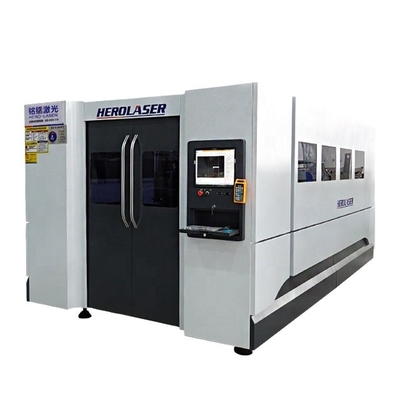

CNC Fiber Laser Cutting Machine For Steel Metal Key Aluminum Fencing Panel Wall

Place of Origin China
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-CF-3015FB1500
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
20m/min (up To The Material) 20m/min (up To The Material) Power Requirement 380V/50Hz/50A
Max Cutting Range 6000*2000mm Power Comsumption 2.5kw
Laser Input Power 1.2kw Control Software Cypcut
Machine Dimension CE
High Light

2.5kw Fiber Laser Cutting Machine

,

CNC Laser Cutting Machine 50A

,

20m/min Sheet Metal Fiber Laser Cutting Machine

Leave a Message
Product Description

CNC Fiber Laser Cut Cuttting Machine Machinery For Steel Metal Key Aluminum Fencing Panel Wall




Model Profile:

6020 Series The laser cutting machine is a fiber laser cutting machine with advanced structural design and excellent machine tool performance. It uses a world-class CNC system and fiber laser. The gantry double-drive structure is applied, and the integral welded base is adopted. It adopts a rack and pinion transmission structure with fast speed, high accuracy, and one-time cutting and forming without subsequent processing. Greatly improve processing efficiency; visible layout, close fit, saving materials. Advanced technology can increase the speed of your company's new product development and recover your equipment investment cost as soon as possible.



Model Features:

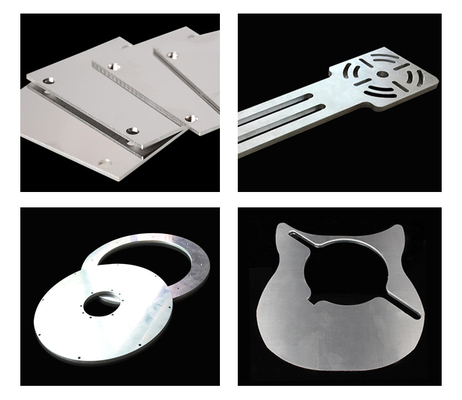

- Can cut all kinds of graphics on planiform plates.
- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.
- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.
- Good processing flexibility, can process any graphics.
- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.

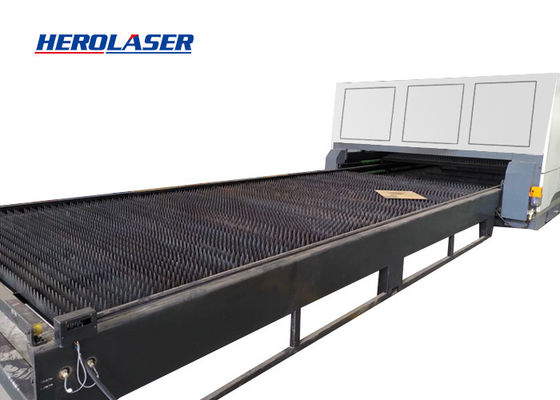

- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.
- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.



Model Profile:

6020 Series The laser cutting machine is a fiber laser cutting machine with advanced structural design and excellent machine tool performance. It uses a world-class CNC system and fiber laser. The gantry double-drive structure is applied, and the integral welded base is adopted. It adopts a rack and pinion transmission structure with fast speed, high accuracy, and one-time cutting and forming without subsequent processing. Greatly improve processing efficiency; visible layout, close fit, saving materials. Advanced technology can increase the speed of your company's new product development and recover your equipment investment cost as soon as possible.



Model Features:
- Can cut all kinds of graphics on planiform plates.
- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.
- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.
- Good processing flexibility, can process any graphics.
- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.
- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.
- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.



Model Profile:

6020 Series The laser cutting machine is a fiber laser cutting machine with advanced structural design and excellent machine tool performance. It uses a world-class CNC system and fiber laser. The gantry double-drive structure is applied, and the integral welded base is adopted. It adopts a rack and pinion transmission structure with fast speed, high accuracy, and one-time cutting and forming without subsequent processing. Greatly improve processing efficiency; visible layout, close fit, saving materials. Advanced technology can increase the speed of your company's new product development and recover your equipment investment cost as soon as possible.



Model Features:
- Can cut all kinds of graphics on planiform plates.
- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.
- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.
- Good processing flexibility, can process any graphics.
- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.
- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.
- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.



form 2.jpg



Machine Parameters:

S/N Name Model Remarks
1 High power fiber laser cutting machine ML-CB-6020T Herolaser
2 Numerical control system CypCut Shanghai Bochu
3 Servo drive Fuji Japan
4 Reducer Modoli France
5 X, Y-axis rack YYC Taiwan China
6 Z-axis lead screw HIWIN Taiwan China
7 Linear guide rail HIWIN Taiwan China
8 Laser MAX/RECI/IPG China/German

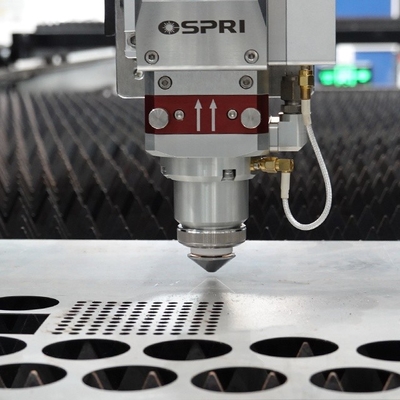

9 Cutting head Osprey China
10 Cooling-water machine Teyu China
11 Pneumatic components SMC (or equivalent) Japan
12 Electrical components Schneider (or equivalent) France




Cutting Process Parameters

There are differences due to different types of cutting head and laser. Taking 1500W as an example, the following parameters are for reference only:



S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2



S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2



S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2









After-Sales Services



1. 2 year guarantee for laser source(people damaged are charged)


2. Full technical support / by e-mail, call and video


3. Spare parts supply.


4. Free online training installation and operation


5. 12 hours quick feedback & after-sales services


6. ODM/OEM service



FAQ



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
