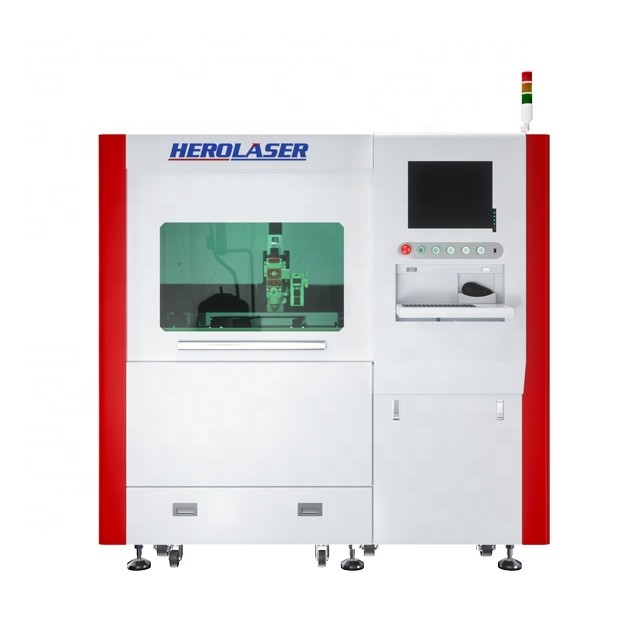

Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal

Place of Origin China
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-C6-QFST
Minimum Order Quantity 1 Set
Price $36000~45000/set
Packaging Details Wooden Case
Delivery Time 7 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
ML-C6-QFS 1070nm Laser Wave Length ≤20m/min
Max Speed Of X-axis ≤20m/min Max Speed Of Z-axis AC220V±5%50Hz
Power Supply AC220V±5%50Hz Dimension Size 1880*1450*2100(mm)
High Light

20m/min High Precision Laser Cutting Machine

,

1070nm High Precision Laser Cutting Machine

,

1500W Laser Cutting Machine

Leave a Message
Product Description

Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal 0





Optical performance parameter
Laser source wavelength
ML-C6-QF
Output power rate of the Laser source
1070nm
Effective cutting area
600mm*600mm
Cutting thickness (depend on Laser source power)
Carbon ≤8mm;Stainless Steel ≤4mm;
Aluminum Alloy ≤2mm; Copper ≤2mm;
Positioning accuracy
≤±0.03mm
Repeated position accuracy
≤±0.02mm
Max speed of X-axis
≤20m/min
Max speed of Y-axis
≤20m/min
Max speed of Z-axis
≤17m/min
Synthesis speed
≤20m/min
Max accelerated speed
0.3G
Bearing weight
300KG
Electric demand
AC220V±5%50Hz
Total Power consumption
6KW-25KW
Dimension
1880*1450*2100(mm)
Machine weight
About 1200KG
Support Graphical format
DXF



Herolaser 1500 Watt High Precision Laser Cutting Machine Glasses Stainless Steel Metal Automatic Cutting Machine


Laser cutting uses a high-power density laser beam to quickly heat the material to vaporization temperature and evaporate to form a hole, move the beam to form a slit, so that realize the materials cutting .

Based on this ,Herolaser small area high precision cutting machine also achieves high-precision cutting, no tool wear, low heat impact, fast speed, automatic positioning, automatic correction and other functions.

Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal 1
Characteristics
1. High Precision laser cutting machine
Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization
of the materials, strong expandability , and very flexible

2. High-precision host
Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable

3. Laser cutting head
The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure
the cutting efficiency and cutting effect

4. Precise cutting
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat
Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal 2

Sample Show
Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal 3
Applicable Industry
Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal 4Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal 5Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal 6Herolaser 1500W High Precision Laser Cutting Machine For Glasses SS Metal 7

After-sales Services

① 2 year guarantee for laser source(people damaged are charged)

② Full technical support / by e-mail, call and video

③ Spare parts supply

④ Free online training installation and operation

⑤ 12 hours quick feedback & after-sales services

⑥ ODM/OEM service

FAQ



1. What model does Herolaser produce?

Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.


2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.


6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.


9.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
