6012D Automatic Laser Pipe Cutting Machine For Iron Carbon Steel

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number 6012D
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 25-45 days
Payment Terms L/C, T/T, D/A, D/P, Western Union
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML-P6012D Application Metal Pipe Cutting Machine
Cutting Speed Depends On Material Cutting Thickness Depends On Material
Laser Power 1500W-20000W Material Steel, Iron, Alloy, Aluminum, Stainless
Cooling Mode Water Cooling,protection System Graphic Format Supported PLT,AI,DXF
Warranty 2 Years Cutting Area 6000mm
Function Cutting Metal Plates And Pipes Control System Cypcut Control System
Laser Wave Length 1070nm Positioning Accuracy ≤±0.05mm
≤±0.05mm ≤±0.05mm
High Light

1070nm Laser Pipe Cutting Machine

,

Cypcut Laser Pipe Cutting Machine

,

20KW Laser Tube Cutting Machine

Leave a Message
Product Description

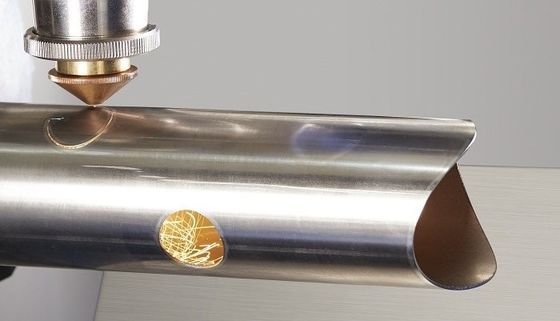

6012D automatic Pipe tube Cutting machine cutter for iron carbon steel



Product Instruction:

ML-P6020D laser pipe cutting machine is a standard optical fiber laser pipe cutting machine developed by Herolaser. It adopts long-term stable and reliable advanced medium and high-power optical fiber laser, selects high-precision gear rack, imported high-precision linear guide rail and other high-efficiency transmission components, and is a precision CNC automatic laser pipe cutting machine assembled through WEIHONG professional pipe cutting control system. It is a high-tech product integrating the latest laser cutting, precision machinery, numerical control technology and other disciplines. It is mainly used for cutting metal pipes such as carbon steel pipe and stainless steel pipe (square pipe, round pipe and rectangular pipe). It is a useful cutting tool in the metal pipe processing industry. The bed adopts horizontal gantry structure and combined transmission mode of gear rack and screw. Transmission components such as reducer, guide rail and gear rack are well-known brands. It has the characteristics of stable structure, good rigidity, light weight and high dynamic response. It is a professional laser pipe cutting machine with high efficiency, precision and stability.



Features:1. High Precision laser cutting machine
Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization
of the materials, strong expandability , and very flexible

2. High-precision host
Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable

3. Laser cutting head
The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure
the cutting efficiency and cutting effect

4. Precise cutting
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat



Advantages:
- Pneumatic Chuck - labor saving and production increasing:
Pneumatic clamping, large and stable clamping force to ensure high-precision cutting,
Special support frame can avoid pipe sagging and deformation, improve cutting accuracy and prolong the service life of chuck.
- Intelligent Large Screen Operating System:
Intelligent operation pipe cutting system, simple interface operation, efficiency greatly improved, unique graphic database without manual programming.
- Automatic Sensing Laser Cutting Head
High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the material surface to ensure the perfection of the workpiece.
- Horizontal Gantry Structure
Gear rack and screw combined transmission mode can obtain high stability, good rigidity, light weight and high dynamic response.



Parameters:

No. Item Parameter
1 Model ML-CP-6020D-BP
2 Laser power 3KW
3 Chuck clamping range Φ20mm~Φ220mm, □20~□150
4 Maximum single pipe weight 170KG
5 Feeding length ≤6300mm(automatic feeding)
6 Blanking length ≤2500mm(length customizable)
7 Cutting thickness (related to laser power) Carbon steel≤18mm ;Stainless steel≤8mm;Aluminum≤6mm;Brass≤5mm;
8 Positioning accuracy ≤±0.03mm
9 Repeat accuracy ≤±0.02mm
10 X-axis maximum speed ≤100m/min
Y-axis maximum speed ≤100m/min
Z-axis maximum speed ≤65m/min
B-axis maximum speed ≤100RPM
11 Idle running acceleration 1.0G
12 Power demand AC220V±5%/50Hz
13 Power consumption 6KW-25KW
14 Dimension 11000*5200*2400(mm)
15 Weight About 7800KG
14 Graphic file format dxf



6012D Automatic Laser Pipe Cutting Machine For Iron Carbon Steel 0

6012D Automatic Laser Pipe Cutting Machine For Iron Carbon Steel 1

6012D Automatic Laser Pipe Cutting Machine For Iron Carbon Steel 2

6012D Automatic Laser Pipe Cutting Machine For Iron Carbon Steel 3

FAQ

1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.



2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay


3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.


4. Can I visit the factory?
Available to have a visit to our factory at any time.


5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.


6. Can I go to the factory to test the machine before shipment?
Of course you can.


7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.


8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.


9.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
