Automatic Feeding Tube Laser Cutting Machine For Metal Acrylic Engraving

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-CP-6020D-QX-IW
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 20-45 days
Payment Terms T/T, D/A, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rail HIWIN Rack YYC
Reducer Tamagawa, Japan Chuck B1/B2 Shaft Gear Drive
Round Tube 20 ≤ φ ≤ 160(mm) Square Tube 20 * 20 ≤ □≤ 140 (mm)
Chuck Clamping Range 20mm~220mm Maximum Single Pipe Weight 40KG
Positioning Accuracy ≤±0.03mm Repeat Accuracy ≤±0.02mm
High Light

B2 Shaft Tube Laser Cutting Machine

,

B1 Shaft Tube Laser Cutting Machine

,

0.03mm Accuracy Laser Tube Cutting Machine

Leave a Message
Product Description

Automatic Feed Fiber Laser Machine For Cutting Engraving Metal Acrylic

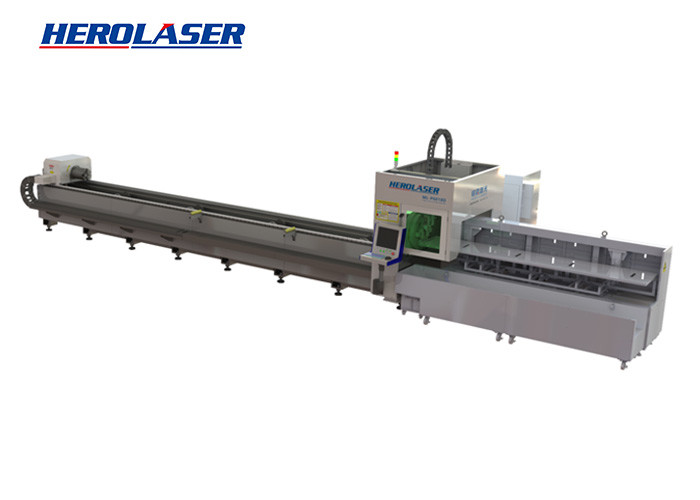

I Introduction of ML-CP-6020D-QX-IW pipe/tube laser cutting machine



ML-CP-6020D-QX-IW​ Series pipe/tube laser cutting machine is a simplified fiber laser pipe cutting machine developed by us Herolaser. It adopts long-term stable and reliable advanced medium and high-power fiber laser, and is equipped with high-precision gear rack, imported high-precision linear guide rail and other efficient transmission components. It is a precision CNC automatic laser pipe cutting machine integrated by Weihong professional pipe cutting control system. It is a high-tech product integrating the latest laser cutting, precision machinery, numerical control technology and other disciplines. It is mainly used for cutting carbon steel pipe, stainless steel pipe (square pipe, round pipe, rectangular pipe) and other metal pipes. It is a useful equipment in metal pipe processing industry. The machine tool adopts horizontal gantry structure, gear rack and screw combination transmission mode, transmission components such as reducer, guide rail and gear rack are all famous brands, with the characteristics of stable structure, good rigidity, light weight, high dynamic response, etc. It is a highly cost-effective professional laser pipe cutting machine with efficiency, precision and stability meticulously built by Herolaser.



II Characteristics of ML-CP-6020D-QX-IW

1 The shortest tailing is 170 mm;

2 Extremely low operation and maintenance costs;

3 The height of feeding fixed support can be adjusted manually, and the blanking can slide freely;

4 The front chuck is equipped with a side dust extraction device to reduce the dust and smoke during cutting;

5 High speed and high quality laser cutting can be carried out for round tube, square tube, rectangular tube and other profiles;

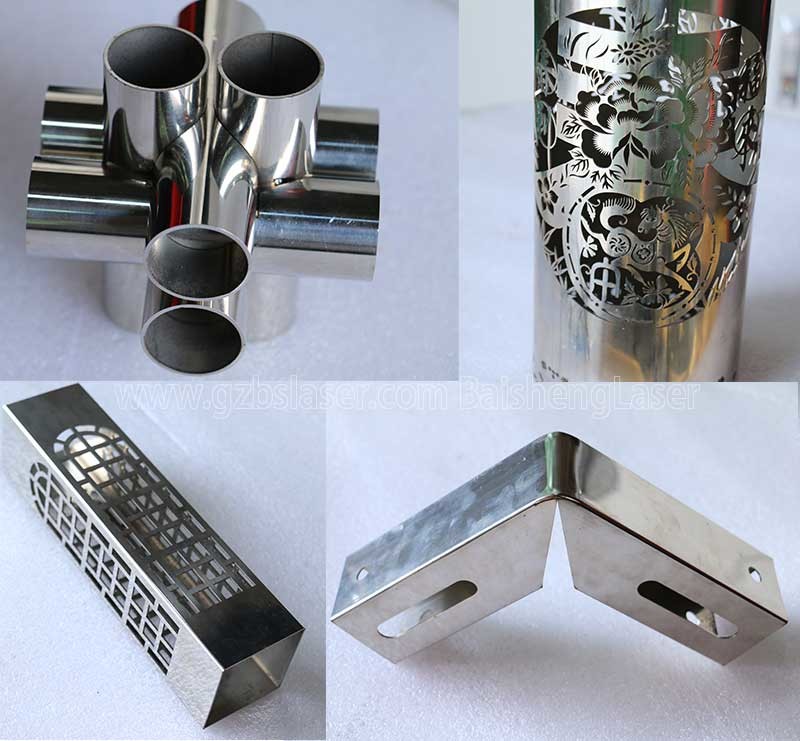

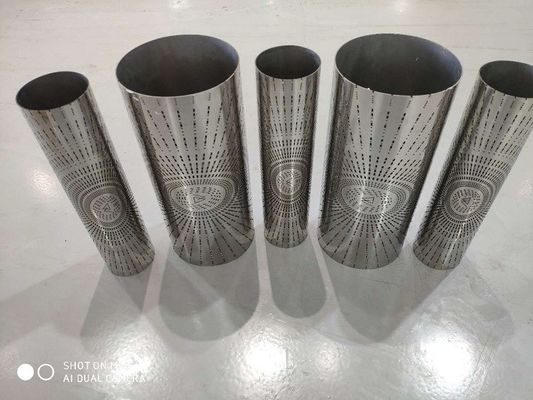

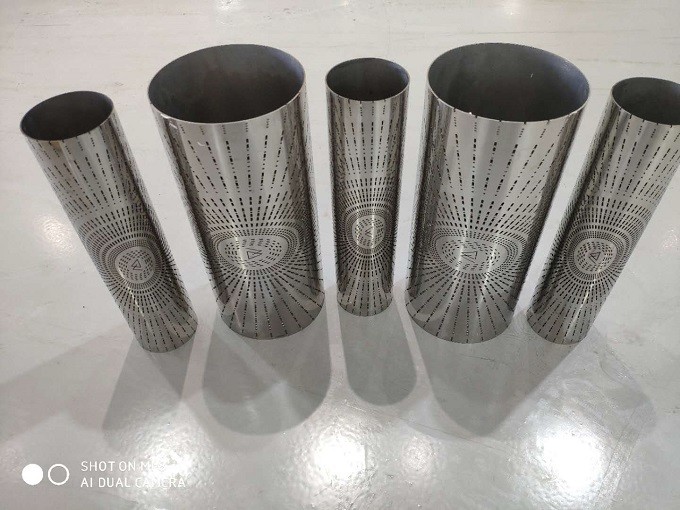

6 The pipe cutting section is smooth without burr, slag, blackening and yellowing. . . The cutting of various complex figures can be easily realized.

7 Optional semi-automatic pipe feeding system, improve your processing efficiency, and greatly reduce labor costs.
