Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal

  • Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal
  • Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal
  • Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal
  • Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal
  • Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal
Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number 6035D
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 25-45 days
Payment Terms L/C, T/T, D/A, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Linear Axis Speed 100 M/min Rotary Axis Speed 100 Rpm
Residual Length ≥ 110 Mm Max. Single Tube Weight 40 Kg/m
Feeding Lengthth ≤ 6300 Mm (automatic Feeding) Blanking Length ≤ 2000 Mm (with Support, The Length Can Be Extended)
Positioning Accuracy ≤±0.03mm Repeat Accuracy ≤±0.02mm
High Light

IPG Pipe Laser Cutting Machine

,

4000W Pipe Laser Cutting Machine

,

100rpm Laser Tube Cutting Machine
Leave a Message
Product Description

Pipe Tube Cutting Machine With Fiber Laser For Metal



  • Cutting Range of Herolaser ML-P6018D Laser Cutting System

Cutting materials: stainless steel, carbon steel, galvanized steel, copper pipe, aluminum pipe, etc.

Cutting pipe type: Square tube, round tube, rectangular tube, waist tube, elliptical tube, angle steel, c-shaped steel

Cutting pipe diameter:

Round tube: 20 ≤ φ ≤ 200 mm
Square tube: 20 * 20 ≤ □≤ 140 * 140 mm

  • Parameters of Herolaser ML-P6018D Laser Cutting System
Machine model: ML-P6018D
Laser: IPG, MAX, RECI
Power: 1000W ~ 4000W
Linear axis speed: 100 m/min
Rotary axis speed: 125 rpm
Pipe circumcircle diameter: Φ20mm~Φ220mm
Material and thickness: cutting capacity depends on laser power
Feeding length: ≤ 6300 mm (automatic feeding)
Blanking length: ≤ 3000 mm (with support, the length can be extended)
Residual length: ≥ 170 mm
Max. single tube weight: 25 kg/m

  • Advantages of Herolaser ML-P6018D laser cutting system



Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal 0

Bus system: Apply FRIENDESS EtherCAT bus pipe cutting system and Panasonic EthernetCAT bus servo to have fast response and high cutting efficiency.



Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal 1

Bed structure: horizontal gantry structure, processing technology: whole welding annealing, vibration aging, finishing.



Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal 2

Front and rear chucks: the front chucks are full stroke chucks with small moment of inertia and fast acceleration; The front chuck adopts the side suction mode, and the rear chuck adopts the tail suction mode, so that the dust and smoke in the cutting area are less, and the inner wall of the cutting workpiece is cleaner.



Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal 3

Feeding support: the support opening degree of fixed roller can be adjusted manually, which is suitable for cutting support requirements of different pipe types and diameters.



Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal 4

Blanking structure: the residual material and waste residue can be recycled automatically, and the pneumatic follow-up support of the whole blanking plate is combined with the slope sliding.

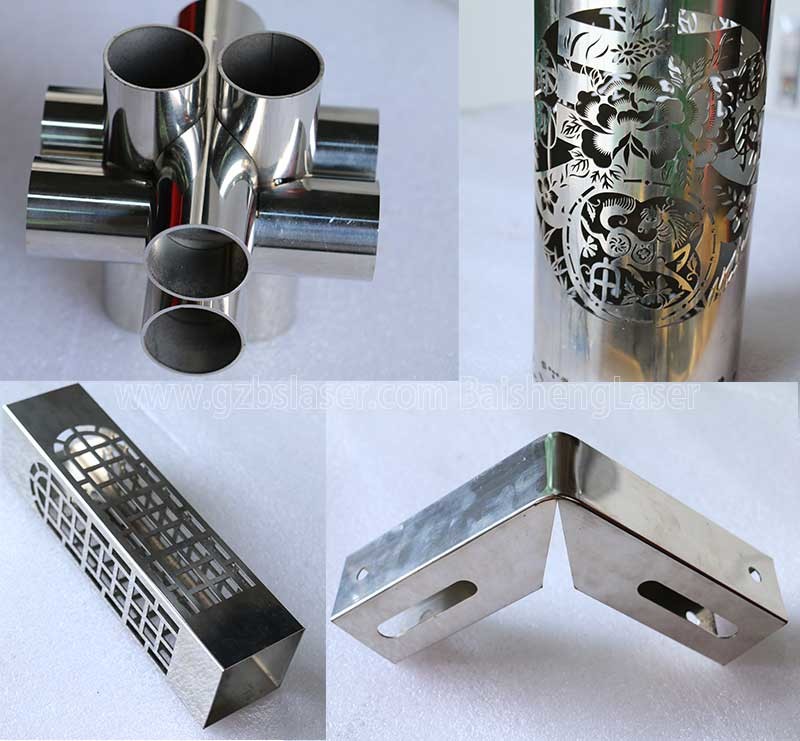

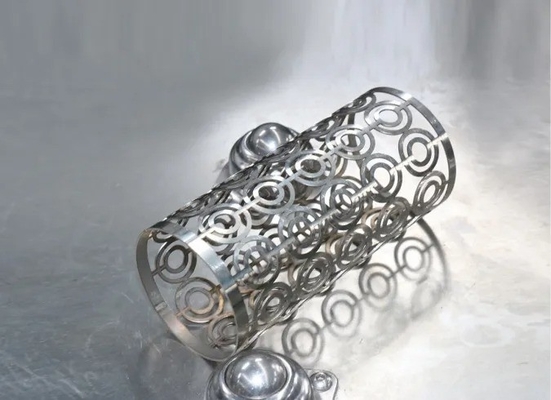

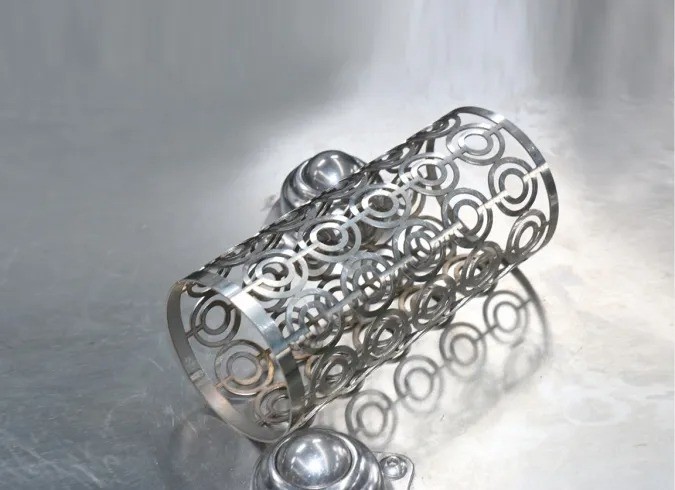

  • Various cutting samples of Herolaser ML-P6018D laser cutting system
1. The shortest tail material is 110mm;

2. Very low operation and maintenance costs;

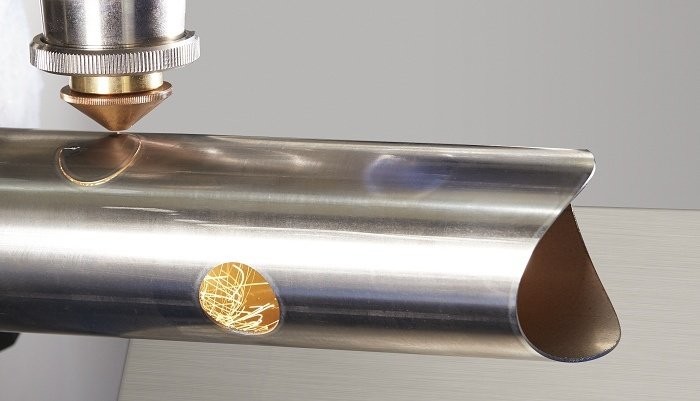

3. The laser cutting head will not contact the material surface and will not scratch the workpiece;

4. The front chuck maintains the full stroke without changing the claw;

5. High speed idle stroke, high acceleration, fast cutting response, not easy to burn corners;

6. The rear chuck vacuums at the rear and the front chuck vacuums at the side. The tube wall is cleaner
and there is less cutting dust and smoke;

7. The height of the feeding fixed support wheel can be adjusted manually, and the blanking is a
combination of follow-up support and slope sliding;

8. High-speed and high-quality laser cutting can be performed on various profiles such as round pipe, square pipe, rectangular pipe, waist round pipe, angle steel and C-section steel;

9. The pipe cutting section is smooth without burr, slag, blackening and yellowing, which can easily

Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal 5
Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal 6Herolaser Fiber Tube Pipe Laser Cutting Machine 4000W For Metal 7
