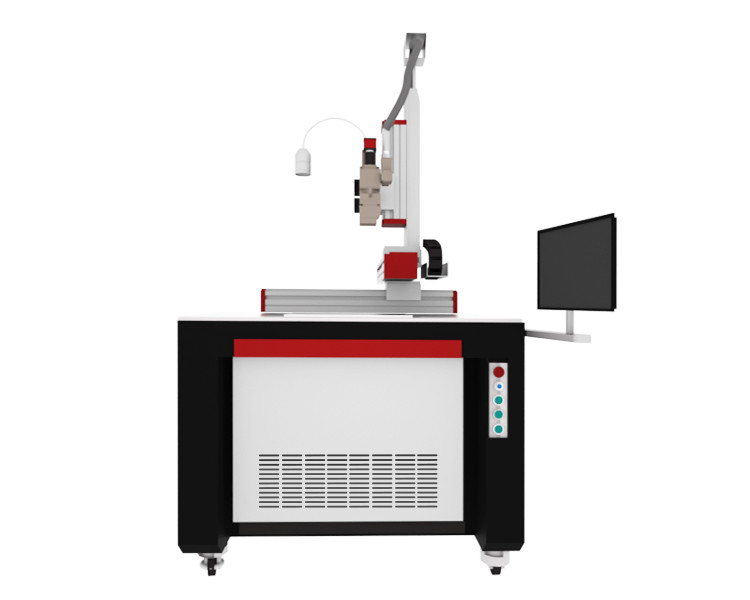

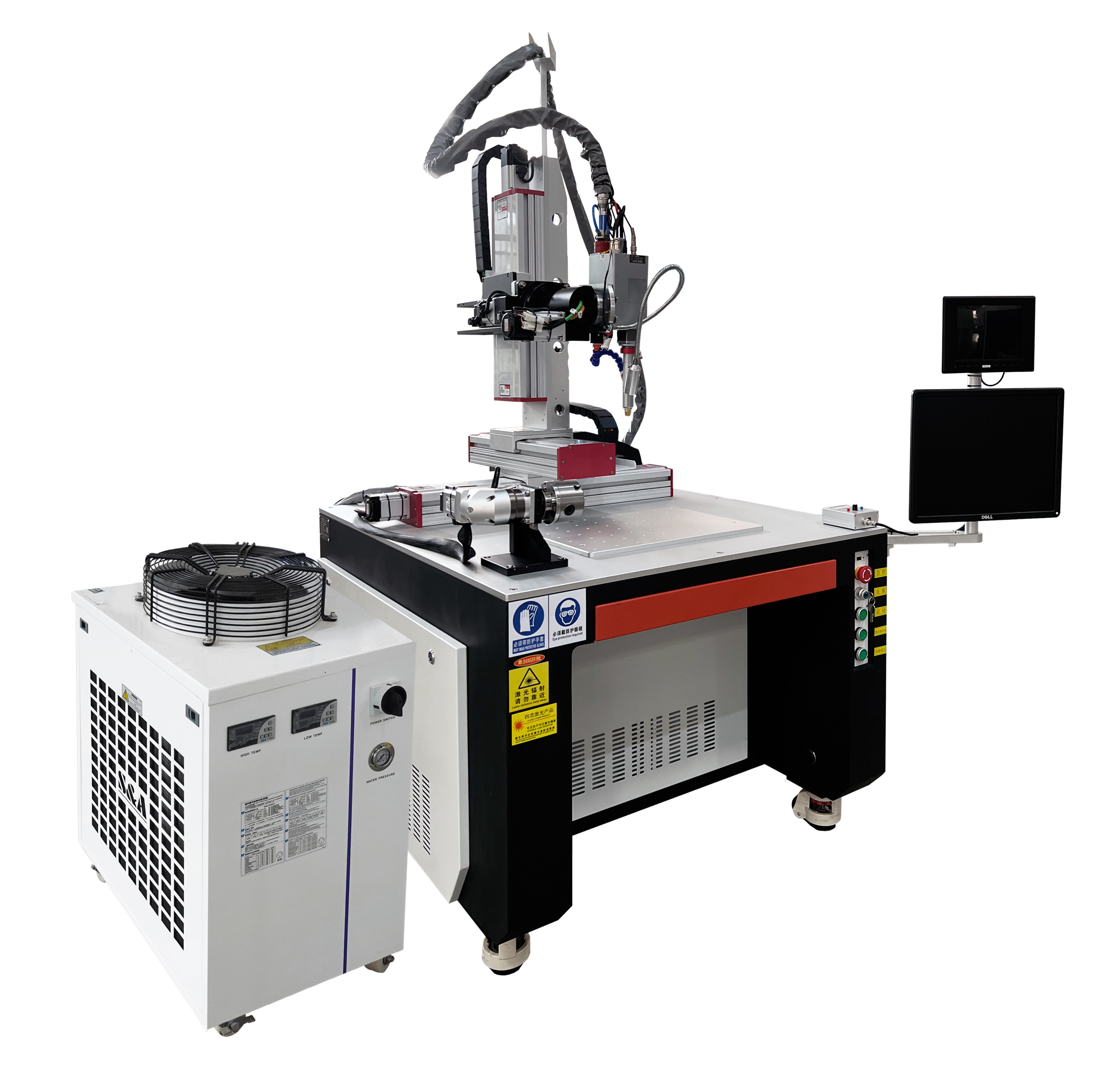

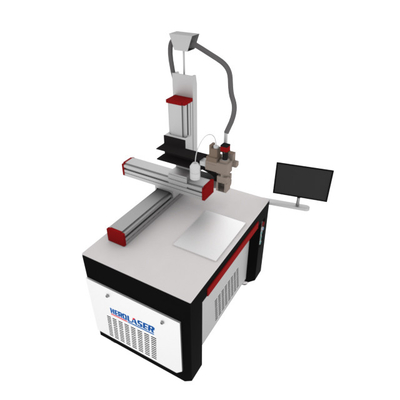

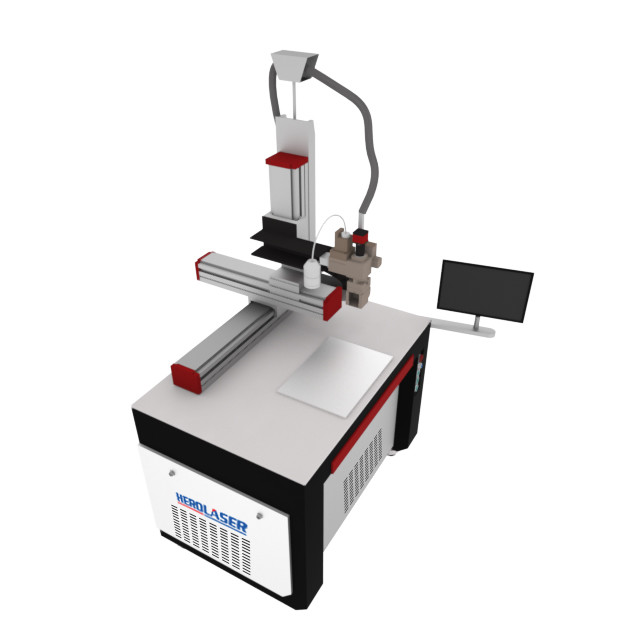

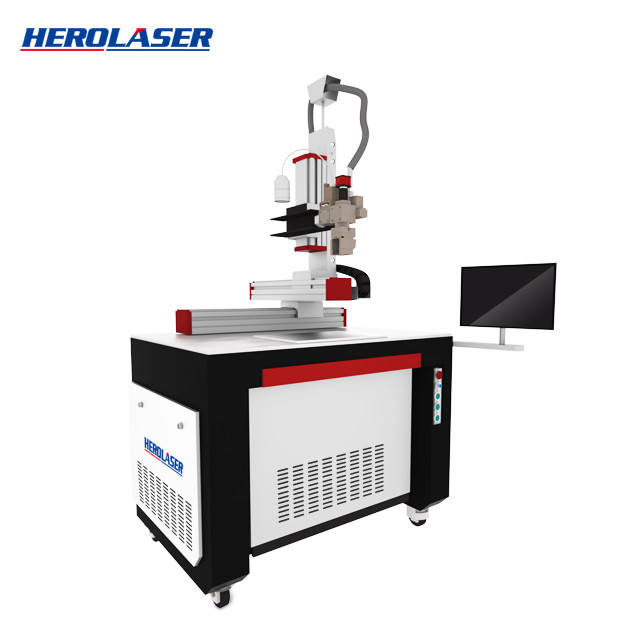

Double Station Constant Temperature Laser Soldering Machine Semiconductor

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-GL1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 60W-200W Laser Type Semiconductor
Focal Length 80/125/160mm (optional) Temperature Control Range 60°C-400°C
Temperature System Accuracy ± (0.3% Reading +2 ° C) (ring Temperature 23 ± 5 ° C) Positioning System Coaxial CCD Monitoring + Tin Point CCD Positioning
High Light

Semiconductor Laser Soldering Machine

,

CCD Monitoring Laser Soldering Machine

,

200W Laser Soldering Equipment

Leave a Message
Product Description

Parameters



Model ML-WS-XF-ZD2-HW80
Laser power 60W-200W
Laser type semiconductor
Focal length 80/125/160mm (optional)
Temperature control range 60°C-400°C
Temperature system accuracy ± (0.3% reading +2 ° C) (ring temperature 23 ± 5 ° C)
positioning system Coaxial CCD monitoring + tin point CCD positioning
Equipment size 1100mm*1450mm*1750mm
Welding range 250mm250mm (single station)
Feeding stroke 1000mm
Number of motion axes 6 axis( × 1Y1Z1/X2Y2Z2)
Repeat positioning accuracy ±0.02mm
Dust removal system Automatic soot cleaning system
Overall weight 350Kg
Overall power ≤2.5KW
