Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200

  • Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200
  • Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200
  • Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200
  • Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200
  • Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200
Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-QF-WS-SC-HW200
Minimum Order Quantity 1 set
Price US$ 6000~50000/set
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T, D/P, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Wavelength 1064 Nm-1074nm Focal Length 210mm
Handheld Laser Head Weight 1.5kg 3kg Pulse Width 20-50k Ns
Laser Frequency 20-50k HZ Laser Source Type IPG MAX
Size 1430x770x1328mm Weight 280kg
High Light

Laser Cleaning Machine 1064nm

,

50kHZ Laser Cleaning Machine

,

IPG MAX Laser Cleaning Equipment
Leave a Message
Product Description

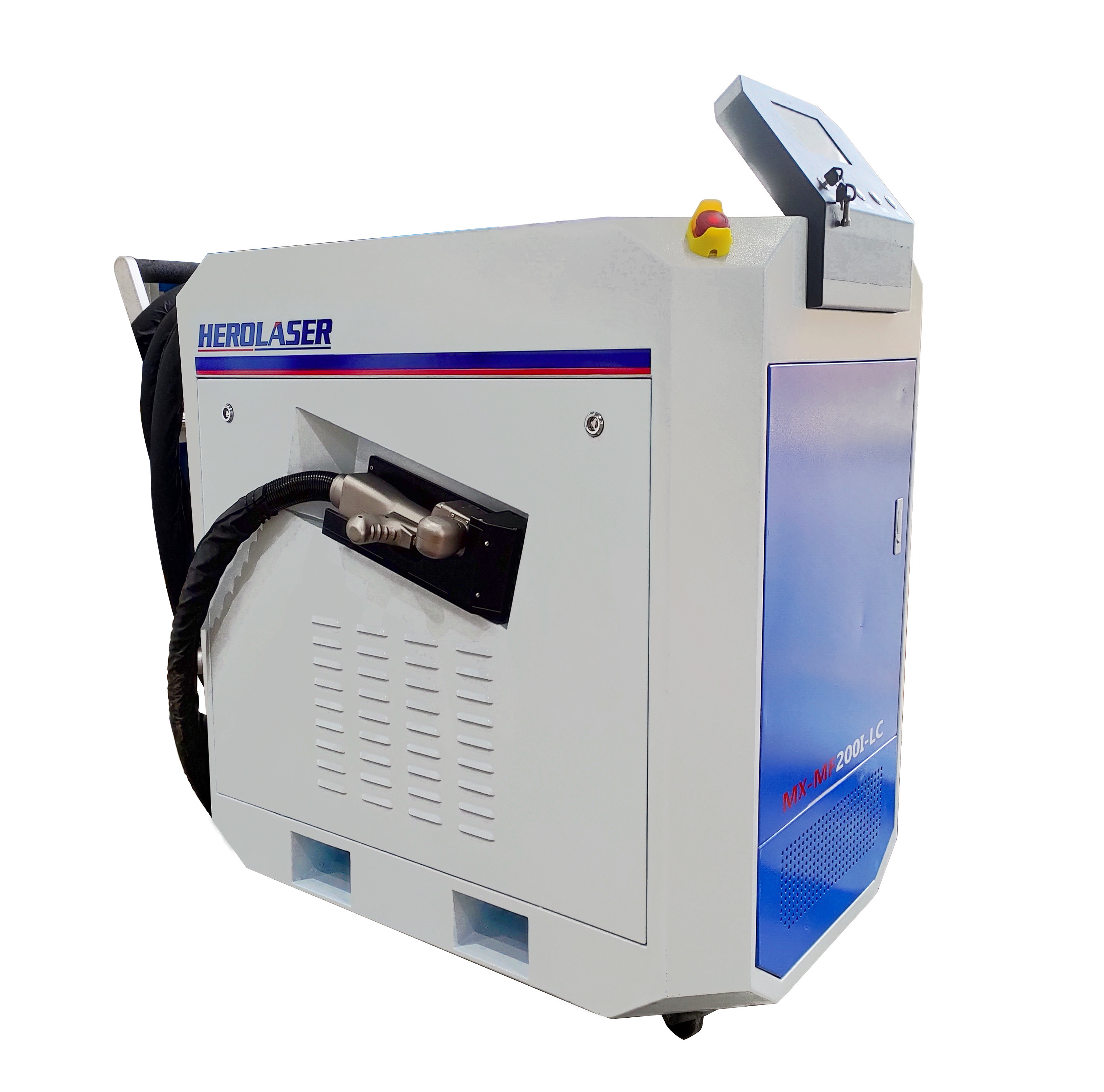

Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200



Model ML-MF100I-LC ML-MF200I-LC ML-MF500I-LC ML-MF1000I-LC ML-QF-WS-JX-HW2000
Laser Power 100W 200W 500W 1000W 2000W
Cooling Way Air Cooling Water cooling
Laser Wavelength 1064 nm
Power Supply AC 220-250V / 50 Hz AC 380V / 50 Hz
Maximum KVA 500W 2200W 5100W 7500W 14000W
Fiber Length 3m 12-15m 12-15m 12-15m 12-15m
Dimension 460x285x450mm 1400X860X1600 mm 2400X860X1600mm+555X525X1080mm (external chiller size)
Focal Length 210mm
Focal Depth 2mm 5mm 8mm
Gross Weight 85kg 250kg 310kg 360kg Total 480kg
Handheld Laser Head Weight 1.5kg-3 kg
Working Temperature The service life of the laser is long at constant temperature of 5-40 C (normally at constant temperature of 25 C)
Pulse Width 20-50k ns
Scan Width 10mm-80mm (customizable additional price)
Laser Frequency 20-50k HZ
Laser Source Type Fiber laser source
Options Portable/
Handheld		 Handheld/
Automation/
Robotic system		 Handheld/
Automation/
Robotic system		 Handheld/
Automation/
Robotic system		 Handheld/
Automation/
Robotic system



Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 0Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 1

Products Description

Product Introduction

1. Non-contact cleaning, no damage to work piece

2. Precision positioning, selective cleaning

3. Safe & environment-friendly. Without using chemical detergent or other consumables

4. Easy to operate, with portable mode and could be equipped with robot for automatic cleaning

5. High efficiency, time-saving

6. Stable laser cleaning system, practically maintenance free
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 2

About Laser Cleaner:

1. Laser cleaning machine is the latest high-tech product.



2. Easy to install, operate, easy to achieving automation.



3. Plug in power, turn on and start cleaning - without chemicals, media, dust, water.



4. Cleaning with no detergent, no media, no dust, no water.



5. Auto focus, can clean curved surface, gentle cleaningsurface.



6. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface



Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 3

About Laser Cleaner:

1. Laser cleaning machine is the latest high-tech product.



2. Easy to install, operate, easy to achieving automation.



3. Plug in power, turn on and start cleaning - without chemicals, media, dust, water.



4. Cleaning with no detergent, no media, no dust, no water.



5. Auto focus, can clean curved surface, gentle cleaningsurface.



6. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface

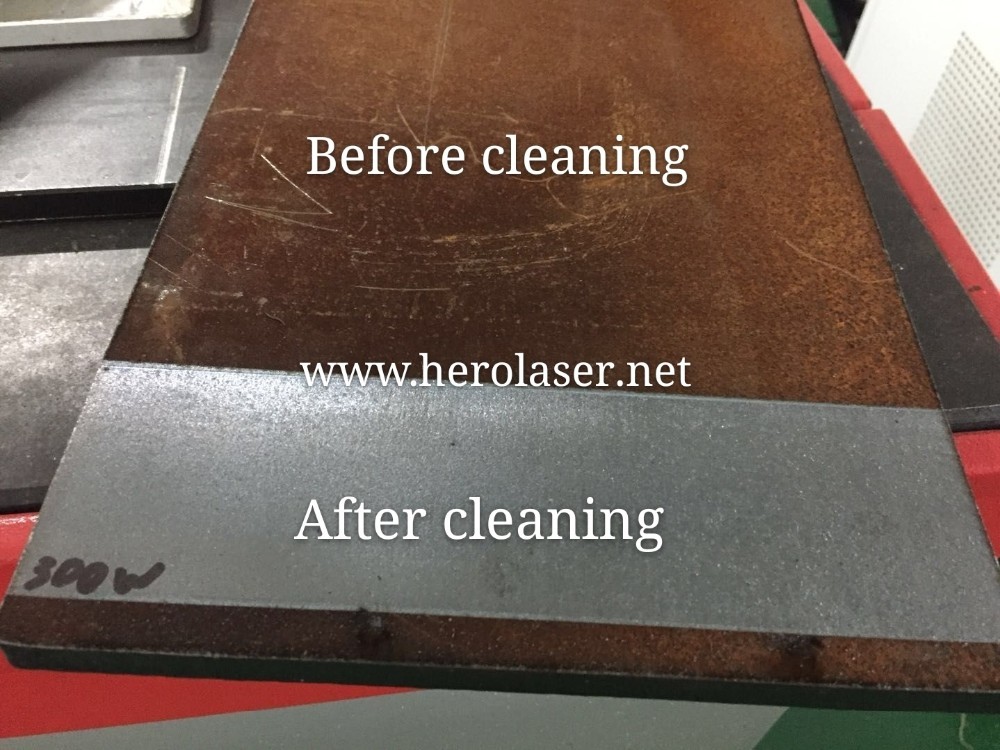

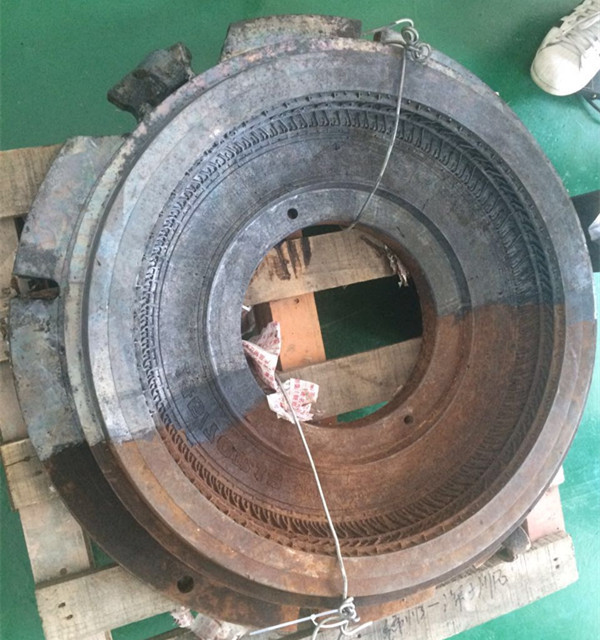

Sample pictures:
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 4


Comparison with traditional clean methods


Comparision
Laser Cleaning
Chemical Cleaning
Mechanical Grinding
Dry ice cleaning
Washiing Method
non-contact cleaning
contact cleaning
Abrasive contact cleaning
non-contact cleaning
Harm to base material
None
Yes
Yes
None
Washing Efficiency
High
Low
Low
Mid
Consumable
Power
Chemical Detergent
Abrasive paper, grinder, abrasive stone
Dry Ice
Washing result
Very good, very clear
Medium, uneven
Medium, uneven
Good, uneven
Precision Washing
Accuracy controllable. Hig hprecision
Uncontrollable, low precision.
Uncontrollable, medium precision.
Uncontrollable, poor precision.
Safety/Environment
No pollution
Chemical pollution
Dust pollution
No pollution
Operation
Easy to operate, portable or automation optional.
Complicated process, higher technical requirement of the operator. Pollution prevention measures required.
Need more time & manpower. Pollution prevention measures required
Easy to operate, portable or automatic.
Investment
High investment on machine. But no consumable, low maintenance cost
Low investment on machine. But expensive consumables
Medium investment on machine. High man-power cost.
Medium investment on machine. High consumable cost.
Applicable Industry
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 5
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 6
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 7
Ship Automotive Petrochemical
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 8
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 9
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 10

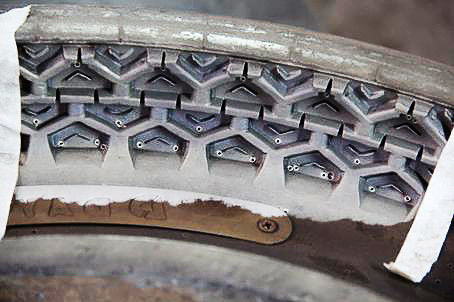

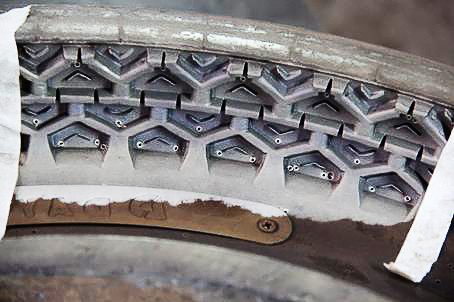

Rubber Tire Mould Food equipment
Certification
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 11
Company Information
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 12

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Packaging & Shipment
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 13
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 14
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 15
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 16
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 17
Paint Oil Rust Remove Laser Cleaning Machine Ml-Qf-Ws-Sc-Hw200 18
Our Services

---Pre-Sales Service


① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service

FAQ



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

7. Can I go to the factory to test the machine before shipment?
Of course you can.

8. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

9. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

10.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

11. What are the advantages of laser cleaning machine?
1. Laser cleaning has the characteristics of no grinding and non-contact,
2. Cleanable organic pollutants,
3. Cleanable inorganic substances: metal corrosion, metal particles, dust, etc.
4. Application effects include: rust removal, paint removal, degreasing, cultural relics restoration, glue removal, coating
removal and coating removal.

12. Is it easy to operate?
The operation is simple. When the power is turned on and the equipment is turned on, the cleaning can be carried out without chemical reagent, medium, dust and water.
