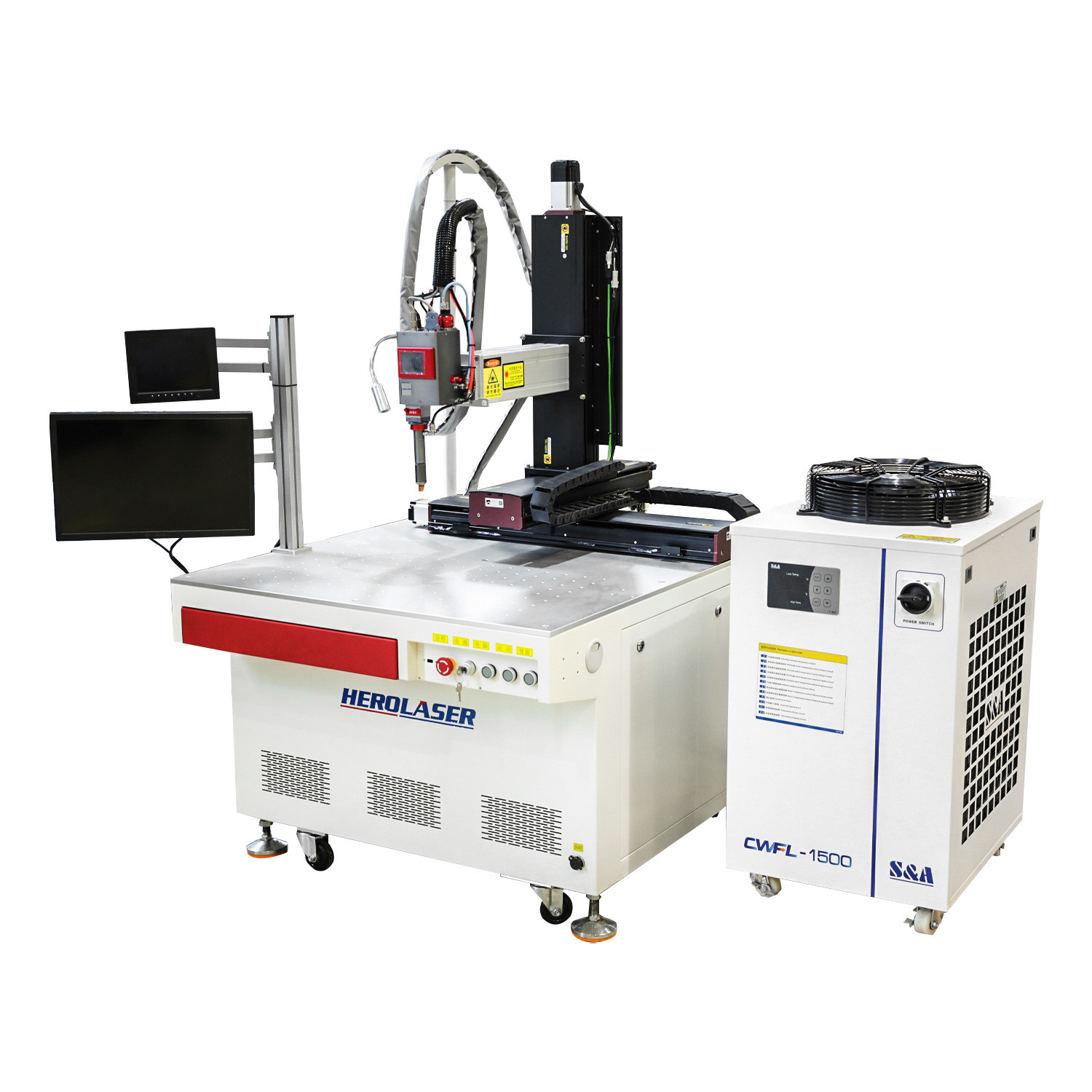

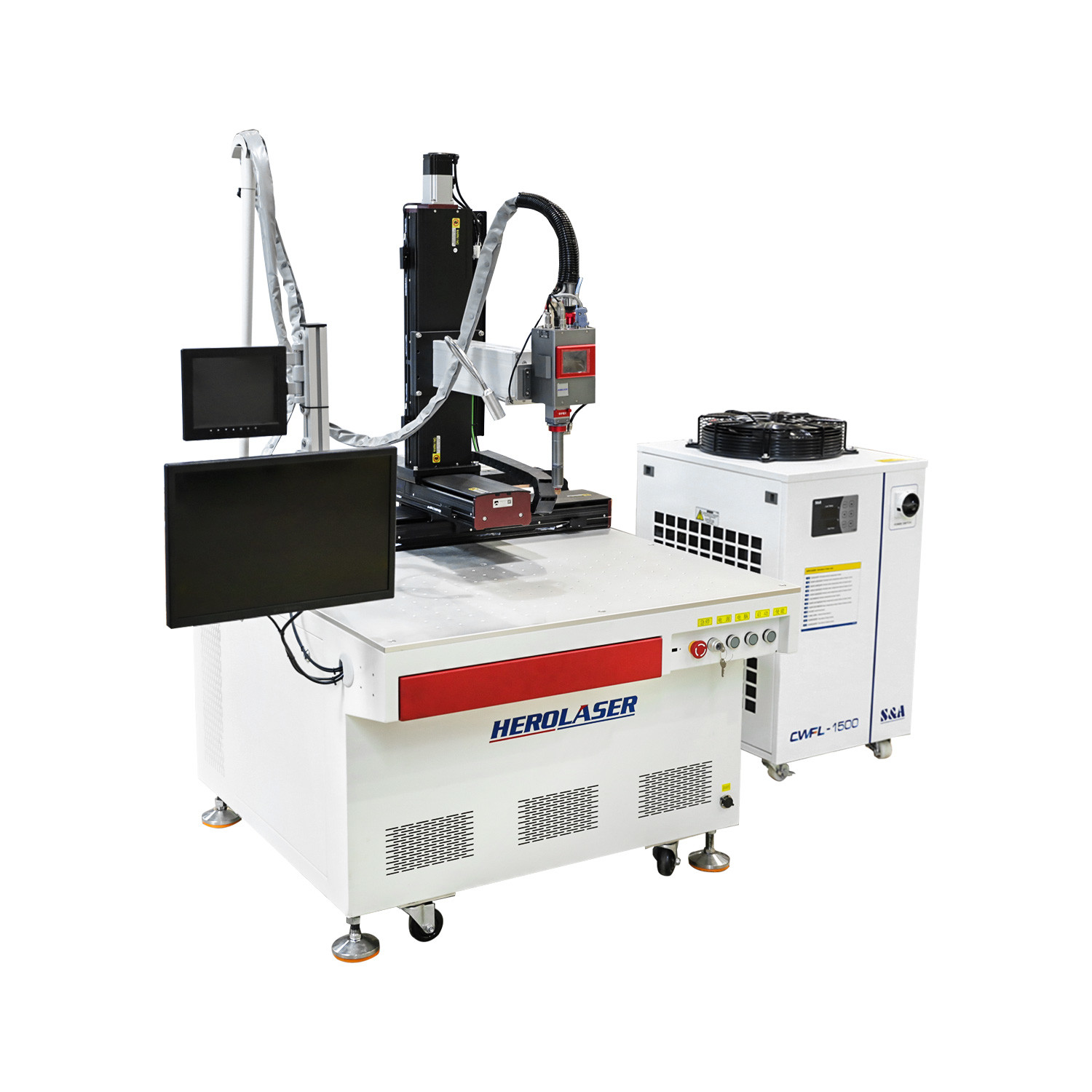

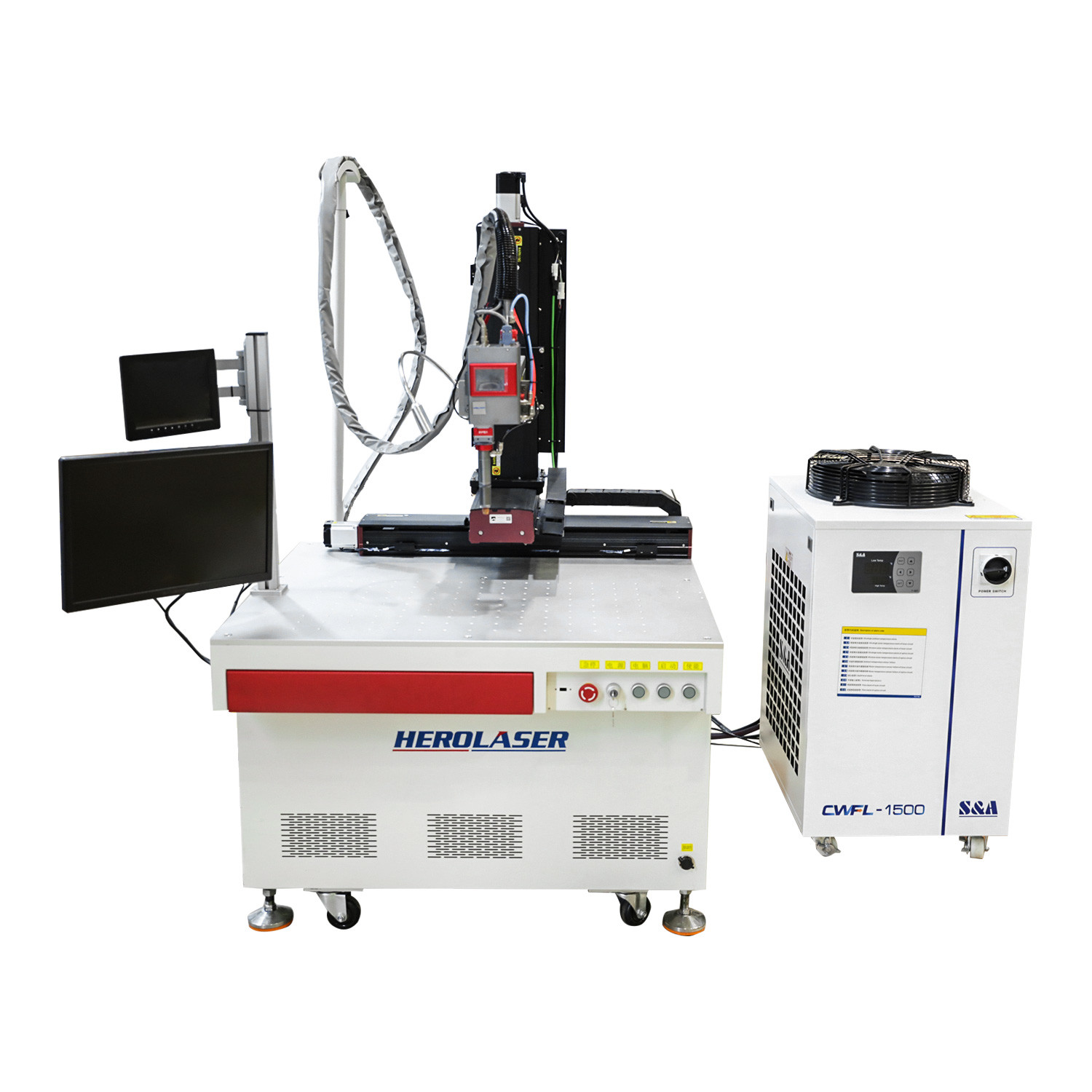

Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number ML-WF-ZD-4D-HW1500
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions 1500×1400×1900mm Machine Weight 280kg
Laser Power 200W To 3000W Average Load Power 7.5KW
Welding Depth 3mm Focal Spot Diameter 0.15-0.45 Mm
High Light

200W Automatic Laser Welder

,

3mm Automatic Laser Welder

,

Rotary Jig Automatic Laser Welding Machine

Leave a Message
Product Description

Four-axis Auto Soldering Welding Machine Automatic Laser Welders



Parameter
Main technical parameters of the equipment
Product Specifications
S/N
Main component name
Parameter
Remark
1
X axis effective stroke
500mm

2
Y axis effective stroke
300mm

3
Z axis effective stroke
300mm

4
Dimensions
1500×1400×1900mm

5
Machine weight
280kg

6
Module operating speed
Y axis:10m/min
X axis:10m/min
Z axis:5m/min

7
repeated positioning accuracy
±0.02mm

8
Rotating table
Circle runout accuracy ≤0.05mm

9
electricity demand
220V/380V

10
Average load power
7.5KW

Equipment configuration list
Configuration Parameter
S/N
Name
Specifications & Models
QTY
Brand
Remark
1
Fixture mounting plate
350mm×450mm
1
Hero Laser Custom

2
Laser
According to sample welding requirements
1
MAX or IPG

3
Motor
servo motor
3
Huichuan

4
Computer
PC/Industrial Computer
1
Advantech

5
Chiller
According to laser power
1
S & A

6
Welding head
According to sample welding requirements
1
Hero Laser

7
CCD Visual observation system
camera
light source
1
Microsan
Basler/LeTV Light Source

8
Z axis module
300mm stroke
1
Hero Laser Custom
X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9
X axis module
500mm stroke
1
Hero Laser Custom
10
Y axis module
300mm stroke
1
Hero Laser Custom
11
Rotating table
Three-jaw rotary chuck
1
Hero Laser Custom

12
Lower cabinet
Sheet metal welding, paint baking
1
Hero Laser Custom




Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 0

Products Description



Four-dimensional automatic welding machine

Herolaser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality.

It can also be equipped with a four-dimensional ball screw table, using an imported servo control system, including a rotating table, which can weld cylindrical objects and other objects of various shapes, with a wide range of applications, high precision and fast speed.

The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.
Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 1




Laser welding machines use high-energy pulsed lasers to weld objects

Herolaser automatic laser welding machine can realize the welding of metal work pieces in straight lines, circles and other arbitrary trajectories, such as phone housing, mobile phone batteries, sensors, medical equipment and other industries.

Laser welding machines use high-energy pulsed lasers to weld objects, laser pulses’ high energy and high density can make the welding smooth, the weld width is small and the heat-affected zone is small, and it can complete the precision welding that cannot be achieved by the traditional technology.
Laser automatic welding machine series welding machine is a laser welding machine developed and produced with German welding machine technology.

The welding efficiency is high, the effect is good, and the operation is simple and convenient. It is suitable for the welding of flat straight lines, arcs and arbitrary trajectories of various materials.

Applicable to all kinds of metal materials: aluminum, stainless steel, gold, silver, alloy, steel, diamond equivalent material welding or dissimilar material welding; applicable range: mobile phone batteries, jewelry, electroniccomponents, sensors, clocks, precision machinery, communications , handicrafts and other industries.

Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 2

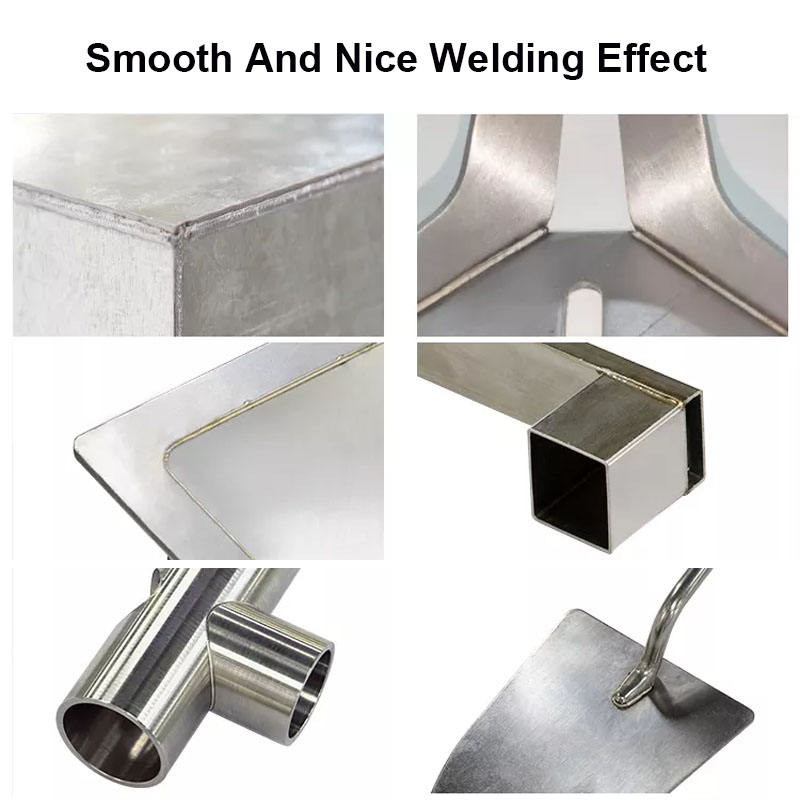

Sample Show
Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 3
Applicable Industry
Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 4
mobile phone batteries

Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 5

  Jewelry


Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 6

  electronic components


Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 7

  precision machinery


Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 8

  communications


Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 9

  handicrafts


Installation Instructions
Platform 4 Axis Automatic Laser Welder 4D CNC System With Rotary Jig 10
