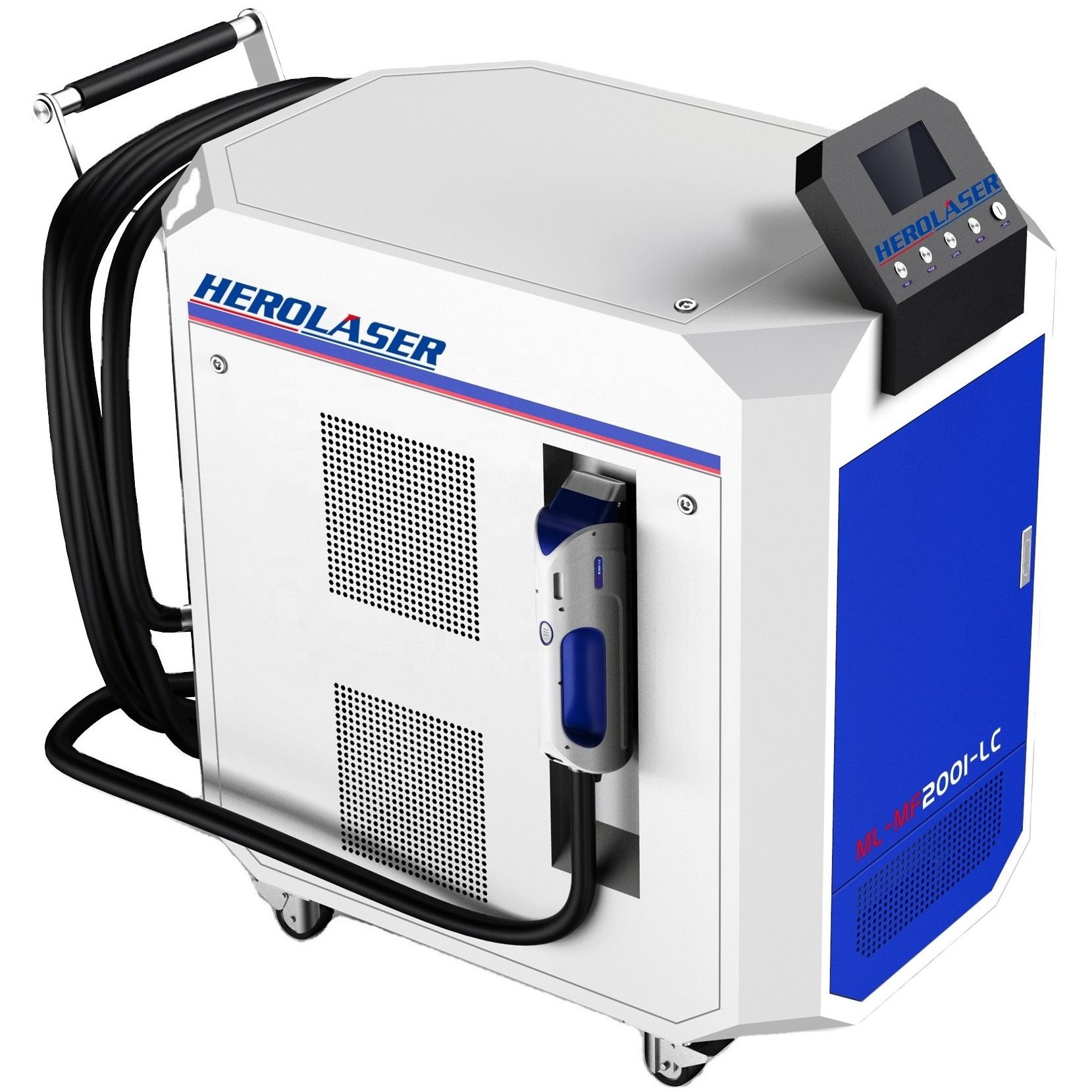

Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number ML-MF200I-LC
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Wavelength 1064 Nm Focal Length 210mm
Handheld Laser Head Weight 1.5kg 3kg Pulse Width 20-50k Ns
Laser Frequency 20-50k HZ Laser Source Type Fiber Laser Source
High Light

50k ns Fiber Laser Cleaning Machine

,

Wavelength 1064nm Fiber Laser Cleaning Machine

,

Laser Cleaning Machine 1064 nm

Leave a Message
Product Description



Parameter
Model
ML-MF100I-LC
ML-MF200I-LC
ML-MF500I-LC
ML-MF1000I-LC
ML-QF-WS-JX-HW2000
Laser Power
100W
200W
500W
1000W
2000W
Cooling Way
Air Cooling
Water cooling
Laser Wavelength
1064 nm
Power Supply
AC 220-250V / 50 Hz
AC 380V / 50 Hz
Maximum KVA
500W
2200W
5100W
7500W
14000W
Fiber Length
3m
12-15m
12-15m
12-15m
12-15m
Dimension
460x285x450mm
1400X860X1600 mm
2400X860X1600mm+
555X525X1080mm (external chiller size)
Focal length
210mm
Focal depth
2mm
5mm
8mm
Gross Weight
85kg
250kg
310kg
360kg
Total 480kg
Handheld Laser Head Weight
1.5kg3 kg
Working Temperature
The service life of the laser is long at constant temperature of 5-40 ° C (normally at constant temperature of 25 ° C)
Pulse width
20-50k ns
Scan Width
10mm-80mm (customizable additional price)
Laser frequency
20-50k HZ
Laser source type
Fiber laser source
Options
Portable/
Handheld
Handheld/
Automation/
Robotic system
Handheld/
Automation/
Robotic system
Handheld/
Automation/
Robotic system
Handheld/
Automation/
Robotic system
Products Description

Product Introduction



Three advantages of using a laser cleaner



1. The non-contact cleaning method will not damage the part matri



2. The cleaning position can be precisely positioned



3 . No chemical lotion . no consumables needed

Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 0
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 1
Certification
Derusting of metal surfaces ;

Metal and other surface paint stripping treatment

Metal and other surface oil , stains , dirt cleaning

Metal and other surface coating removal ;

Metal welding surface / spray surface pretreatment

Remove dust and attachments on the surface of stone statues ;

Rubber mold residue cleaning
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 2

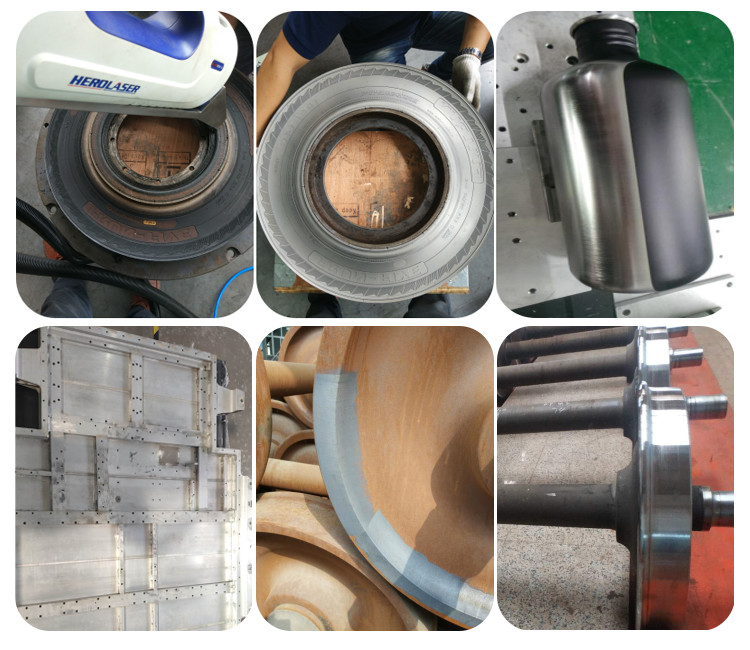

Applications:

Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 3Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 4

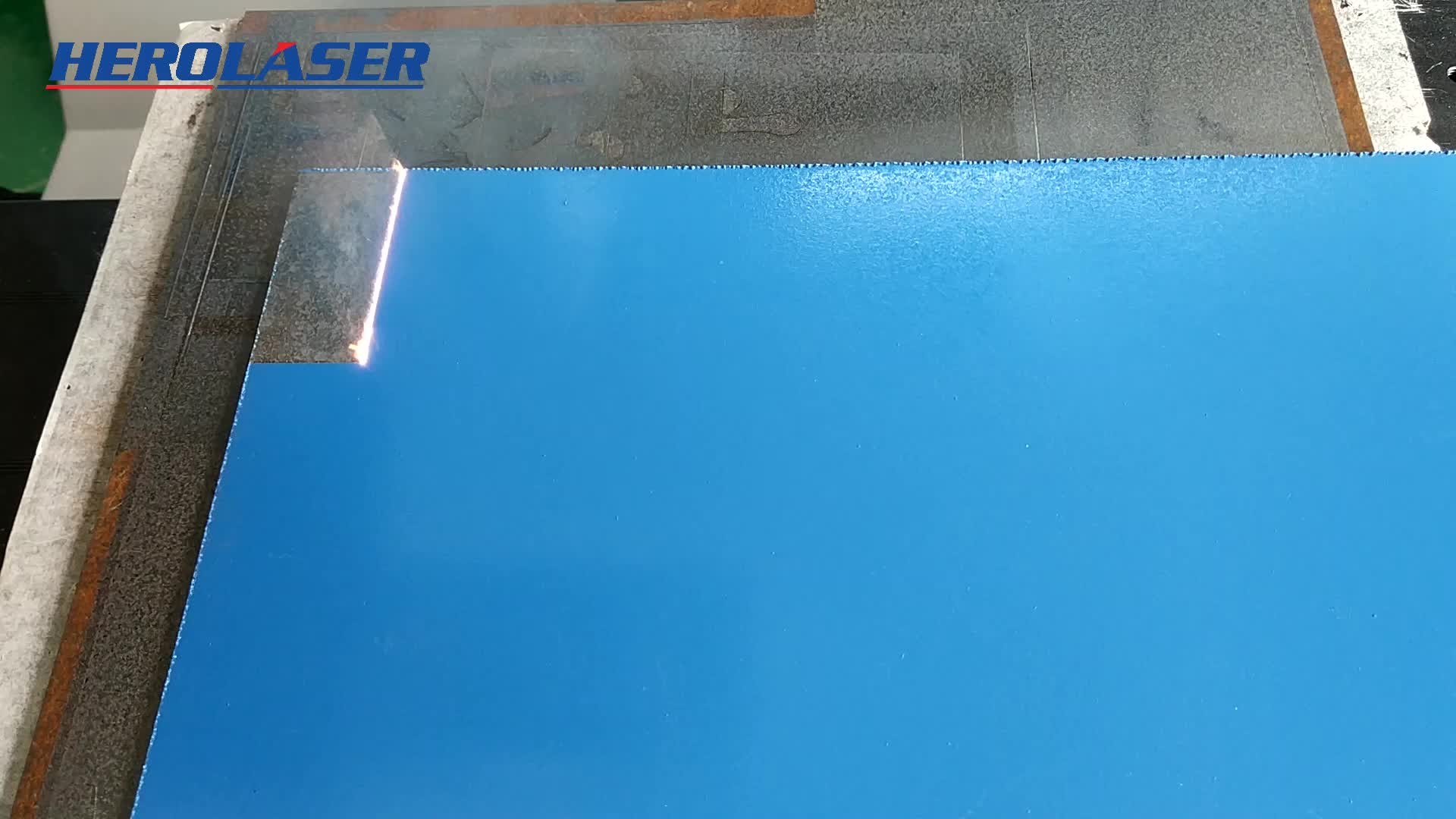

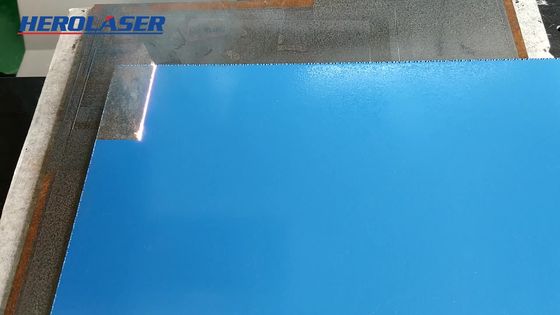

Sample pictures:
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 5


Comparison with traditional clean methods


Comparision
Laser Cleaning
Chemical Cleaning
Mechanical Grinding
Dry ice cleaning
Washiing Method
non-contact cleaning
contact cleaning
Abrasive contact cleaning
non-contact cleaning
Harm to base material
None
Yes
Yes
None
Washing Efficiency
High
Low
Low
Mid
Consumable
Power
Chemical Detergent
Abrasive paper, grinder, abrasive stone
Dry Ice
Washing result
Very good, very clear
Medium, uneven
Medium, uneven
Good, uneven
Precision Washing
Accuracy controllable. Hig hprecision
Uncontrollable, low precision.
Uncontrollable, medium precision.
Uncontrollable, poor precision.
Safety/Environment
No pollution
Chemical pollution
Dust pollution
No pollution
Operation
Easy to operate, portable or automation optional.
Complicated process, higher technical requirement of the operator. Pollution prevention measures required.
Need more time & manpower. Pollution prevention measures required
Easy to operate, portable or automatic.
Investment
High investment on machine. But no consumable, low maintenance cost
Low investment on machine. But expensive consumables
Medium investment on machine. High man-power cost.
Medium investment on machine. High consumable cost.
Applicable Industry
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 6
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 7
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 8
Ship Automotive Petrochemical
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 9
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 10
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 11
Rubber Tire Mould Food equipment
Company Information
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 12

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Characteristics
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 13
Packaging & Shipment
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 14
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 15
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 16
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 17
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 18
Paint Removal Pulse Fiber Laser Cleaning Machine Back Pack JPT 19
Our Services

---Pre-Sales Service


① Free pre-sales 7*24 hours rapid response services / cousulting

② Free sample testing / inspection

③ Free design of fixtures as customers / distributor required

④ Strict quality control for our products

⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged)

② Full technical support / by e-mail, call and video

③ Spare parts supply.

④ Free online training installation and operation

⑤ 12 hours quick feedback & after-sales services

⑥ ODM/OEM service

FAQ



Q1:What products does Herolaser produce?

A1:laser cleaner paint removal Pulse fiber laser cleaning machine back pack Jpt laser cleaning machine,Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine, Laser Marking Machine And New Energy



Q1:Can I visit the factory?

A1:Welcome to visit us any time



Q1:Can I make my logo on device

A1:Yes, We also supply ODM/OEM service
