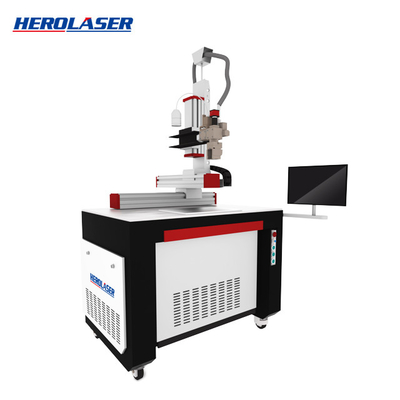

Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens

Place of Origin China
Brand Name Herolaser
Certification ISO9001
Model Number ML-PL-2000
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions 1500×1400×1900mm Machine Weight 280kg
Laser Power 200W To 3000W Average Load Power 7.5KW
Welding Depth 3mm Focal Spot Diameter 0.15-0.45 Mm
High Light

OEM Four Axis Fiber Laser Welder

,

Clothes Hangers Fiber Laser Welding Machine

,

Elevators Fiber Laser Welding Machine

Leave a Message
Product Description

Four-axis Automatic Welding Machine Automatic Laser Welders



Parameter
Main technical parameters of the equipment
Product Specifications
S/N
Main component name
Parameter
Remark
1
X axis effective stroke
500mm

2
Y axis effective stroke
300mm

3
Z axis effective stroke
300mm

4
Dimensions
1500×1400×1900mm

5
Machine weight
280kg

6
Module operating speed
Y axis:10m/min
X axis:10m/min
Z axis:5m/min

7
repeated positioning accuracy
±0.02mm

8
Rotating table
Circle runout accuracy ≤0.05mm

9
electricity demand
220V/380V

10
Average load power
7.5KW

Equipment configuration list
Configuration Parameter
S/N
Name
Specifications & Models
QTY
Brand
Remark
1
Fixture mounting plate
350mm×450mm
1
Hero Laser Custom

2
Laser
According to sample welding requirements
1
MAX or IPG

3
Motor
servo motor
3
Huichuan

4
Computer
PC/Industrial Computer
1
Advantech

5
Chiller
According to laser power
1
S & A

6
Welding head
According to sample welding requirements
1
Hero Laser

7
CCD Visual observation system
camera
light source
1
Microsan
Basler/LeTV Light Source

8
Z axis module
300mm stroke
1
Hero Laser Custom
X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9
X axis module
500mm stroke
1
Hero Laser Custom
10
Y axis module
300mm stroke
1
Hero Laser Custom
11
Rotating table
Three-jaw rotary chuck
1
Hero Laser Custom

12
Lower cabinet
Sheet metal welding, paint baking
1
Hero Laser Custom




Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 0

Products Description

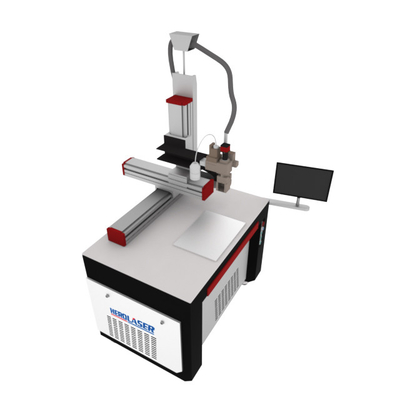

Four-dimensional automatic welding machine

Herolaser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality.

It can also be equipped with a four-dimensional ball screw table, using an imported servo control system, including a rotating table, which can weld cylindrical objects and other objects of various shapes, with a wide range of applications, high precision and fast speed.

The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 1




Laser welding machines use high-energy pulsed lasers to weld objects


Herolaser automatic laser welding machine can realize the welding of metal work pieces in straight lines, circles and other arbitrary trajectories, such as phone housing, mobile phone batteries, sensors, medical equipment and other industries.

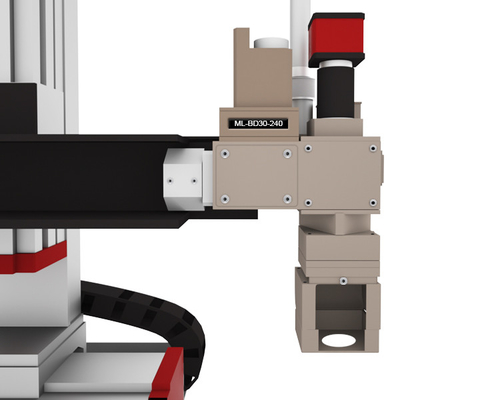

Platform fiber laser welder will impress with its super welding speed, excellent results and simple efficiency. A wobble welding head allows you to make firm joints in different geometries. Multiple nozzle options empower you to challenge a wide range of welding tasks including spot welding, butt welding, overlap welding, vertical welding, flat fillet welding, internal and external fillet welding. Super long fiber facilitates welding large and heavy objects effortlessly.



The welding efficiency is high, the effect is good, and the operation is simple and convenient. It is suitable for the welding of flat straight lines, arcs and arbitrary trajectories of various materials.



Applicable to all kinds of metal materials: aluminum, stainless steel, gold, silver, alloy, steel, diamond equivalent material welding or dissimilar material welding; applicable range: mobile phone batteries, jewelry, electroniccomponents, sensors, clocks, precision machinery, communications , handicrafts and other industries.

Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 2

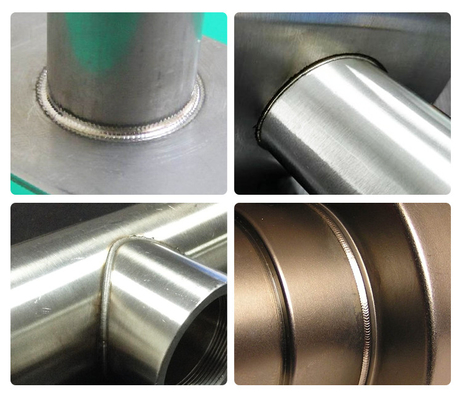

Sample Show
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 3

Advantages Of Laser Welding Compared To Traditional Welding



1. Pure fiber laser source, top laser source brand, fast speed, strong beam.


2. High efficiency ,energy saving ,environment friendly and more safety operation.


3. The welding effect is good, the continuous emission laser mode is adopted, the welding point is uniform, the surface of the welding seam is very smooth and clean, and there is no need for secondary processing after welding.


4. Easy to operate and no need high experienced operators like arc welding, save you expensive technical labor cost.


5. No consumables, maintenance-free.


6. Welding speed: 3-5 m/min, which is 2-10 times the welding speed of manual arc welding.


6. A variety of hand-held welding heads are available to meet various requirements such as metal parts, internal welding, right-angle welding, narrow-side welding, large spot welding, and so on.


7. Minimal heat input, small heat-affected zone, reduce welding distortion caused by heat conduction.


8. Workers are highly efficient and will not feel tired after long welding. No UV light ,no ozone when operating ,keep operators health.


9. Using a handheld laser welding gun, the welder can work comfortably.



Applicable Industry



Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 4 Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 5  Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 6

Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 7

  precision machinery


Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 8

  communications


Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 9

  handicrafts


Installation Instructions
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 10

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Certification
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 11
Packaging & Shipment
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 12
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 13
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 14
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 15
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 16
Platform Fiber Laser Welding Machine for Cabinet Stairs Elevators Clothes Hangers Ovens 17
Our Services

---Pre-Sales Services


① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time

---After-Sales Services
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

10. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
