Portable Laser Cleaner Paint Removal Fiber Laser Cleaning Machine

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, FDA
Model Number ML-CM-2500
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 30-45 days
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 180 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cabinet Dimensions 390*180*280mm Laser Source Type Fiber Laser Source
Laser Type Pulse Laser Wavelength 1064 Nm
Cooling Way Air Cooling Total Power <400w
Supply Voltage AC 220V Working Temperature 5~40℃
Fiber Length 3M Handheld Laser Head Weight 1.0kg
Total Weight 15kg
High Light

Air Cooling Portable Laser Cleaner

,

ISO9001 Approved Portable Laser Cleaner

,

1064 nm Paint Removal Fiber Laser Cleaner

Leave a Message
Product Description

Description:

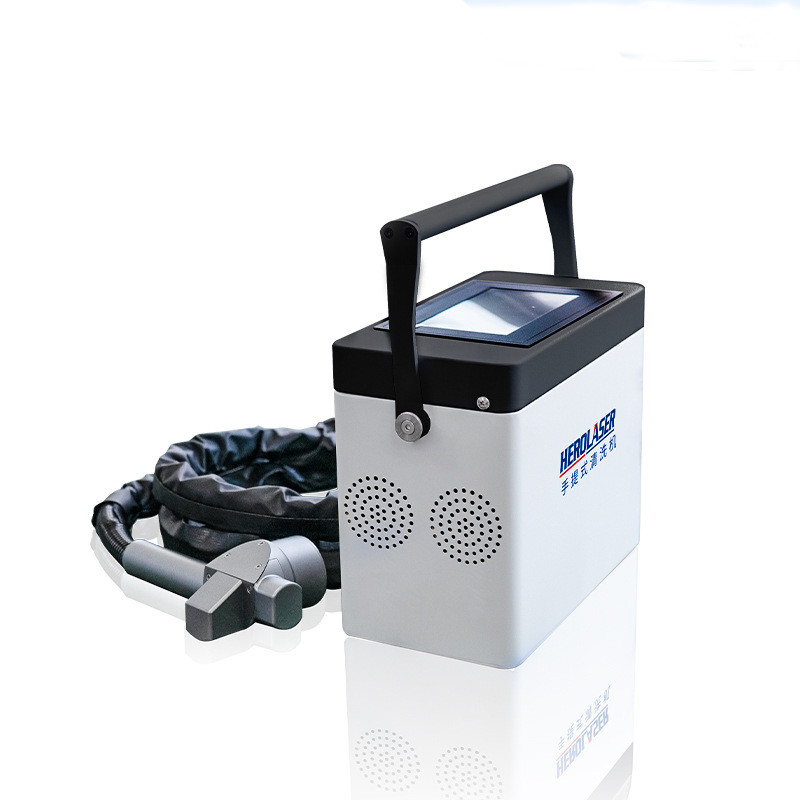

Handheld Laser Cleaning Machine

Laser cleaning machine is the latest high-tech product. Easy to install, operate, easy to achieving automation. Plug in power,turn on and start cleaning - without chemicals, media, dust, water.

It support cleaning rust, paint, oil pollution,oxide layer,sufface attachemnt , etc.

Auto focus, can clean curved surface, gentle cleaning surface. Cleaningresin, oil stain, rust, coating materials, paints on workpiece surface.

Detail Photos
Portable Laser Cleaner Paint Removal Fiber Laser Cleaning Machine 0

Product Parameters

Model ML-MF100I-LC ML-MF200I-LC
Laser Power 100W 200W
Cooling Way Air Cooling Water Cooling
Laser Wavelength 1064nm
Power Supply AC 220-380V / 50 Hz
Maximum KVA 500W 2200W
Fiber Length 3-7m 10-15m
Dimension 460x285x450mm 1400X860X1600 mm
Focal length 210mm
Focal depth 2mm 5mm
Handheld Laser Head Weight 1.5kg
Working Temperature The service life of the laser is long at constant temperature of 5-40 ° C (normally at constant temperature of 25 ° C)
Pulse width 20-50k ns
Scan Width 10mm-80mm (customizable additional price)
Laser frequency 20-50k HZ
Laser source type Fiber laser source
Options
Portable/
Handheld
Handheld/
Automation/
Robotic system



Handheld Laser Cleaning Machine Cleaning Data:

(This data is for reference only, please refer to the actual data of the proofing; 1000W laser cleaning equipment can be adjusted to 500W.)

Rust Removal 200W 500W 1000W
30μm 12m²/hour 15m²/hour 19m²/hour
50μm 10.8m²/hour 13.5m²/hour 17.5m²/hour
80μm 8.5m²/hour 11.8m²/hour 16m²/hour
100μm 6m²/hour 8.5m²/hour 14m²/hour





Our Advantages



1. First high power fiber laser cleaning machine in China.
2. Non-contact cleaning, no damage to workpiece
3.Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
4. No need chemical detergent, no consumable. Safe & environment-friendly.
5. Easy to operate ,Either portable or equipped with robot for automatic cleaning.
6. High cleaning efficiency, time-saving.
7. Stable laser cleaning system, free maintenance.


Comparison with traditional clean methods:



Comparision Laser Cleaning Chemical Cleaning Mechanical Grinding Dry ice cleaning
Washing Method non-contact cleaning contact cleaning Abrasive contact cleaning non-contact cleaning
Harm to base material None Yes Yes None
Washing Efficiency High Low Low Mid.
Consumable Power Chemical Detergent Abrasive paper, grinder, abrasive stone Dry Ice
Washing result Very good, very clear Medium, uneven Medium, uneven Good, uneven
Precision Washing Accuracy controllable. High precision Uncontrollable, low precision. Uncontrollable, medium precision. Uncontrollable, poor precision.
Safety/Environment No pollution Chemical pollution Dust pollution

No pollution
Operation Easy to operate, portable or automation optional. Complicated process, higher technical requirement of the operator. Pollution prevention measures required. Need more time & manpower. Pollution prevention measures required. Easy to operate, portable or automatic.
Investment High investment on machine. But no consumable, low maintenance cost Low investment on machine. But expensive consumables Medium investment on machine. High man-power cost. Medium investment on machine. High consumable cost.

Portable Laser Cleaner Paint Removal Fiber Laser Cleaning Machine 1

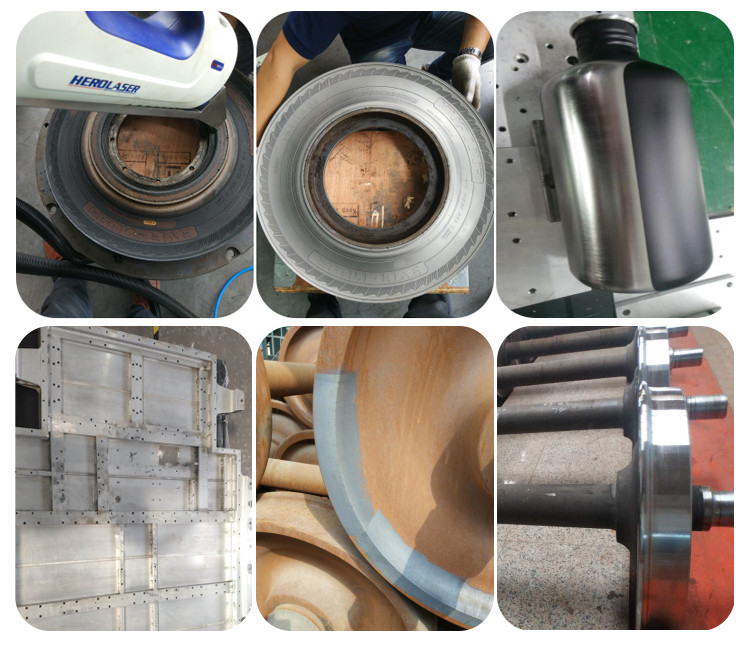

Applications:

1.Metal surface rust removal
2.Paint cleaning
3.Oil stain, contaminant cleaning
4.Coating surface cleaning
5.Welding/Coating surface pre-treatment.
6.Stone figure surface dust & attachment cleaning.
7.Plastic mould residues cleaning



Portable Laser Cleaner Paint Removal Fiber Laser Cleaning Machine 2Portable Laser Cleaner Paint Removal Fiber Laser Cleaning Machine 3

                           Petrochemical Industry                                                                                       Mould



Portable Laser Cleaner Paint Removal Fiber Laser Cleaning Machine 4 Portable Laser Cleaner Paint Removal Fiber Laser Cleaning Machine 5

                                       Machining                                                                                        Automotive



After Sales Service



1) 2 year guarantee for laser source(people damaged are charged)
2) Full technical support / by e-mail, call and video
3) Spare parts supply.
4) Free online training installation and operation
5 12 hours quick feedback & after-sales services
6) ODM/OEM service



FAQ



1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, L/C, CAD, OA, Trade Insurance, Alibabapay.

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.


6. Can I go to the factory to test the machine before shipment?
Sure you can.


7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8.
How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
